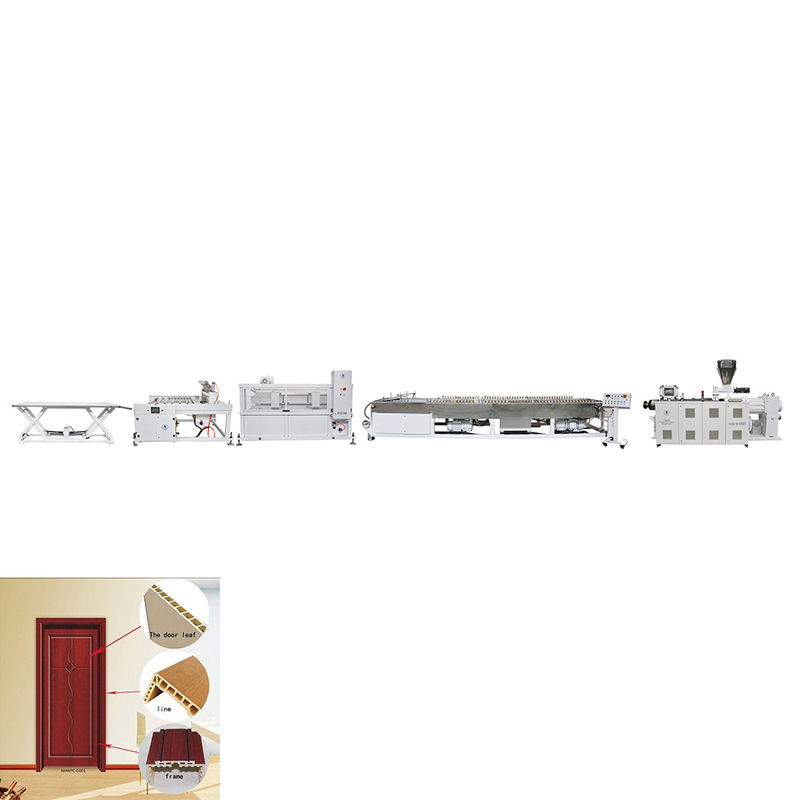

WPC Door Board Extrusion Machine / WPC Door Production Line
WPC Door Board Extrusion Machine / WPC Door Production Line HYPET Unique Advantages
a.HYPET owns wood-plastic door factory, which has accumulated rich experience and can be provided free of charge.
b. Can provide formula technology, wood-plastic door design and manufacturing technology, door cover design and manufacturing technology, etc.
c. Equipped with HYPET special function extruder, high output, 12 tons/day
d. Optional hot stamping, laminating, transfer and other functions,
e. Siemens PLC control system, equipped with HYPET self-developed software, improves operation efficiency and reduces production costs.
WPC Door Board Extrusion Machine / WPC Door Production Line Configuration list
Note: This table as attached file which is for selection of the configuration on the whole line
| SN |
Items |
Choosing configuration |
Other option |
| 1 |
Production control system |
PLC is for option |
Digital control system |
| 2 |
Cooling system of the main control electric cabinet |
Fan cooling |
Air conditioner for option |
| 3 |
Main motor |
AC motor with famous inverter |
DC is for option |
| 4 |
Pressure sensor |
HYPET individual temperature and pressure control in two parts |
Dynisco is for option |
| 5 |
Core thermoregulation control |
internal closed loop heat balancing system. |
External heat control option |
| 6 |
Material of screw & barrel type |
Nitro Alloy with bi-metal type high level |
Economical standard option |
| 7 |
Quantitative feeding system’s mixing function |
Standard dosing device in twin screw type. |
Mixing device option |
WPC Door Board Extrusion Machine / WPC Door Production Line Condition of use
1. WPC Door Board Extrusion Machine / WPC Door Production Line Technical features of whole line
| SN |
Specification |
Description |
Remark |
| 1 |
Suitable material |
PVC powder + wood powder + CaCo3 |
|
| 2 |
Product size range |
700mm-1000mm |
|
| 4 |
Max. output |
400-600kg/h |
|
| 5 |
Test and accept |
Based on HYPET standard formula. |
|
| 6 |
Center height |
1,100mm |
|
| 7 |
Whole line size (L x W x H) |
23,000 x 1,800 x 2,200mm |
|
2. WPC Door Board Extrusion Machine / WPC Door Production Line Circumstances condition
| SN |
Condition |
Specification |
Description |
| 1 |
Natural
circumstance
condition
|
Working place |
Indoor use |
| Power source |
No dangerous area |
| Humidity |
55%~85% no condensation |
| Temperature |
0~40 ℃ |
| 2 |
Electricity source
|
Installation capacity |
200 kW |
| Power supply |
3P+N+PE |
| Voltage/Frequency |
380V/50Hz other can be option |
| 3 |
Cooling water |
Temperature |
≤15 ℃ |
| Water pressure |
≥0.3MPa |
| Flow |
~15 m3/h |
| 4 |
Air condition |
Compressor air pressure |
≥0.6MPa |
| Flow |
~0.9 m3/min |
WPC Door Board Extrusion Machine / WPC Door Production Line Terms of payment
1) T/T and L/C (irrevocable, at sight) both are acceptable.
2) 35% of the total contract value should be paid in advance, balance 65% of the total value is to be paid before shipping at the Seller’s factory.
WPC Door Board Extrusion Machine / WPC Door Production Line Time of delivery
1) When the contract becomes valid, the machine should be delivered within 45 days since receipt of the advance payment. And the equipment will be in normal operation after debugging within two weeks after arrival.
2) During production, provided that the Buyer requests to modify the specification of the order, the Buyer shall notify the Seller of this modification in written form. Upon receipt of the notice, the Seller will quote to the Buyer the cost of this modification and notify the Buyer of any possible delay due to this modification.
