Name: PLC automatical control double speed big size mixer famous inverter big size mixer machine 1000/3500L for Plastic gra
Brand: Shenzhen HYPET Co., Ltd.
SKU: 1000/3500 hot cold mixer
Price: 43000 USD
Availability: InStock

Home > products > Auxiliary Machine and Parts >

PLC automatical control double speed big size mixer famous inverter big size mixer machine 1000/3500L for Plastic gra

1000/3500L big size mixer

PLC big size mixer

famous inverter big size mixer

Place of Origin:

China

Brand Name:

Hypet

Certification:

ISO9001,CE

Model Number:

1000/3500 hot cold mixer

Request A Quote

PLC automatical control double speed big size mixer famous inverter big size mixer machine 1000/3500L for Plastic gra

Product Details

Motor Power:

160KW

Cooling Way:

Water Cooling

Structure:

Horizontal

Max Output:

1500-1700 Kg/h (Depend On Formulation)

Key Parts Warranty:

1year

Engineer Installation Service:

Yes

Highlight:

1000/3500L big size mixer

PLC big size mixer

famous inverter big size mixer

Payment & Shipping Terms

Minimum Order Quantity

1set

Price

USD 43000/set

Packaging Details

Standard Package for sea shipment

Delivery Time

35~45days

Payment Terms

L/C, T/T

Supply Ability

50set/month

China Air compressor BLT-10A in both piston type and screw type for sale

Get Best Price

SRL Vertical PVC mixing hot/cold high speed mixer maching 300/600L for PVC product and high filler pellets

Get Best Price

Air compressor BLT-40A for industrial factory using from China

Get Best Price

New Model Air compressor BLT-30A in both piston type and screw type for industrial factory

Get Best Price

+8615002772815

ryan@hypet.com.cn

+86-755-25851030

Contact Now

Product Description

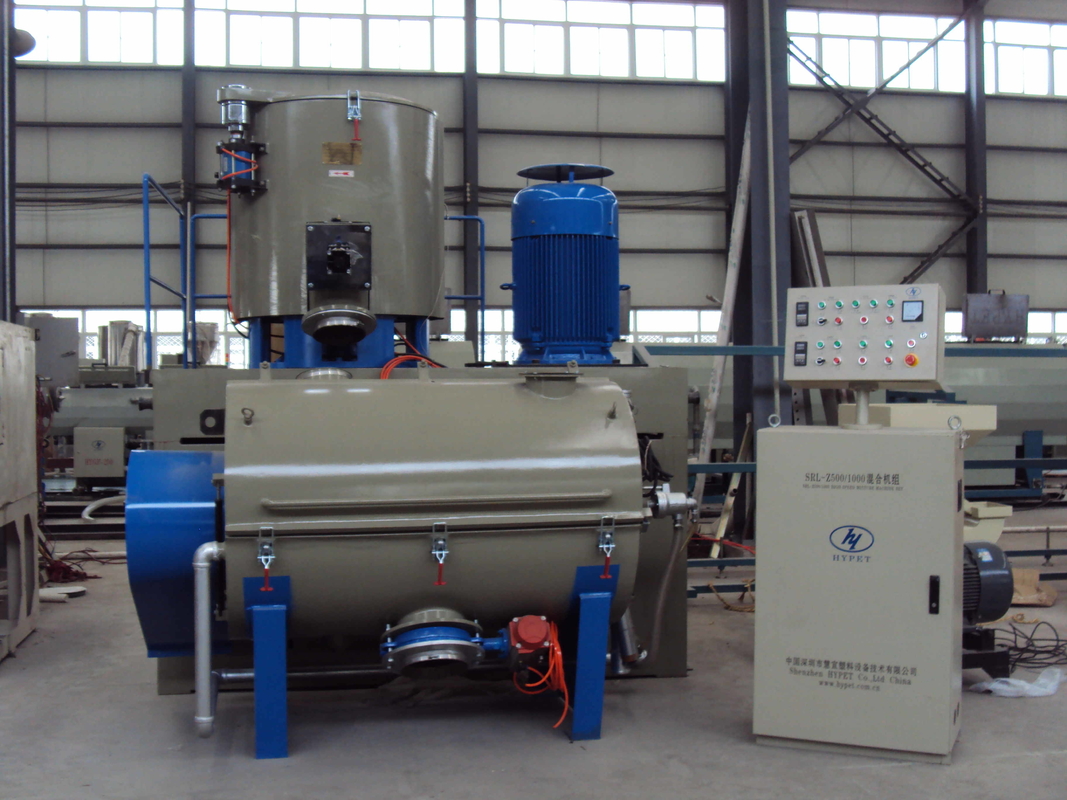

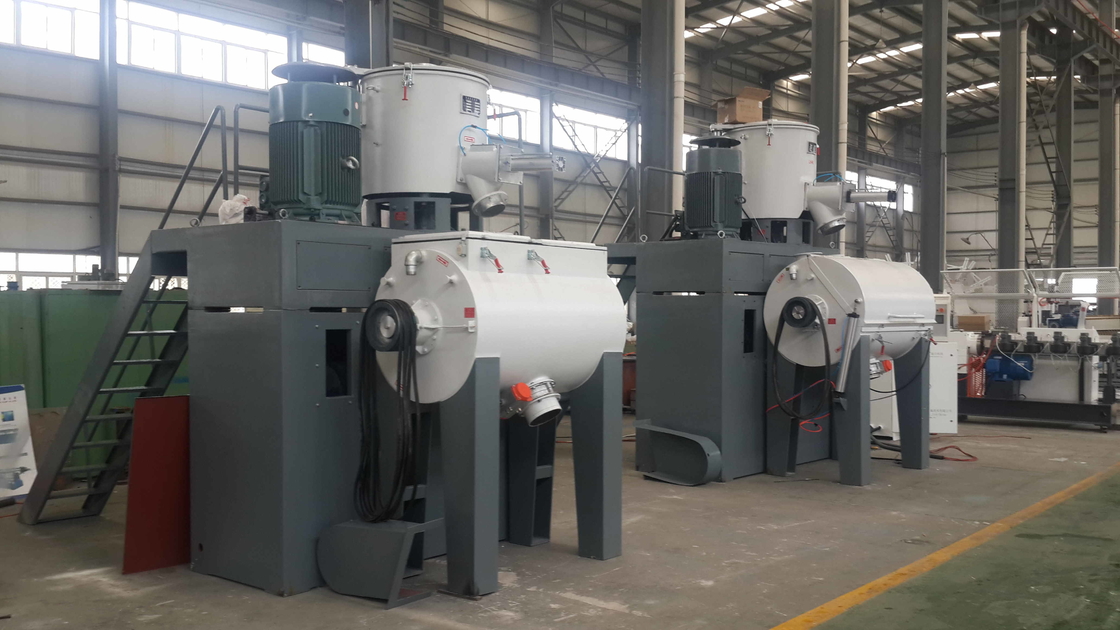

1.1000/3500 hot cold mixer
PLC automatical control double speed big size mixer famous inverter big size mixer machine 1000/3500L for Plastic gra 0

PLC automatical control double speed big size mixer famous inverter big size mixer machine 1000/3500L for Plastic gra 1

PLC automatical control double speed big size mixer famous inverter big size mixer machine 1000/3500L for Plastic gra 2

PLC automatical control double speed big size mixer famous inverter big size mixer machine 1000/3500L for Plastic gra 3

2.Speciality of HYPET 1000/3500 hot cold mixer

SN	Speciality
1	For a variety of plastic ingredients, mixing, drying, coloring and other processes, it’s the ideal choice for profiles and pipe manufacturers.
2	Cold machine with horizontal structure, with cooling area, speed, more uniform characteristics;
3	The lid to take double-sealed, open the lid using pneumatic mode;
4	Vane, pulley, etc. are through the static, dynamic balance testing machine special treatment.
5	It can be used for mixing raw PVC material with additives, it consist of hot mixer and cold mixer

3.Commercial items

SN	Item	Quantity	Unit Price/USD Total Price/USD
1	1000/3500 hot cold mixer	1	43000	43000

			Total in EXW	43000
	For option

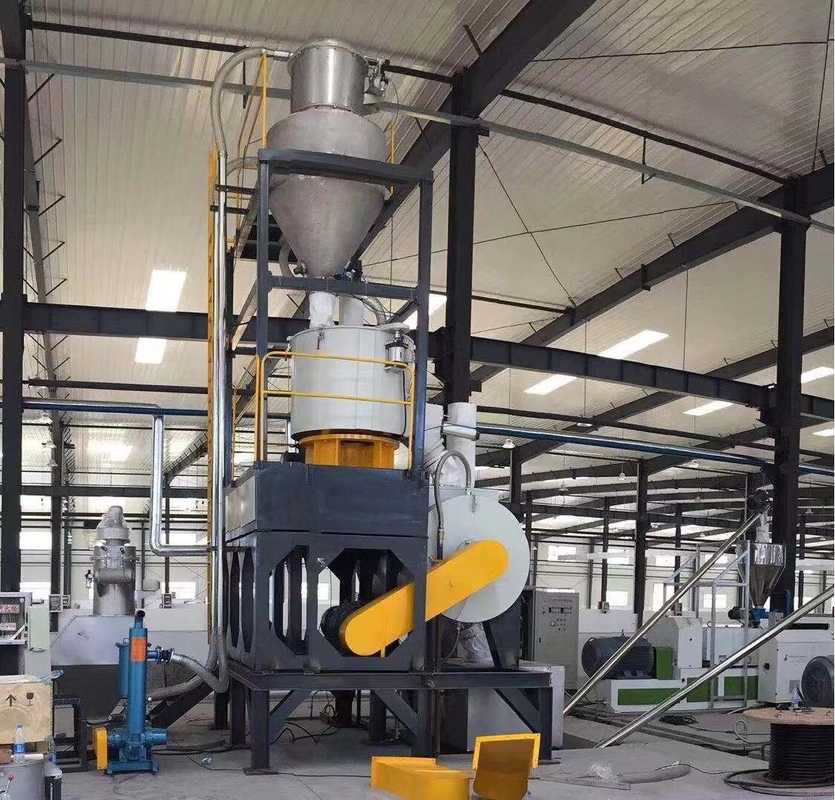

1	Raw material vacuum auto loader system for all mixer Including raw material station, and vacuum auto loader device	1	8500	8500
2	Auto-loader in screw type 6 m long	1	780	780
3	Material silo in 2.5 tons	1	2400	2400
4	Vacuum auto feeder to the extruder	1	7800	7800

4.Main Specification of the Machine

SN	Type	Specification	Description
1	Model	1000/3500
2	Structure	Horizontal
3	Hot mixing tank	General capacity	1000L
		Effective capacity	750L
		Feeding cappacity	380kg/batch
		Output	1500-1700 kg/h (Depend on formulation)
		Motor Power	160kw
		Mixing time	11-13 min/batch
		Wall thickness	8-12mm
4	Cold mixing tank	General capacity	3500L
		Effective capacity	2240L
		Motor Power	37kw
		mixer structure	Horizontal
		cooling way	Water cooling
		cooling time	8-10min
		wall thickness	8-12mm
5	Packing information	with inverter Delta	Yes
		weight kg	8000 kg
		Dimension	4247 x 3900 x 3825 mm

5.Cooperative Brands:

6.Exhibition:
