Fan Cooling Type Industrial Water Chiller HYAC-8AD With High Quality

Name: Fan Cooling Type Industrial Water Chiller HYAC-8AD With High Quality
Brand: Shenzhen HYPET Co., Ltd.
SKU: HYAC-8AD Water Chiller
Price: 3200 USD
Availability: InStock

Brand Name:	Hypet
Model Number:	HYAC-8AD Water Chiller
MOQ:	1set
Price:	USD 3200/set
Delivery Time:	35~45days
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001,CE

Key Parts Warranty:

1year

Engineer Installation Service:

Yes

Cooling Method:

Fan Cooling

Rotating Speed:

17595 R/min

Power Supply:

380V/3P/50Hz

Max Power Consumption:

7.65 Kw

Packaging Details:

Standard Package for sea shipment

Supply Ability:

50set/month

Highlight:

Industrial Water Chiller

Fan cooling type Water Chiller

HYAC-8AD Water Chiller

Product Description

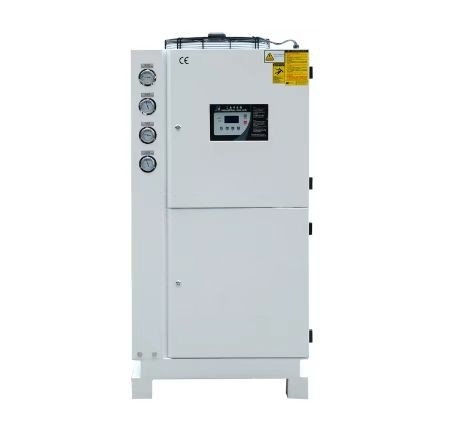

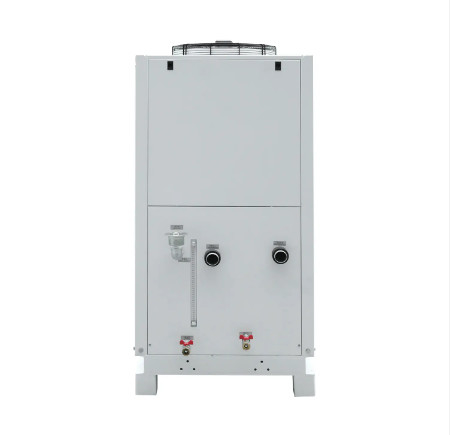

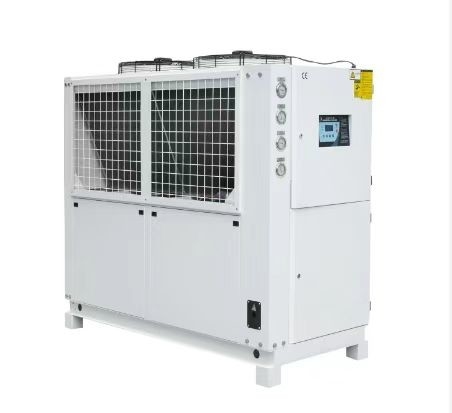

1. HYAC-8AD Water Chiller

Fan Cooling Type Industrial Water Chiller HYAC-8AD With High Quality 0
2.HYPET Special features

1). This machine selects scroll type fully hermetic compressor and electronic control element, equipped with condenser and evaporator made of high efficiency and high quality copper tube for heat exchange;
2). Equipped with all kinds of safety protection devices, stable performance, low noise, long service life, simple operation; LCD display man-machine interface, easy to operate,operation status at a glance;
3). The model has a single compressor or multiple compressor combined refrigeration system. The compressor can automatically rotate according to the load change, balance the running hours of each compressor, to achieve the effect of saving energy consumption and extending the service life of the chiller. Easy energy regulation, more energy saving at partial load;
4). The machine shell box type structure, beautiful appearance, compact structure, can check the running status at any time; The machine can come with water tank and circulating water pump according to the cooling capacity, no need cooling tower and cooling water pump, easy to install and maintain.

3.Commercial items

SN	Item	Quantity	Unit Price/USD Total Price/USD
1	Industrial Water Chiller HYAC-8AD	1	3200	3200

			Total in EXW

4.Main Specification of the Machine

Item			Specification
Model			HYAC-8AD
Nominal Cooling Capacity	7 ℃	kcal/h	17595
	7 ℃	kw	20.46
	12 ℃	kcal/h	21328
	12 ℃	kw	24.8
Max Power Consumption		kw	7.65
Power Source			3PH 380-415V 50HZ/60HZ
Refrigerant	Type		R22(R407C/R410A/R134A/R404A)
Refrigerant	control		Thermostatic expansion valve
Compressor	Type		Hermetic Scroll
Compressor	Power	kw	3.3 × 2
Condenser	Type		Efficient finned copper tube+high air volume low noise external rotor fan
	Air Volume		9000
	Fan Motor	kw	0.25 × 2
Evaporator	Type		Shell and tube+SS tank or SS coil in SS tank
	Coolant Flow	m³/h	3.52
	Tank Volume	liter	120
	Inlet and Outlet	inch	2
Water pump	Power	kw	0.55
	Flow	m³/h	4
	Head	m	20
Unit Protection Modules			Motor Overload, High&Low Pressure, Chilled Water Over Temperature, Flow switch, Tank Level switch, phase protection, anti-freezing protection
Dimension	Length	mm	1430
	Width	mm	700
	Height	mm	1500
Weight		kg	265
