Pvc Plastic Pelletizing Line / Waste Plastic Recycling Machine

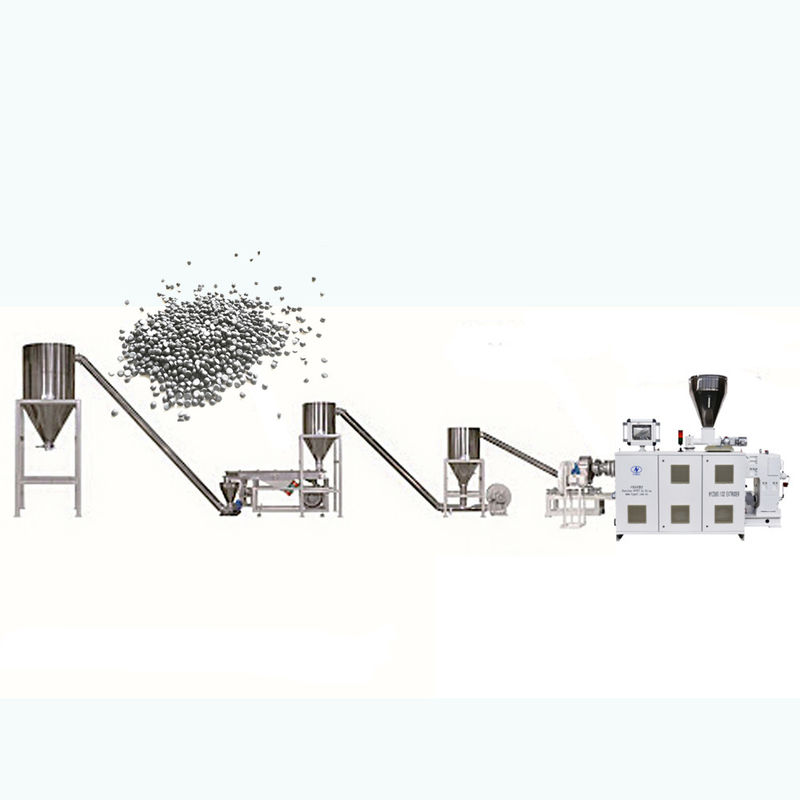

Pvc Plastic Pelletizing Line / Waste Plastic Recycling Machine Production Line Composition
- Auto loader -
- HYZS65/132 conic twin screw extruder
- Die with cutter
- Spiral separating hopper system
- Vibrating screen device
Pvc Plastic Pelletizing Line / Waste Plastic Recycling Machine HYPET unique advantages of conical twin screw extruder
Pvc Plastic Pelletizing Line / Waste Plastic Recycling Machine Except the same features with other supplier.
- High precision with harden, ground gear surface gear box,
- Reliable & efficient vacuum air exhaust system
- Advanced electric control system with imported famous components to achieve automatic control for the entire line
- Optimized design barrier screw suitable for many kinds of material and products
- High performance temperature control system to ensure stable production at different speeds
- Durable and strong drive and control system to guarantee stable extrusion output and excellent production quality
- The screw are designed for PVC products without black lines
- Double metal barrel are option for longer working life at little more cost only
Pvc Plastic Pelletizing Line / Waste Plastic Recycling Machine Condition of use
1. Pvc Plastic Pelletizing Line / Waste Plastic Recycling Machine Technical features of whole line
| SN |
Specification |
Description |
Remark |
| 1 |
Suitable material |
PVC powder |
|
| 2 |
Max. output |
450~550kg/h |
|
| 3 |
Test and accept |
Based on HYPET standard formula. |
|
| 4 |
Air cooling system |
3 sets |
|
| 5 |
Center height |
1000mm-1100mm |
|
| 6 |
Whole line size (L x W x H) |
2750 x 1240 x 2520mm |
|
| 7 |
Operation direction |
From right to left |
|
| 8 |
Color of equipment |
HYPET white color |
|
| 9 |
Control of whole production |
Refer to the “configuration list”. |
|
| Note |
Extrusion capacity will be changed according the processing material and working conditions |
2. Pvc Plastic Pelletizing Line / Waste Plastic Recycling Machine Circumstances condition
| SN |
Condition |
Specification |
Description |
| 1 |
Natural
circumstance
condition
|
Working place |
Indoor use |
| Humidity |
85% no condensation |
| Temperature |
0~40 ℃ |
| 2 |
Electricity
source
|
Installation capacity |
|
| Power supply |
3P+N+PE |
| Voltage/Frequency |
380V/50Hz other can be option |
| 3 |
Cooling water |
Temperature |
≤15 ℃ |
| Water pressure |
≥0.3MPa |
| Flow |
~15 m3/h |
| 4 |
Air condition |
Compressor air pressure |
≥0.6MPa |
| Flow |
~0.9 m3/min |
Pvc Plastic Pelletizing Line / Waste Plastic Recycling Machine Terms & conditions
1. Pvc Plastic Pelletizing Line / Waste Plastic Recycling Machine Training and services
1) Instruction of field installation
2) Equipment field debugging and trial run if required by the buyer according to the rule.
3) Training on field operation and maintenance for customer's personnel.
4) Provide technical consultation service on long-term basis.
2. Pvc Plastic Pelletizing Line / Waste Plastic Recycling Machine Installation and debugging
When the machine arrives at site, the customer should install it on the appropriate position according to the specifications provided by the supplier; and then the supplier should send its engineers to the site if requirement approved,in order to instruct the customer about trial run and debugging. The customer should provide necessary conditions for trial run and provide materials for trial run, and should decide the processing conditions in trial run with consideration of the supplier's opinions.
1) The price covers the pre-commissioning of the machinery before shipment at Seller's site. The Seller is obliged to test the performance of machinery.
2) The Buyer is obliged to provide suitable space, tools and manpower for the commissioning of the order.
3) This Price does not included commission and installation in buyer’s factory.
