Name: Counter Rotating Parallel Twin Screw Extruder Plastic Extrusion Machine HYPS92/28
Brand: Shenzhen HYPET Co., Ltd.
SKU: Counter Rotating Parallel Twin Screw Extruder Plastic Extrusion MachineHYPS90/28
Price: 42,000.00 USD
Availability: InStock

Home > products > Plastic Extruder Machine >

Counter Rotating Parallel Twin Screw Extruder Plastic Extrusion Machine HYPS92/28

Dia90mm Parallel Twin Screw Extruder

Siemens PLC Parallel Twin Screw Extruder

Dia90mm counter rotating twin screw extruder

Place of Origin:

China

Brand Name:

SHENZHEN HYPET

Certification:

CE, ISO

Model Number:

Counter Rotating Parallel Twin Screw Extruder Plastic Extrusion MachineHYPS90/28

Chat Now

Product Details

Name:

Counter Rotating Parallel Twin Screw Extruder Plastic Extrusion MachineHYPS92/28

PLC:

Siemens PLC

Inverter:

ABB Heavy Type

Motor:

Siemens 75kw

Output:

500kg/h-550kg/h

Contactor:

Siemens

Highlight:

Dia90mm Parallel Twin Screw Extruder

Siemens PLC Parallel Twin Screw Extruder

Dia90mm counter rotating twin screw extruder

Payment & Shipping Terms

Minimum Order Quantity

Counter Rotating Parallel Twin Screw Extruder Plastic Extrusion Machine 1 set

Price

USD39500/set - USD44500/set

Packaging Details

Counter Rotating Parallel Twin Screw Extruder Plastic Extrusion Machine LCL woden case, FCL with film and rope fixing

Delivery Time

Counter Rotating Parallel Twin Screw Extruder Plastic Extrusion Machine 20 - 45 work days

Payment Terms

L/C, T/T, Western Union, D/P

Supply Ability

Counter Rotating Parallel Twin Screw Extruder Plastic Extrusion Machine 250sets / year

ryan@hypet.com.cn

+86-755-25851030

Chat Now

Product Description

Counter Rotating Parallel Twin Screw Extruder Plastic Extrusion Machine HYPS92/28

Counter Rotating Parallel Twin Screw Extruder Plastic Extrusion Machine Configuration list

Items	Choosing configuration	Other option
Production control system	PLC control system	Digital is for option
Cooling system of the main control electric cabinet	Fan cooling	Air conditioner for option
Main motor	AC motor with famous inverter	DC is for option
Pressure sensor	HYPET individual temperature and pressure control in two parts	Dynisco is for option
Core thermoregulation control	internal closed loop heat balancing system.	External heat control option
Material of screw & barrel type	Nitro Alloy with bi-metal type high level	Economical standard option
Quantitative feeding system’s mixing function	Standard dosing device in twin screw type.	Mixing device option

Counter Rotating Parallel Twin Screw Extruder Plastic Extrusion Machine Main specification:

Parts name	Specification	Description
Extruder	Extruder model	HYPS-92/28 Parallel twin screw
	Output	500-550kg/h
	Center height	1,100mm
	Weight	4,700kg
Screw	Diameter	Ø90mm
	Material	38CrMoAlA + special alloy
	Finish	Nitrogen-filled (0.50~0.70mm depth) and polish
	Rotate speed	45 r/min
	Core of the screw	Auto control for temperature
Barrel	Material	38CrMoAlA with bi-metal type
	Inside finish	Nitrogen-filled (0.50~0.70mm depth) and rubbing
	Heating control area	5 areas
	Heating way	Copper cooling fins with ceramic heater
	Heating power	40.5kW
	Cooling system	Low-noisy barrel cooling fan
	Cooling power	0.37 kW x 2 sets+0.5kWx2 sets
Gear box	Housing material	Ductile iron QT-500
	Gear material	20CrMnTi
	Axis material	40Cr
Dosing feeder	Supplying material motor	1.5kW
	Speed range	1-50 RPM
	Inverter	ABB
Vacuum degas with selector	Vacuum degree	-0.004Mpa
Vacuum degas with selector	Motor power	2.2kW
Driving motor	AC motor power	75kW
Driving motor	AC inverter controller	ABB
Electrical Control system	Detachable control panel	Digital display, adjusting knobs
	Extra temperature zone for die head	12 zones
	Components brand	Siemens, RKC, ABB, etc.
	Note: PLC computer control system can be optional.

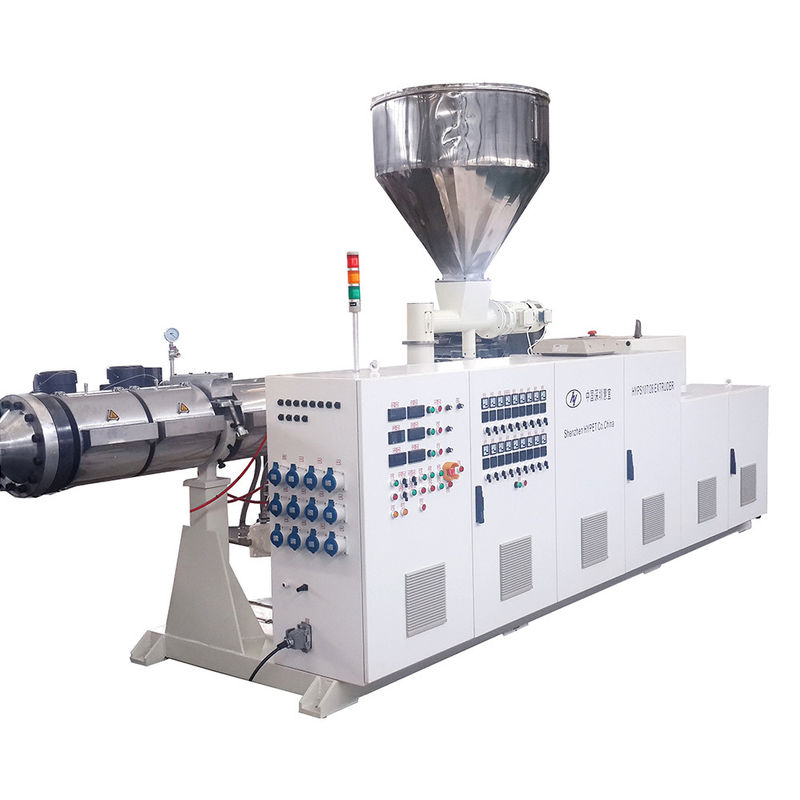

Counter Rotating Parallel Twin Screw Extruder Plastic Extrusion Machine Picture

Counter Rotating Parallel Twin Screw Extruder Plastic Extrusion Machine HYPS92/28 0

Counter Rotating Parallel Twin Screw Extruder Plastic Extrusion Machine Terms & conditions

1) T/T and L/C (irrevocable, at sight) both are acceptable.

2) 35% of the total contract value should be paid in advance, balance 65% of the total value is to be paid before shipping at the Seller’s factory.
