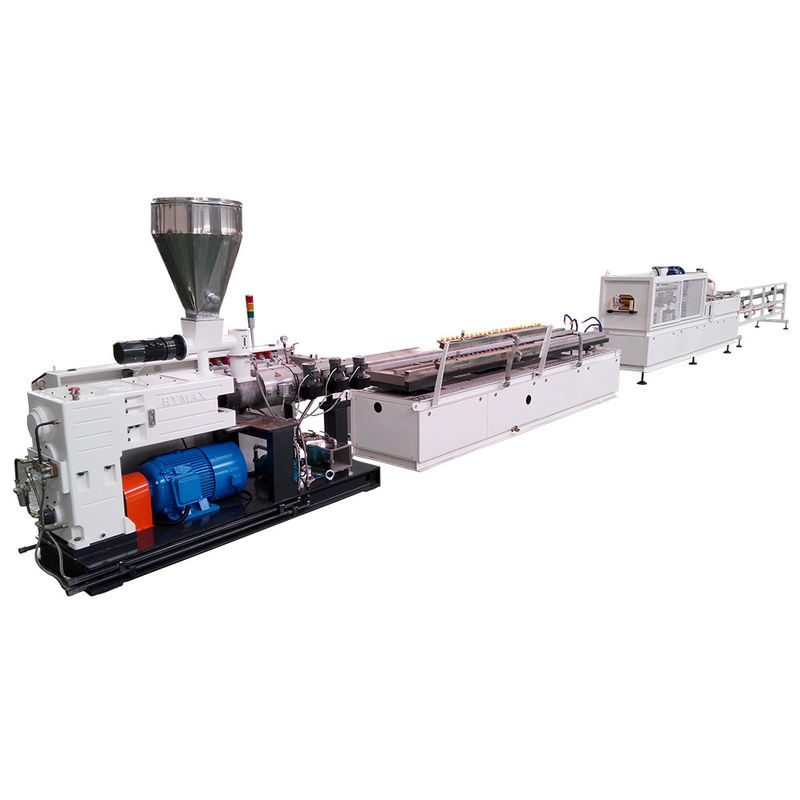

WPC Profile Extrusion Machine / WPC Decorative Ceiling Production Line
WPC Profile Extrusion Machine / WPC Decorative Ceiling Production Line Production line composition
- Auto loader - Conic twin screw extruder(different models for optional) - Mold - Calibrating table - Haul off unit - Cutter - Stacker.
WPC Profile Extrusion Machine / WPC Decorative Ceiling Production Line HYPET Unique Advantages
a. HYPET conical twin, parallel twin and single screw extruders can be selected to meet different products;
b. You can choose special functions such as co-extrusion, laminating, punching, precise length cutting, stacking and packaging, etc;
c. The vacuum system of the setting table is stable, effecient cooling, and the operation is convenient;
d. Servo or frequency conversion can be selected for traction and cutting;
e. Siemens PLC control system, equipped with world-famous brand electronic components.
WPC Profile Extrusion Machine / WPC Decorative Ceiling Production Line Configuration list
Note: This table as attached file which is for selection of the configuration on the whole line
| SN |
Items |
Choosing configuration |
| 1 |
Production control system |
PLC control system, Siemens |
| 2 |
Cooling system of the main control electric cabinet |
Air conditioner cooling cabinet |
| 3 |
Main motor |
AC motor with famous inverter |
| 4 |
Pressure sensor |
HYPET individual temperature and pressure control in two parts |
| 5 |
Core thermoregulation control |
Internal closed loop heat balancing system. |
| 6 |
Material of screw & barrel type |
Nitro Alloy with bi-metal in two parts |
| 7 |
Quantitative feeding system’s mixing function |
Twin screw with mixing device option |
| 8 |
Cutter |
Dustless with blade type in new technology |
WPC Profile Extrusion Machine / WPC Decorative Ceiling Production Line Condition of use
| SN |
Specification |
Description |
| 1 |
Suitable material |
PVC mixed powder |
| 2 |
Max product size |
1000mm |
| 3 |
Production speed |
1.2-12m/min |
| 4 |
Max. output |
80-400kg/h |
| 5 |
Test and accept |
Based on HYPET standard formula. |
| 6 |
Center height |
1,000mm |
| 7 |
Whole line size (L x W x H) |
24,000 x 1,800 x 2,200mm |
| 8 |
Operation direction |
From right to left |
| 9 |
Color of equipment |
HYPET white color |
| 10 |
Control of whole production |
Refer to the “configuration list”. |
| Note |
Extrusion capacity will be changed according the processing material and working conditions |
WPC Profile Extrusion Machine / WPC Decorative Ceiling Production Line Installation and debugging
When the machine arrives at site, the customer should install it on the appropriate position according to the specifications provided by the supplier; and then the supplier should send its engineers to the site if requirement approved,in order to instruct the customer about trial run and debugging. The customer should provide necessary conditions for trial run and provide materials for trial run, and should decide the processing conditions in trial run with consideration of the supplier's opinions.
1) The price covers the pre-commissioning of the machinery before shipment at Seller's site, the Seller is obliged to test the performance of machinery.
2) The Buyer is obliged to provide suitable space, tools and manpower for the commissioning of the order.
3) This Price does not included commission and installation in buyer’s factory.
WPC Profile Extrusion Machine / WPC Decorative Ceiling Production Line Guarantee clause
1) Guarantee is 1 year (excluding human factor and wearing parts).
2) Under proper working conditions, 12 months from the date of completion of commissioning at the buyer's site, and should be at the latest within 14 months from the issuing date of Bill of Lading.
