Name: PVC Pipe Extrusion Machine / PVC Pipe Production Line 315-630
Brand: Shenzhen HYPET Co., Ltd.
SKU: HF630
Price: 173000.00 USD
Availability: InStock

Home > products > Plastic Pipe Extrusion Line >

PVC Pipe Extrusion Machine / PVC Pipe Production Line 315-630

Dia 250mm PVC Pipe Extrusion Line

Dia 630mm PVC Pipe Extrusion Line

Dia 250mm pvc pipe maker machine

Place of Origin:

China

Brand Name:

SHENZHEN HYPET

Certification:

ISO, CE

Model Number:

HF630

Request A Quote

PVC Pipe Extrusion Machine / PVC Pipe Production Line 315-630

Product Details

Items:

PVC Pipe Extrusion Machine / PVC Pipe Production Line

Main Motor Power:

110kw

Range:

250-630

Screw:

Conic Twin 92/188

Extruder:

Twin Conic Screw Extruder ZS92

Capacity:

800kg/h

Control:

PLC Control System

Haul Off:

8claws

Highlight:

Dia 250mm PVC Pipe Extrusion Line

Dia 630mm PVC Pipe Extrusion Line

Dia 250mm pvc pipe maker machine

Payment & Shipping Terms

Minimum Order Quantity

PVC Pipe Extrusion Machine / PVC Pipe Production Line 1set

Price

Discussion

Packaging Details

PVC Pipe Extrusion Machine / PVC Pipe Production Line LCL wooden case, FCL with film and rope fixing

Delivery Time

PVC Pipe Extrusion Machine / PVC Pipe Production Line 30-50days

Payment Terms

L/C, T/T, Western Union,D/P, MoneyGram

Supply Ability

PVC Pipe Extrusion Machine / PVC Pipe Production Line 200 sets /year

20 - 63mm Corrugated Pipe Making Machine / Corrugated Pipe Machine / Corrugated Pipe Extrusion Machine

Get Best Price

Customizable HYPET Double Wall Corrugated Pipe Extrusion Line 200-600mm with Engineer Installation Service

Get Best Price

Video

PVC flexible soft tube transparent garden pipe 10-38mm extrusion making machine production line with SJ75/30 Extruder

Get Best Price

Video

10-38mm/0.5-2inch Fiber Braided PVC Pipe Machine Garden Hose Soft PVC Pipe Extrusion Line

Get Best Price

+8613823232106

xiang@hypet.com.cn

+86-755-25851030

Contact Now

Product Description

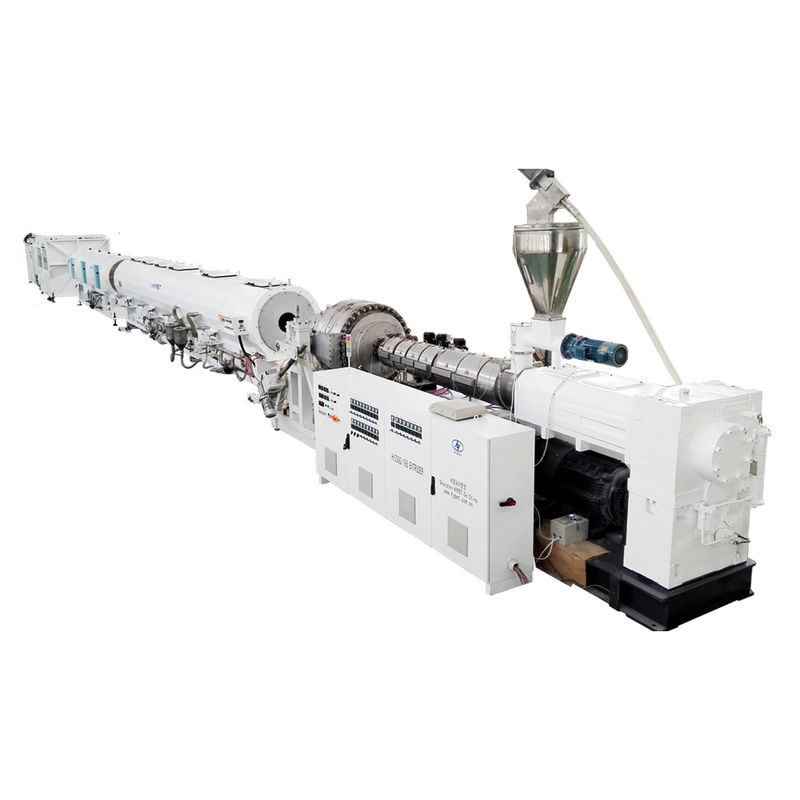

PVC Pipe Extrusion Machine / PVC Pipe Production Line

PVC Pipe Extrusion Machine / PVC Pipe Production Line Features:

Top quality machine with economic price.
HYPET has many years of experience in producing large pipe production lines
Optional Hypet's specially designed 95/188 extruder, output 900kg/h
The vacuum box is natural color, paint-free, high-quality, and high-precision control
Bimetallic barrel screw: with standard formula, the shelf life of the screw barrel is 3 years, and the shelf life of high calcium is 1 year.
Siemens PLC controls the entire production line, HYPET software, and high configuration

PVC Pipe Extrusion Machine / PVC Pipe Production Line Consists :

SN	Parts name	Quantity
1	HYZS92/188 conic twin screw extruder (High output )	1 set
2	Auto loader in spring type for the extruder	1 set
3	Die head in 3 pressure grade	1 set
4	Vacuum tank in 6m	1 set
5	Spray cooling tank in 6m	2 sets
6	Haul off with 6 claw type	1 set
7	Planetary cutter	1 set
8	Stacker	1 set

PVC Pipe Extrusion Machine / PVC Pipe Production Line Circumstances condition

SN	Condition	Specification	Description
1	Natural circumstance condition	Working place	Indoor use
		Power source	No dangerous area
		Humidity	55%~85% no condensation
		Temperature	0~40 ℃
2	Electricity source	Installation capacity	250kW
		Actual power consumption	28 kW
		Power supply	3P+N+PE
		Voltage/Frequency	380V/50Hz other can be option
3	Cooling water	Temperature	≤15 ℃
		Water pressure	≥0.3MPa
		Flow	~15 m³/h
4	Air condition	Compressor air pressure	≥0.6MPa
4	Air condition	Flow	~0.9 m³/mi

Note: HYPET remains the right to improve the technology of the line, if there’s any modification of the specification, customer will be not informed.
