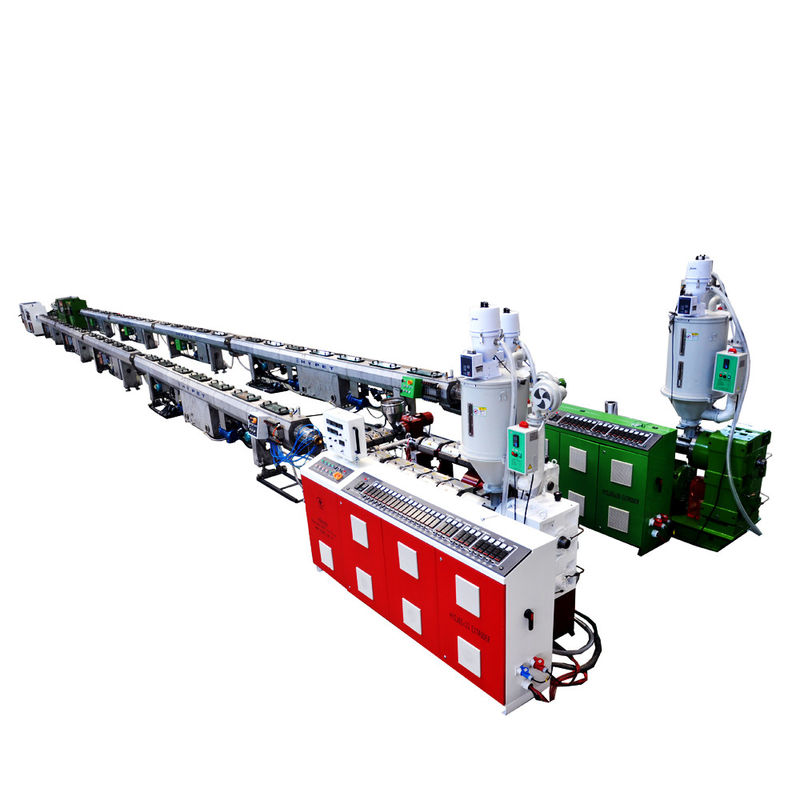

Name: PPR Pipe Extrusion Machine / PPR Pipe Production Line 20-63
Brand: Shenzhen HYPET Co., Ltd.
SKU: HF63
Price: 115,000.00 USD
Availability: InStock

Home > products > Plastic Pipe Extrusion Line >

PPR Pipe Extrusion Machine / PPR Pipe Production Line 20-63

OD63MM PPR Pipe Extrusion Line

OD20mm PPR Pipe Extrusion Line

OD63MM ppr pipe extrusion machine

Place of Origin:

China

Brand Name:

SHENZHEN HYPET

Certification:

ISO, CE

Model Number:

HF63

Request A Quote

PPR Pipe Extrusion Machine / PPR Pipe Production Line 20-63

Product Details

Items:

PPR Pipe Extrusion Machine / PPR Pipe Production Line 20-63

Power:

90kw

Die:

20- 63

Screw LD:

33:1

Extruder:

SJ75/33

Output:

200kg/h

Supply Power:

380V, 3phases

Main Motor:

Siemens

Highlight:

OD63MM PPR Pipe Extrusion Line

OD20mm PPR Pipe Extrusion Line

OD63MM ppr pipe extrusion machine

Payment & Shipping Terms

Minimum Order Quantity

PPR Pipe Extrusion Machine / PPR Pipe Production Line 20-63 1set

Price

Discussion

Packaging Details

PPR Pipe Extrusion Machine / PPR Pipe Production Line 20-63 LCL wooden case, FCL with film and rope fixing

Delivery Time

PPR Pipe Extrusion Machine / PPR Pipe Production Line 20-63 30-50days

Payment Terms

L/C, T/T, Western Union,D/P

Supply Ability

PPR Pipe Extrusion Machine / PPR Pipe Production Line 20-63 200 sets /year

20 - 63mm Corrugated Pipe Making Machine / Corrugated Pipe Machine / Corrugated Pipe Extrusion Machine

Get Best Price

Customizable HYPET Double Wall Corrugated Pipe Extrusion Line 200-600mm with Engineer Installation Service

Get Best Price

Video

PVC flexible soft tube transparent garden pipe 10-38mm extrusion making machine production line with SJ75/30 Extruder

Get Best Price

Video

10-38mm/0.5-2inch Fiber Braided PVC Pipe Machine Garden Hose Soft PVC Pipe Extrusion Line

Get Best Price

+8613823232106

xiang@hypet.com.cn

+86-755-25851030

Contact Now

Product Description

PPR Pipe Extrusion Machine / PPR Pipe Production Line 20-63

PPR Pipe Extrusion Machine / PPR Pipe Production Line 20-63 Special features:

HYPET high-effificiency single screw extruder, PPR output 200kg/h
9m vacuum box with natural color and paint-free automatic water temperature and water level control, equipped with 3 cooling boxes
Effificient and stable dust-free cutting system,
Siemens PLC control the whole production line, HYPET software, traction motor servo control, high confifiguration, stable and reliable

PPR Pipe Extrusion Machine / PPR Pipe Production Line 20-63 Consists of the full line:

SN	Parts name	Quantity
1	Single screw extruder HYSJ 75 / 33, 90kW motor power	1 set
2	Single screw extruder HYSJ 30 / 25, for color strip	1 set
3	Hot dryer HY-HD1000	1 set
4	Vacuum hopper loader HYAL500	1 set
5	Co-Extruder Die: G63, in 3 pressure grade	1 set
6	Vacuum tank in 9,000 mm	1 set
7	Cooling tank in 6,000 mm	3 sets
8	Haul off unit, high speed,1.9-16m/min, 2 claw type	1 set
9	Chipless cutter	1 set
10	Stacker	1 set

PPR Pipe Extrusion Machine / PPR Pipe Production Line 20-63 Circumstances condition

SN	Condition	Specification	Description
1	Natural circumstance condition	Working place	Indoor use
		Power source	No dangerous area
		Humidity	55%~85% no condensation
		Temperature	0~40 ℃
2	Electricity source	Installation capacity	160kW
		Actual power consumption	80kW
		Power supply	3P+N+PE
		Voltage/Frequency	380V/50Hz other can be option
3	Cooling water	Temperature	≤15 ℃
		Water pressure	≥0.3MPa
		Flow	~15 m³/h
4	Air condition	Compressor air pressure	≥0.6MPa
4	Air condition	Flow	~0.9 m³/min

PPR Pipe Extrusion Machine / PPR Pipe Production Line 20-63 Technical features of whole line

SN	Specification	Description	Remark
1	Suitable material	PPR granules
2	Pipe diameter range	Ø20-Ø63mm
3	Production speed	1.9 ~ 16 m/min
4	Max. output	200kg/h
5	Test and accept	Based on HYPET standard formula.
6	Center height	1,000mm
7	Whole line size (L x W x H)	21,000 x 1,200 x 2,450mm
8	Operation direction	From right to left
9	Color of equipment	HYPET white color
10	Control of whole production	Refer to the “configuration list”.
Note	Extrusion capacity will be changed according the processing material and working conditions

Note: HYPET remains the right to improve the technology of the line, if there’s any modification of the specification, customer will be not informed.
