Created with Pixso. PE PPR Double Pipe Extrusion Machine High Speed 16 - 32 MM Single Screw Extruder SJ90/33
  • Name
  • Name

PE PPR Double Pipe Extrusion Machine High Speed 16 - 32 MM Single Screw Extruder SJ90/33

Brand Name: SHENZHEN HYPET
Model Number: HF32x2
MOQ: 1set
Price: Discussion
Delivery Time: 30-50days
Payment Terms: L/C, T/T, Western Union,D/P
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
ISO, CE
Items:
PE PPR Double Pipe Extrusion Machine
Power:
200kw
Die:
16,20,25,32
Screw LD:
33:1
Extruder:
SJ90/33
Output:
320kg/h
Supply Power:
380V, 3phases
Main Motor:
110kw
Packaging Details:
PE PPR Double Pipe Extrusion Machine LCL wooden case, FCL with film and rope fixing
Supply Ability:
PE PPR Double Pipe Extrusion Machine 200 sets /year
Highlight:

PPR Double Pipe Extrusion Machine

,

PE Double Pipe Extrusion Machine

Product Description

PE PPR Double Pipe Extrusion Machine High Speed 16 - 32 MM Single Screw Extruder SJ90/33

PE PPR Double Pipe Extrusion Machine Special features:

  1. Focus on common size 20-32mm, output can reach up to 320kg/h
  2. The vacuum box is natural color, paint-free, high quality, high control precision
  3. Servo control system traction unit, wide speed range, stable and durable
  4. Effificient dust-free cutting device, Siemens PLC controls the entire production line, HYPET software, and high confifiguration

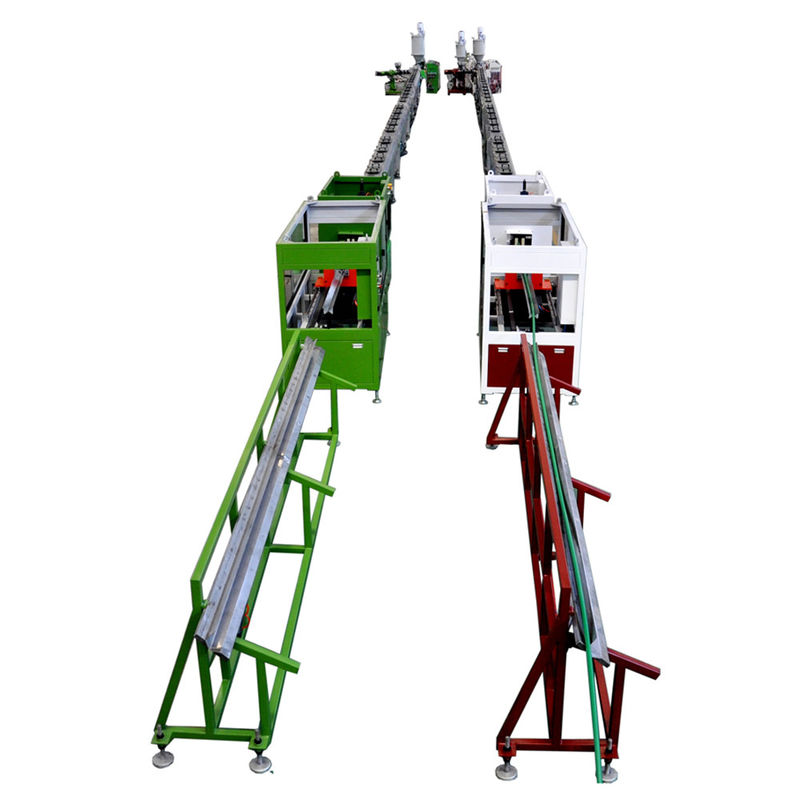

PE PPR Double Pipe Extrusion Machine Consists of the full line:





SN Parts name Quantity
1 Single screw extruder HYSJ 90 / 33 1 set
2 Single screw extruder HYSJ 30 / 25, for color strip 1 set
3 Hot dryer HY-HD1000 1 set
4 Vacuum hopper loader HYAL500 1 set
5 Co-Extruder Die: G32, for 20, 25, 32mm in 3 pressure grade, double high speed type 1 set
6 Vacuum tank in 9,000 mm 1 set
7 Cooling tank in 6,000 mm 3 sets
8 Haul off unit, 2 claw type, double station 1 set
9 Flying blade cutter 1 set
10 Stacker 1 set


























PE PPR Double Pipe Extrusion Machine Circumstances condition



SN Condition Specification Description
1

Natural

circumstance

condition

 Working place Indoor use
Power source No dangerous area
Humidity 55%~85% no condensation
Temperature 0~40 ℃
2

Electricity

source

 Installation capacity 200kW
Actual power consumption 90kW
Power supply 3P+N+PE
Voltage/Frequency 380V/50Hz other can be option
3 Cooling water Temperature ≤15 ℃
Water pressure ≥0.3MPa
Flow ~15 m3/h
4 Air condition Compressor air pressure ≥0.6MPa
Flow ~0.9 m3/min




















PE PPR Double Pipe Extrusion Machine Technical features of whole line

SN Specification Description Remark
1 Suitable material PPR granules
2 Pipe diameter range Ø16-Ø32mm
3 Production speed 3~ 30 m/min
4 Max. output 320kg/h
5 Test and accept Based on HYPET standard formula.
6 Center height 1,000mm
7 Whole line size (L x W x H) 45,000 x 1,400 x 2,300mm
8 Operation direction From right to left
9 Color of equipment HYPET white color
10 Control of whole production Refer to the “configuration list”.
Note Extrusion capacity will be changed according the processing material and working conditions
















Note: HYPET remains the right to improve the technology of the line, if there’s any modification of the specification, customer will be not informed.
