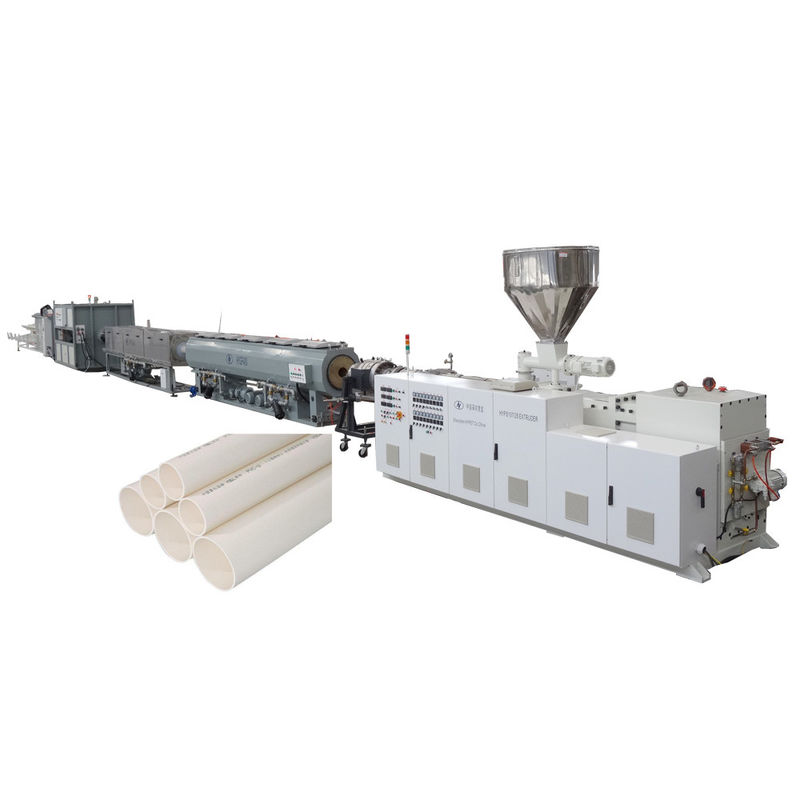

PVC Pipe Extrusion Line / PVC Pipe Making Machine 160

Brand Name:	SHENZHEN HYPET
Model Number:	HF160
MOQ:	PVC Pipe Extrusion Line / PVC Pipe Making Machine 1set
Price:	Discussion
Delivery Time:	PVC Pipe Extrusion Line / PVC Pipe Making Machine 30-50days
Payment Terms:	L/C, T/T, Western Union,D/P

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO, CE

Items:

PVC Pipe Extrusion Line / PVC Pipe Making Machine

Main Motor Power:

37kw

Die Size Range:

110-160

Screw:

65/132 With Bimetal

Extruder:

Twin Conic Screw Extruder 65/132

Capacity:

330kg/h

Control:

PLC Control System

Haul Off:

3claws

Packaging Details:

PVC Pipe Extrusion Line / PVC Pipe Making Machine LCL wooden case, FCL with film and rope fixing

Supply Ability:

PVC Pipe Extrusion Line / PVC Pipe Making Machine 200 sets /year

Highlight:

OD160mm PVC Pipe Extrusion Line

OD110mm PVC Pipe Extrusion Line

OD160mm pvc pipe production line

Product Description

PVC Pipe Extrusion Line / PVC Pipe Making Machine

PVC Pipe Extrusion Line / PVC Pipe Making Machine Features:

Optional 65/132 extruder output 320kg/h or 80/156 output 550kg/h
It can be used for high-quality drainage pipes and high-calcium pipes.
The vacuum box is natural color, paint-free, high-quality, and high-precision control
Siemens PLC controls the entire production line, HYPET software, and high configuration
Bimetallic barrel screw: with standard formula, the shelf life of the screw barrel is 3 years, and the shelf life of high calcium is 1 year.
High cost performance, high quality and lowest price.
Top quality machine with economic price.

PVC Pipe Extrusion Line / PVC Pipe Making Machine Consists :

SN	Parts name	Quantity
1	HYZS65/132 conic twin screw extruder	1 set
2	Auto loader in spring type for the extruder	1 set
3	Die head in 3 pressure grade	1 set
4	Vacuum tank in 6m	1 set
5	Haul off with 3 claw type	1 set
6	Dustless cutter	1 set
7	Stacker	1 set

PVC Pipe Extrusion Line / PVC Pipe Making Machine Circumstances

SN	Condition	Specification	Description
1	Natural circumstance condition	Working place	Indoor use
		Power source	No dangerous area
		Humidity	55%~85% no condensation
		Temperature	0~40 ℃
2	Electricity source	Installation capacity	70 kW
		Actual power consumption	28 kW
		Power supply	3P+N+PE
		Voltage/Frequency	380V/50Hz other can be option
3	Cooling water	Temperature	≤15 ℃
		Water pressure	≥0.3MPa
		Flow	~15 m³/h
4	Air condition	Compressor air pressure	≥0.6MPa
4	Air condition	Flow	~0.9 m³/mi

PVC Pipe Extrusion Line / PVC Pipe Making Machine Technical features of whole line

SN	Specification	Description	Remark
1	Suitable material	PVC powder
2	Pipe diameter range	Ø110-Ø160mm.
3	Production speed	1.5 ~ 15 m/min
4	Max. output	330kg/h
5	Test and accept	Based on HYPET standard formula.
6	Center height	1,000mm
7	Whole line size (L x W x H)	21,000 x 1,200 x 2,450mm
8	Operation direction	From right to left
9	Color of equipment	HYPET white color
10	Control of whole production	Refer to the “configuration list”.
Note	Extrusion capacity will be changed according the processing material and working conditions

Note: HYPET remains the right to improve the technology of the line, if there’s any modification of the specification, customer will be not informed.

PVC Pipe Extrusion Line / PVC Pipe Making MachinePipe Dimension (for reference)

No.	OD(mm)	Wall thickness (mm)
No.	OD(mm)	4bar	6bar	10bar
1	75	1.8	2.2	3.6
2	90	1.8	2.7	4.3
3	110	2.2	3.2	5.3
4	160	3.2	4.7	7.7

PVC Pipe Extrusion Line / PVC Pipe Making Machine Pipe production output ( estimated )

Output chart -6 Bar
No.	OD(mm)	Wall-Thickness(mm)	Weight/meter	line speed	Output
1	75	2.2	0.70kg/m	7 meter/min	295.85kg/h
2	90	2.7	1.04kg/m	4.7 meter/min	292.34kg/h
3	110	3.2	1.50kg/m	3.3meter/min	297.61kg/h
4	160	4.7	3.21kg/m	1.5meter/min	298.92kg/h
