Name: Made In China Hotsale UPVC CPVC OPVC PVC Parallel Twin Screw Extruder HYPS92/28 With High Output Capacity And Less Power
Brand: Shenzhen HYPET Co., Ltd.
SKU: HYPS92/28 Parallel Twin Screw Extruder
Price: 35000 USD
Availability: InStock

Home > products > Plastic Extruder Machine >

Made In China Hotsale UPVC CPVC OPVC PVC Parallel Twin Screw Extruder HYPS92/28 With High Output Capacity And Less Power

UPVC Parallel Twin Screw Extruder

PVC Parallel Twin Screw Extruder

Less Power Parallel Twin Screw Extruder

Place of Origin:

China

Brand Name:

Hypet

Certification:

ISO9001,CE

Model Number:

HYPS92/28 Parallel Twin Screw Extruder

Request A Quote

Product Details

Barrel Heating Zones:

Motor Power:

55KW

Inventor:

Delta

Gear Box:

Vertical Reducer

Screw Size:

92mm

Barrel Cooling System:

Air Cooling

Main Motor Brand:

Siemens

Gear Surface:

Hardened And Ground In High Precision

Max Output:

500-550kg/h

Screw Quantity:

Two

Barrel Type:

Two Parts /One Body

Feeder Motor Power:

1.5kw

Control System:

PLC

Processing Material:

PVC/WPC

Vacuum Pump:

3kw

Key Parts Warranty:

1year

Engineer Installation Service:

Yes

Highlight:

UPVC Parallel Twin Screw Extruder

PVC Parallel Twin Screw Extruder

Less Power Parallel Twin Screw Extruder

Payment & Shipping Terms

Minimum Order Quantity

1set

Price

USD 35000/set

Packaging Details

Standard Package for sea shipment

Delivery Time

35~45days

Payment Terms

L/C, T/T

Supply Ability

30set/month

Screw Length 1820 Mm Plastic Extruder Machine with 2 Screws and 1-36.9r/min Screw Speed

Get Best Price

380V Optional Double Screw Extruder Machine for Customizable Plastic Production

Get Best Price

Conical Double Screw Design Plastic Extruder Machine for and Recycling Water Cooling at 15m/min Speed

Get Best Price

DELING Gearbox Conical Double Screw Extruder Machine for Precise and Consistent Output

Get Best Price

+8615002772815

ryan@hypet.com.cn

+86-755-25851030

Contact Now

Product Description

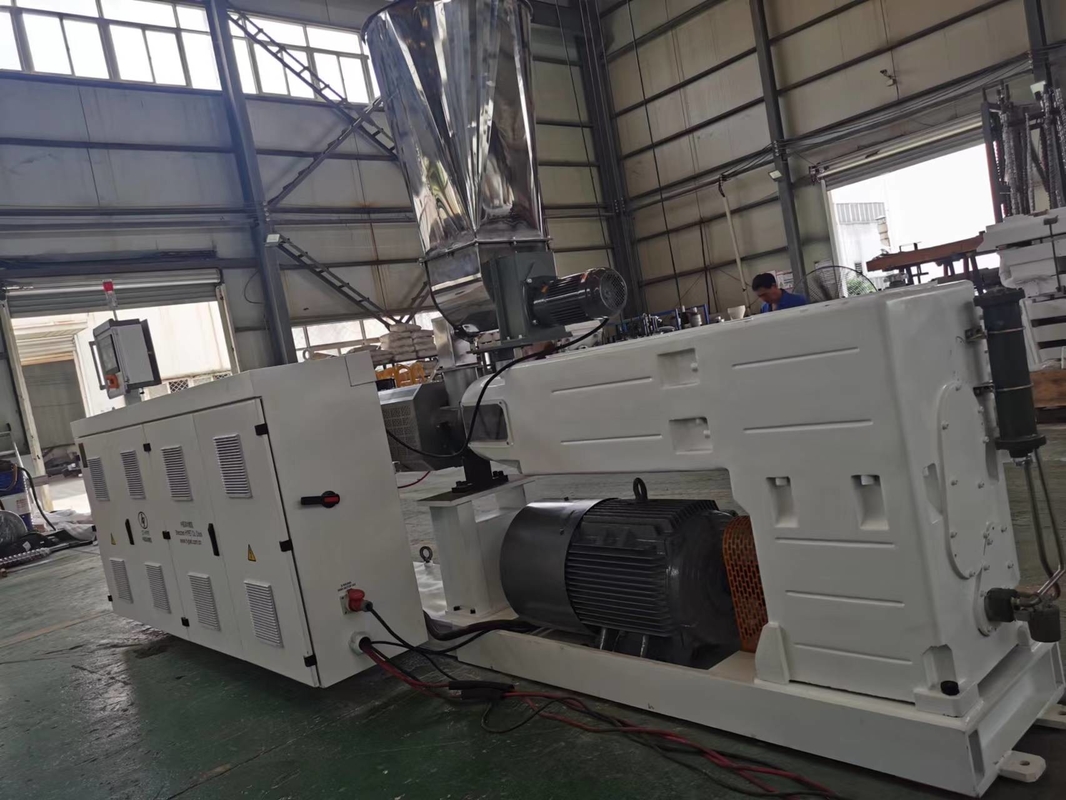

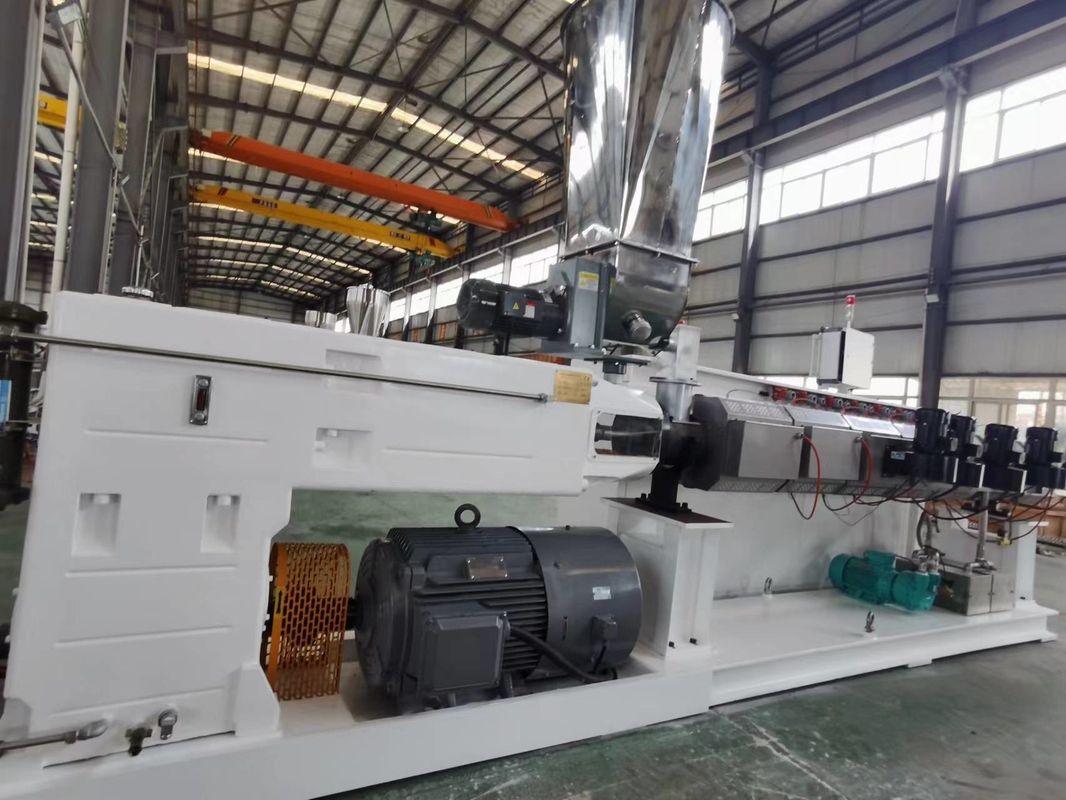

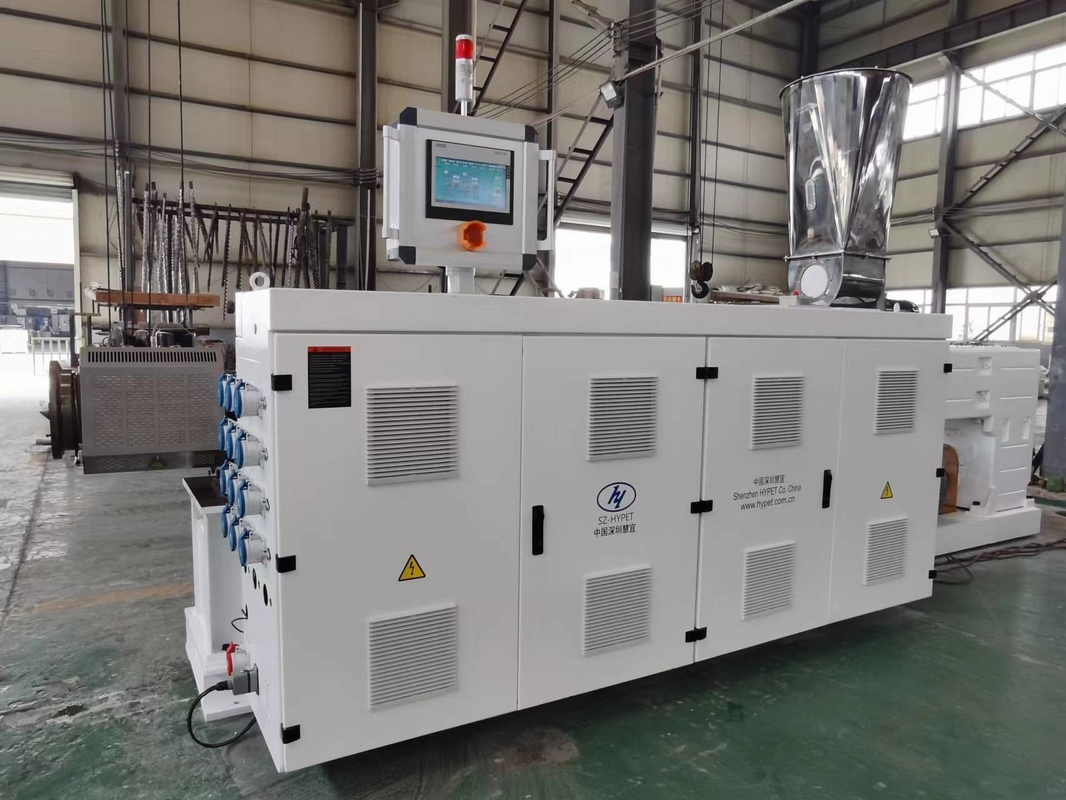

1.HYPS92/28 Parallel Twin Screw Extruder
Made In China Hotsale UPVC CPVC OPVC PVC Parallel Twin Screw Extruder HYPS92/28 With High Output Capacity And Less Power 0

2.Brief Introduction to the company
Shenzhen HYPET Company has over 30 years of experience in the research and development and manufacturing of parallel twin screw extruders. Drawing on advanced technologies from Western Europe and accumulating years of practical experience, it has independently designed and manufactured key tech partsd such as gearboxes, barrel screws, and AI automatic control systems. It has developed various extruders with different functions suitable for PVC pipes, profiles, plates, granulation, etc., achieving high quality and technical level.

3.Specification of the Machine

SN	Parts name	Specification	Description
1	Extruder	Extruder model	HYPS-92/28 Parallel twin screw
		Output	500-550kg/h for pipe
		Center height	1000mm
		Dimension	4900 x 1300 x 2700mm
		Weight	4400kg
2	Screw	Diameter	Ø92 mm
		L/D	28:1 for pipe production.
		Material	38CrMoAlA + special alloy
		Finish	Nitrogen-filled (0.50~0.70mm depth) and polish
		Rotate speed	0~45 r/min
		Core of the screw	Auto control for temperature
3	Barrel	Barrel Structure	38CrMoAlA + special alloy
3	Barrel	Inside finish	Nitrogen-filled (0.50~0.70mm depth)

4	Temp/ pressure transducer	Quality	China famous brand
		Structure	Separately senses both in pressure and temperature
		Cable	High isolated cable line
		Screen	Both in monitor or screen display

5	Heater and cooling fans	Heating control area	5 zones
		Heating way	Cast aluminum
		Heating power	38 kW
		Cooling system	Low-noisy barrel cooling fan
		Cooling power	0.37kw x 4 sets
		Water/oil cooling	One zone in front part for option
		Heat isolating	Special isolating material and structure for energy saving.
6	HYPET Gear box	Housing material	Ductile iron
		Gear material	20CrMnTiA
		Gear surface	Hardened and ground in high precision
		Axis material	40Cr
		Temperature of oil	Controlled by two system,
		Rubber sealer	Imported specal rubber sealer used
		Bearings	With famous and reliable brand.
7	Twin screw Dosing feeder	Supplying material motor	1.5 kW
		Speed range	1-50 RPM
		Powder bridge	Anti powder bridge with high Caco3
		Inverter	Delta heavy loader type
8	Vacuum degas with selector	Vacuum degree	-0.04Mpa
		Motor power	3 kw
		Vacuum tank	Easy to be clean
		Auto clean device	Air control auto Clean device for option.
9	Driving motor	AC motor power	55 kW heavy load type.
9	Driving motor	AC inverter controller	Delta heavy type inverter
10	Electrical Control system	PLC system	Whole Siemens PLC control system with HYPET AI soft ware.
		Electric components	Branded in Siemens, Schneider RKC Omron, Delta and small unimportant parts in China famous brand
		Extra temperature zone for die head	8 zones
		Electric cabinet feature	1, all cable and connectors are with Wire aviation plug 2, electric cabinet can be disassembled with easy, 3, all cables and senses cables are strong enough with long life .

4.Other Option Requirements

Some requirments need the customizing as below before the order confirmed.

SN	Items	Speciality
1	Direction of the operation canbinet	Standard direction is from right to left. Other direction can be option.
2	Electric voltage & Frequency	Standard is 380/3 phases, 50Hz, Others can be option
3	PVC raw material	Stdanrd is PVC powder, special material and speical fomulation can be discussion and for option.
4	Electric cabinet cooling	Standard cooling system for cabinet is meet normal environment, but Air conditional can be equipped as option
5	Machine color	Stadnard color is HYPET light white, other color can be option.
6	Cooling water and air compressor	Designing on the shop that need of cooling water and air compressor system for free.
7	Operation instruction	PVC processing technology, formulation, operation requirments can be discussed and offered.
