Hard Chrome Plating Parallel Screw And Barrel For Twin Screw Extruders And Sizing Measuring Service Free

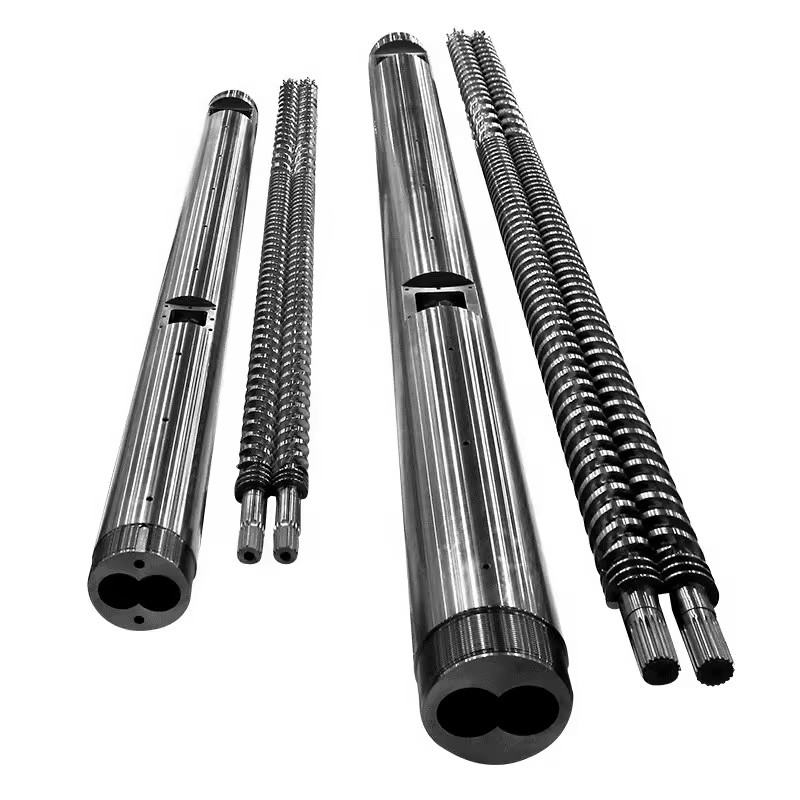

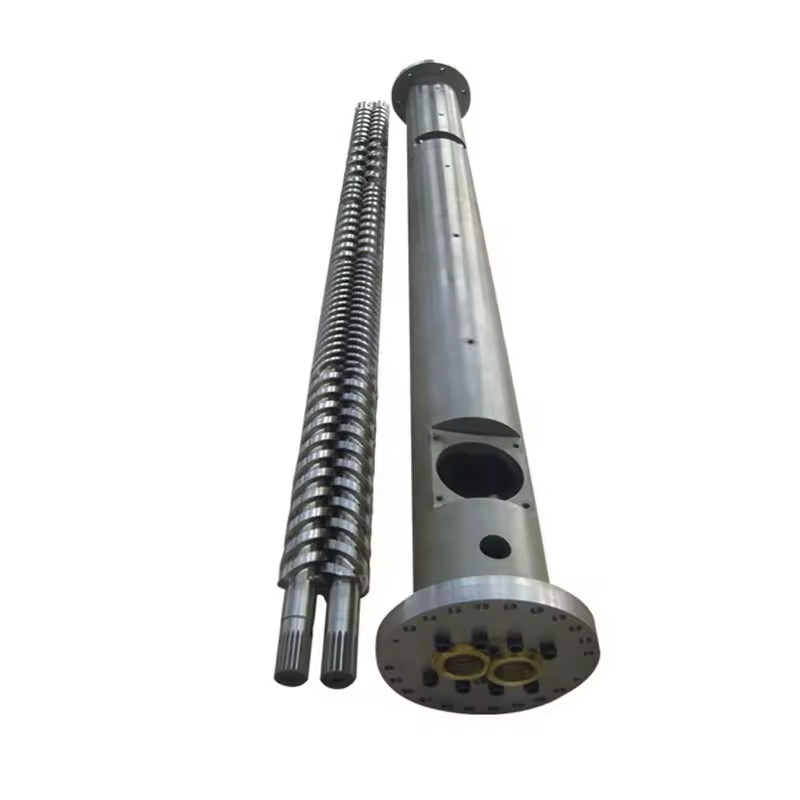

1.Series of parallel twin screw and barrel

2.HYPET Special features

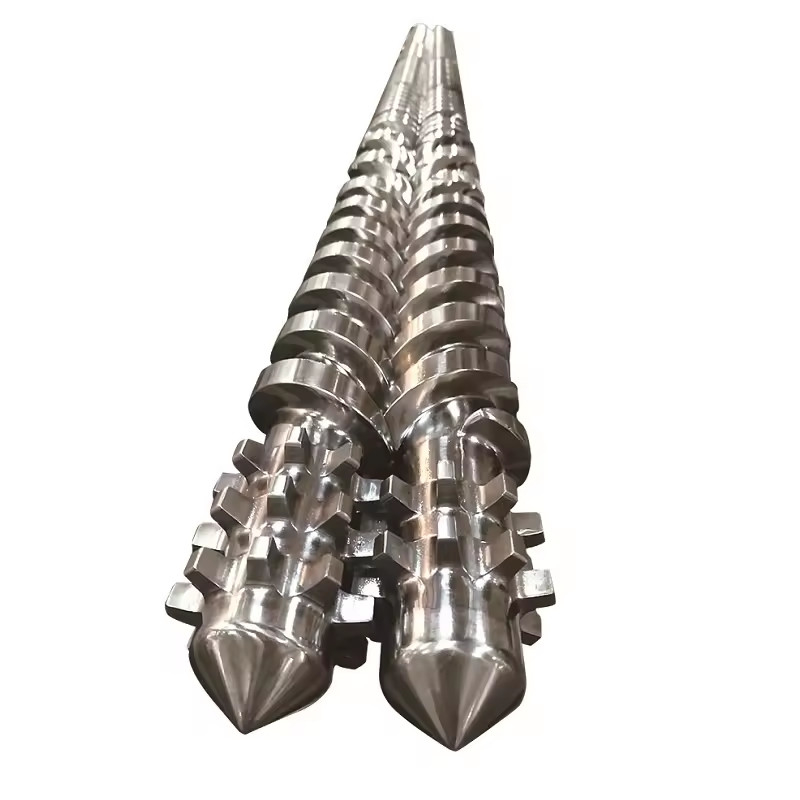

1). Hard chrome plating for the twin screws, especially at the metering section of the screws, which will make the screws more anti-corrosion, more anti-wear especially the feeding mix raw material including some acids or other corrosive substances.

2).The bimetallic barrel is centrifugally cast a 2-4mm thick alloy coat on the output section of barrel inner wall which has excellent corrosion resistance, abrasion resistance and high working temperature. And its useful service life is greatly improved contrast to the common nitrided barrel. Bimetal has more obvious advantages when processing high calcium carbonate powder PVC mixture to enhance the abrasion life.

Another bimetallic barrel is machining the grooves at output section of the barrel then spraying the alloy powder on the groove. The length is about 400-500mm.

3) High output with less energy cost reached by better designing for different raw material, formulation, products and processing equipment etc.

4)The compression ratio of the screw can be designed according to different raw material and products. Different design for barrel to meet with customer’s requirement on high cost performance for option.

A Barrel		Integrated structure, warranty 18 months
		Material 38CrMnAlA+ grooved Sprayed alloy
		Suitabe for less filler and short working life
B Barrel		Two parts structure, warranty 36 months
		Material 38CrMnAlA+ Small part in special alloy
		Suitabe for more filler or longer working life
C Barrel		Small feeding zone + longer barrel part double life
		Material 38CrMnAlA+ longer part in special alloy.
		Suitabe for more than 200 phr filler
Screw		Material 38CrMnAlA+ grooved Sprayed alloy
		HYPET designed and making with advantage following
		High quality/high filler/high output for PVC pipe
		PVC-WPC/PE/PP/WPC/building profile
		Foamed board/sheet/hard or soft PVC pelletizing.

3.Commercial items

Note:

Screw material:

All sizes of the screw are 38CrMnAlA Nitrided steel+Special Alloy Spraying Welding on the whole screw thread surface

Barrel material

A:Integral barrel Standard Alloy spraying/B:Two parts Bimetallic sleeve/C:High Cacium filler abrasion resistant

Screw cooling

Standard way:Liquid self circulation cooling of screw core; Special requirment External circulation oil cooling of screw core for option

Application

For PVC pipe profile sheet pellets and WPC/SPC/High filler composite material processing/special requirement for custom made
