Self-adhesive PE Waterproof Sheet Membrane Production Line With Single-screw Design

Self-adhesive PE Waterproof Sheet Membrane Production Line With Single-screw Design

PE Waterproof Sheet Membrane Production Line

Self-adhesive Waterproofing Membrane Production Line

Place of Origin:

CHINA

Brand Name:

HYMAX

Certification:

ISO CE

Model Number:

HYFSJD-2200-3GUN/HYFSJD-2200-5GUN

Contact Us
Request A Quote
Self-adhesive PE Waterproof Sheet Membrane Production Line With Single-screw Design Self-adhesive PE Waterproof Sheet Membrane Production Line With Single-screw Design Self-adhesive PE Waterproof Sheet Membrane Production Line With Single-screw Design Self-adhesive PE Waterproof Sheet Membrane Production Line With Single-screw Design Self-adhesive PE Waterproof Sheet Membrane Production Line With Single-screw Design Self-adhesive PE Waterproof Sheet Membrane Production Line With Single-screw Design
Product Details
Screw Design:
Single-screw
Screw L/d Ratio:
33:1
Screw Speed (rpm):
56
Voltage:
380V
Extruder Type:
Single Screw
Plastic Processed:
PE, PVC
Application:
Film, Sheet, Plates
Warranty:
1 Year
Weight (KG):
50000
Screw Material:
38CrMoALA
Screw Diameter (mm):
100
Place Of Origin:
Hubei, China
Brand Name:
Hymax
Dimension(l*w*h):
56*3*4
Video Outgoing-inspection:
Provided
Core Components:
Motor, Pump, PLC, Gearbox, Screw
Machinery Test Report:
Not Available
Name:
Waterproof Sheet Membrane Production Line
Final Product:
Waterproof Membrane
Applicable Industries:
Constructive Of Road, House And Other Buildings
Material:
PE Or PVC
Layers:
Two
Automatic Grade:
Fully Automaitc
Membrane Width:
2200mm
Plastic Processed PE, PVC Application Film, Sheet, Plates Warranty 1 Year Weight (KG) 50000 Screw Ma:
Co-extrusion
Highlight:

PE Waterproof Sheet Membrane Production Line

,

Self-adhesive Waterproofing Membrane Production Line

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
USD 200000/SET-250000 USD/SET
Packaging Details
CONTAINER LOAD
Delivery Time
70 DAYS
Supply Ability
100 SETS PER MONTH
RELATED PRODUCTS
Good price Self-adhesive PE Waterproof Sheet Membrane Production Line With Single-screw Design online

Self-adhesive PE Waterproof Sheet Membrane Production Line With Single-screw Design

Get Best Price
Contact Us
+8615002772815
ryan@hypet.com.cn
+86-755-25851030
Contact Now
Product Description

Product descriptions from the supplier

Self-adhesive PE Waterproof Sheet Membrane Production Line With Single-screw Design 0

PE / PVC Polymer self-adhesive waterproof membrane production line
It can produce two kinds of double-layer waterproof sheets, PE or PVC, 1) can be made into homogeneous rolls, 2) rolls with backing, 3) rolls with middle reinforcement, 4) rolls with middle reinforcement and backing. In addition, PE or PVC can be processed by replacing the screw, and subsequent secondary processing such as glue coating and sand coating can be performed.
Self-adhesive PE Waterproof Sheet Membrane Production Line With Single-screw Design 1

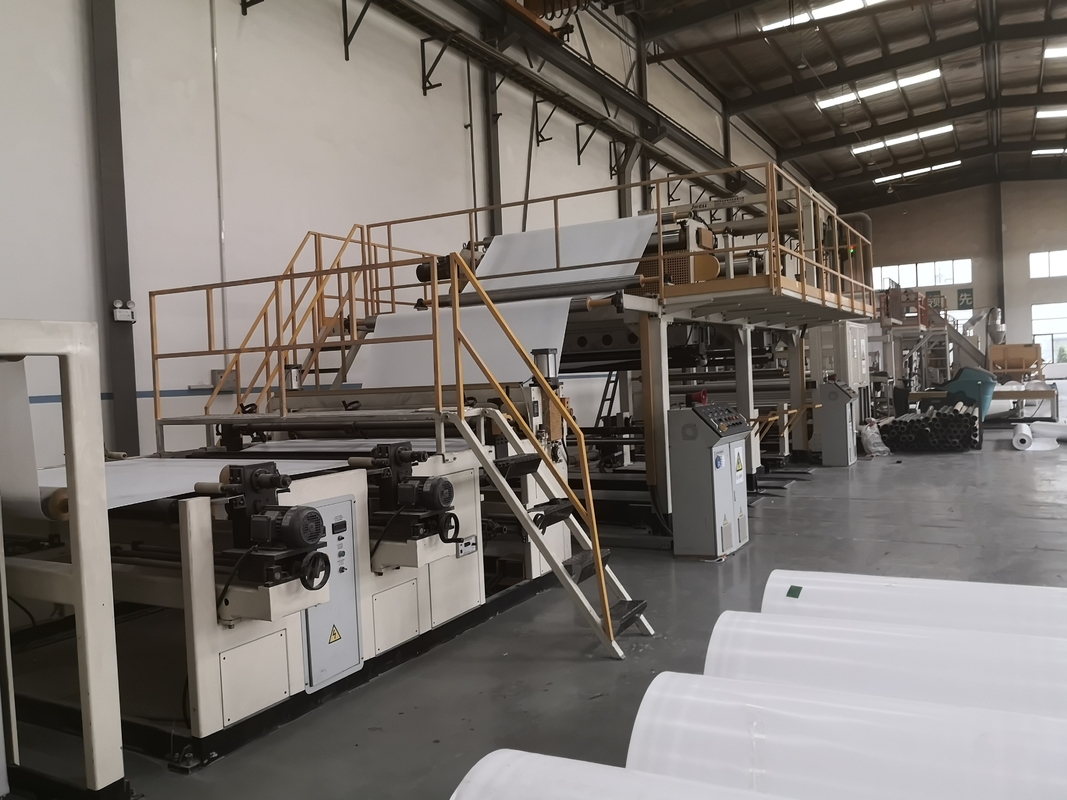

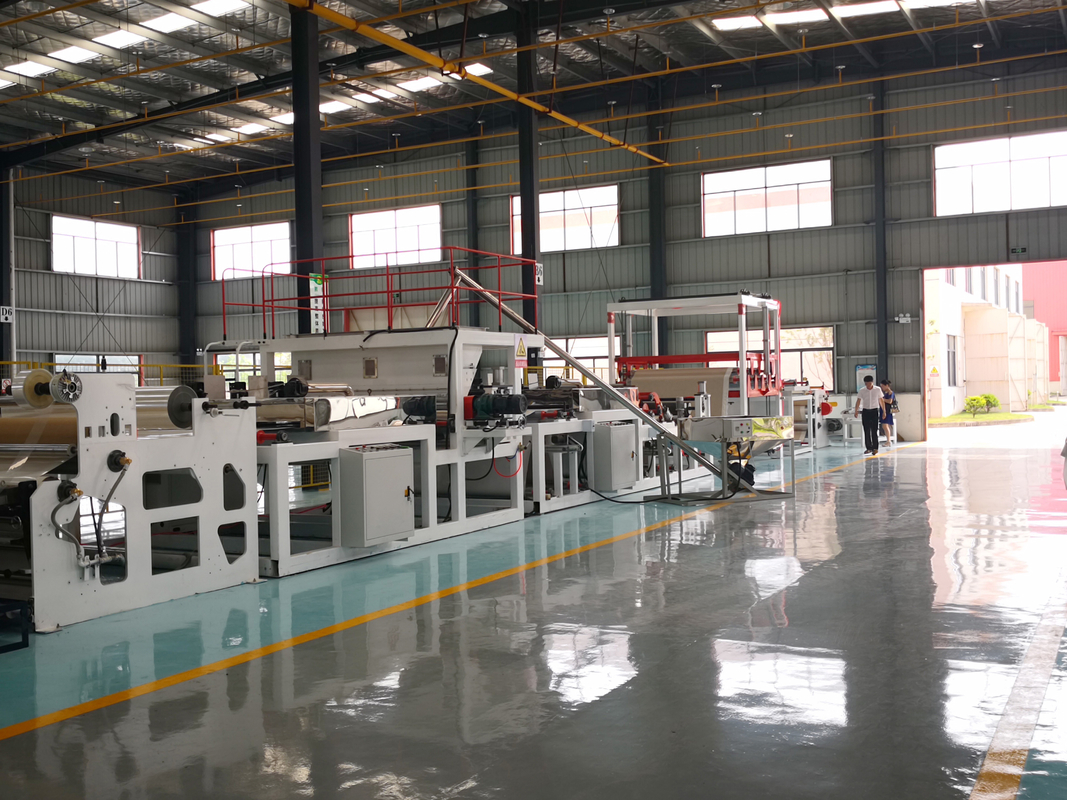

Machine Consists and main technical data

Main Data:
* Double-layer sheet thickness: 0.5-1.5mm adjustable
* Double layer ratio A/B, 50%-70% adjustable
* Flatness: less than 5%
* Output: Standard type: Rated output 700kg/h, actual production output 600kg/h
* Sheet width: 2200 mm
* Roller diameter X length: 500x2500
* T mold: 2300mm
* Production machine speed 12m/min
* Actual production of standard equipment: 3-5m/min
* Actual production of high-yield equipment: 8-10m/min
* Production control mode: from feeding to winding, fully automatic control, joint adjustment and fine adjustment are possible.
* Installed power: Standard type: about 250kw High-yield type: 400kw
* Power source: ~380V±15% 50Hz
* Air source: 0.6～8Mpa
* Water source: 0.15～4MPa circulating cooling water

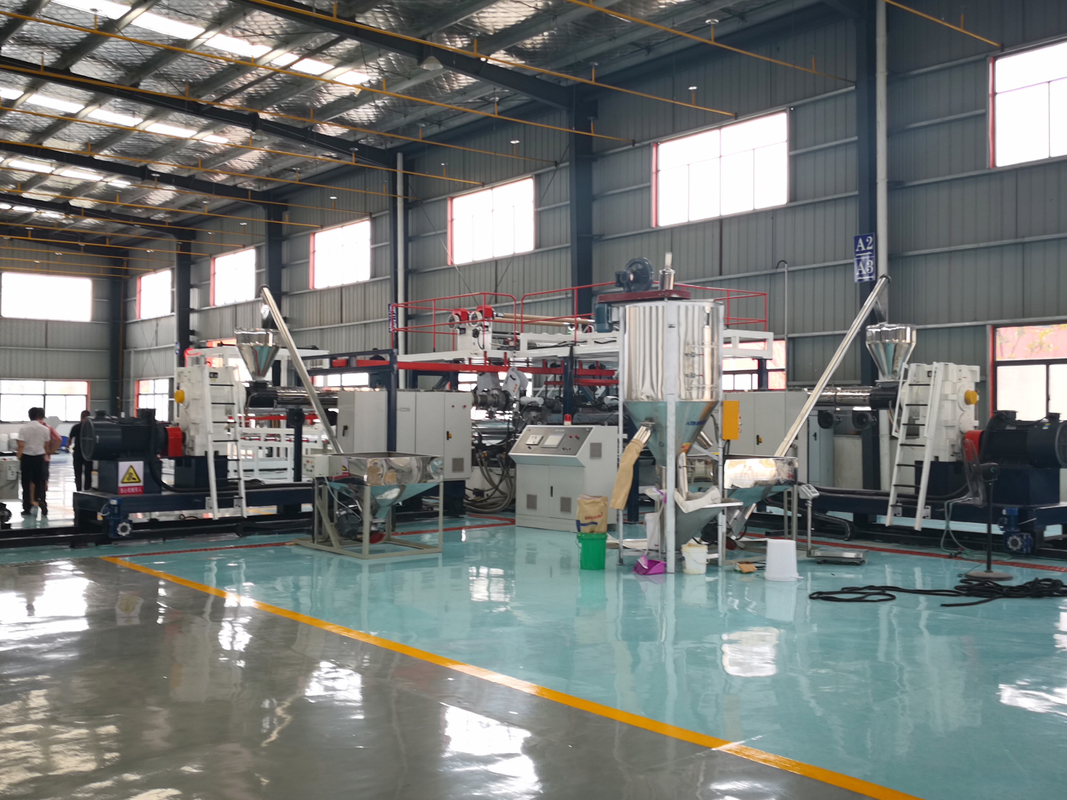

Consists:
* 2 tons of mixed + dry silo: 1 set
* Single screw extruder: 2 sets
* Standard type: Specification: 100/33 (120/33 for high-efficiency type)
* Single-plate double-station filter: 2 sets

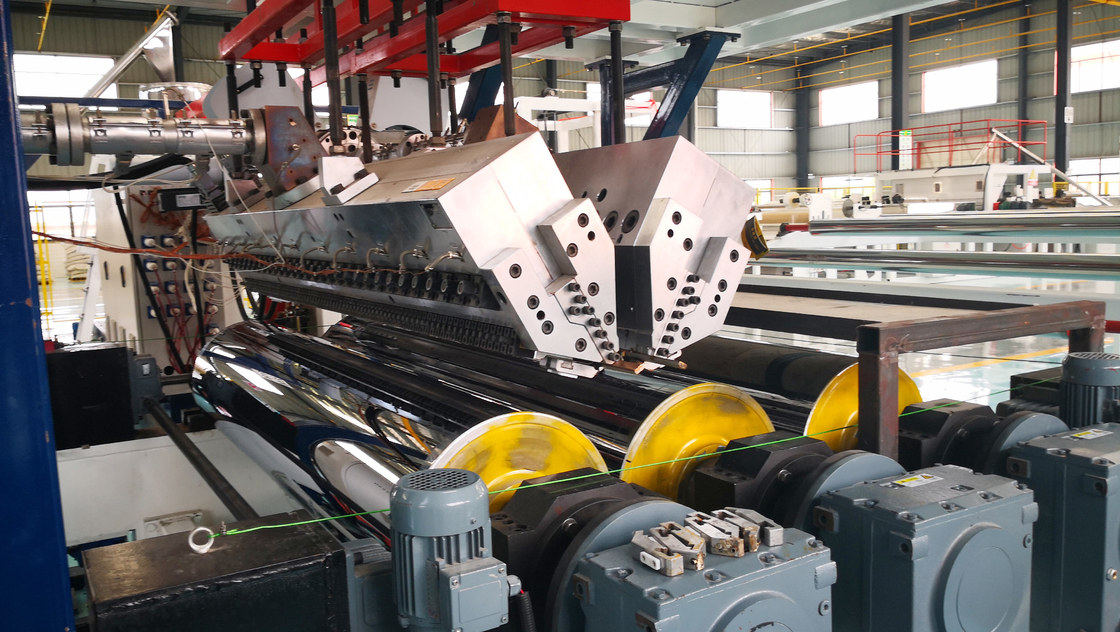

* T-die sheet extrusion head: 2 sets

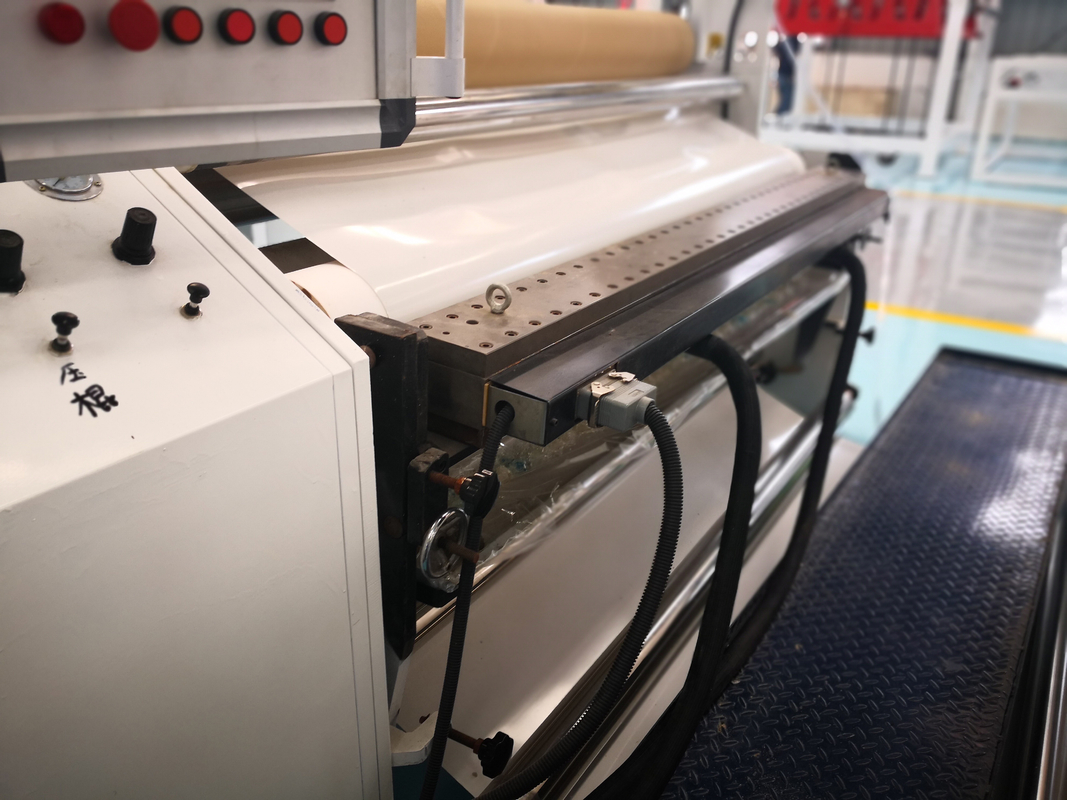

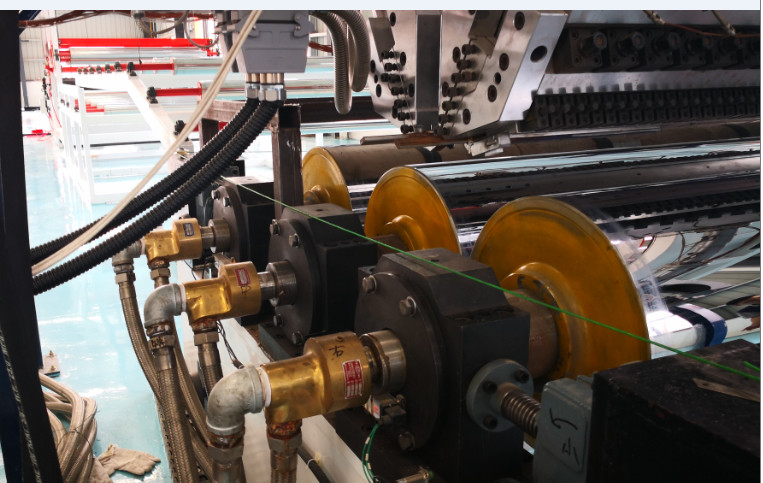

* Horizontal three-roll forming unit: including 1 mold temperature controller
* Horizontal double-roller cooling setting (high-efficiency unit): 1 set, optional
* Laminated base material anti-roll device: 1 set
* Adjustable cooling roller device: 1 set
* Storage device: 1 set of pneumatic control principle
* Double roller traction device: 1 set
* Horizontal cutting device: 1 set
* Standard type of winding device: 1 unit (2 units are required for high-efficiency type)
* Small crane transfer products: 1 unit
Self-adhesive PE Waterproof Sheet Membrane Production Line With Single-screw Design 2
