315-810 mm HDPE CE Standard Pipe Production Line

Brand Name:	HYPET
MOQ:	1
Price:	US$319,030
Delivery Time:	60 days
Payment Terms:	L/C,D/P,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

Wuhan China

Certification:

Keywords:

315-810 Mm HDPE PPR CE Standard Pipe Production Line

Packaging Details:

FCL

Supply Ability:

100 sets/ year

Highlight:

HDPE pipe production line

CE standard pipe extrusion line

315-810 mm plastic pipe machine

Product Description

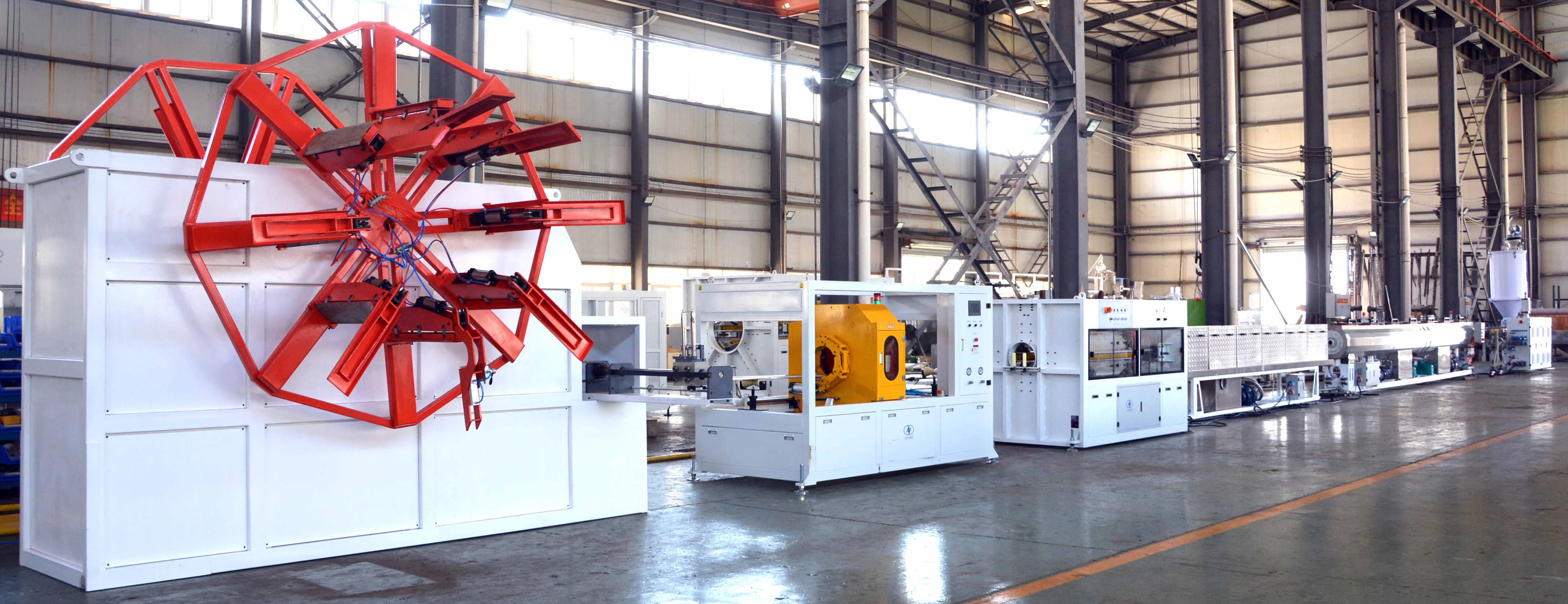

315-810mm HDPE pipe production line

1. High output: Ensure you the highest output as compared with others

2. New technology gear box:High torque gear box

3. Screw and barrel:Bi-metal material ensure you longer working life, ensuring 24months

4. Electric elements and box:In detachable, with world famous brand such as ABB, Siemens, Schneider, Delta, well organized.

5. HYPET PLC control system:With operation easy, management full, energy saving and counting, and intelligent control system

6. Pipe brighten device:To make the pipe shining and smoothing

7. Vacuum tank 304 stainless:Water level and temperature controlled automatically

8. Chipless cutter:In new device for cutting pipe to save the material

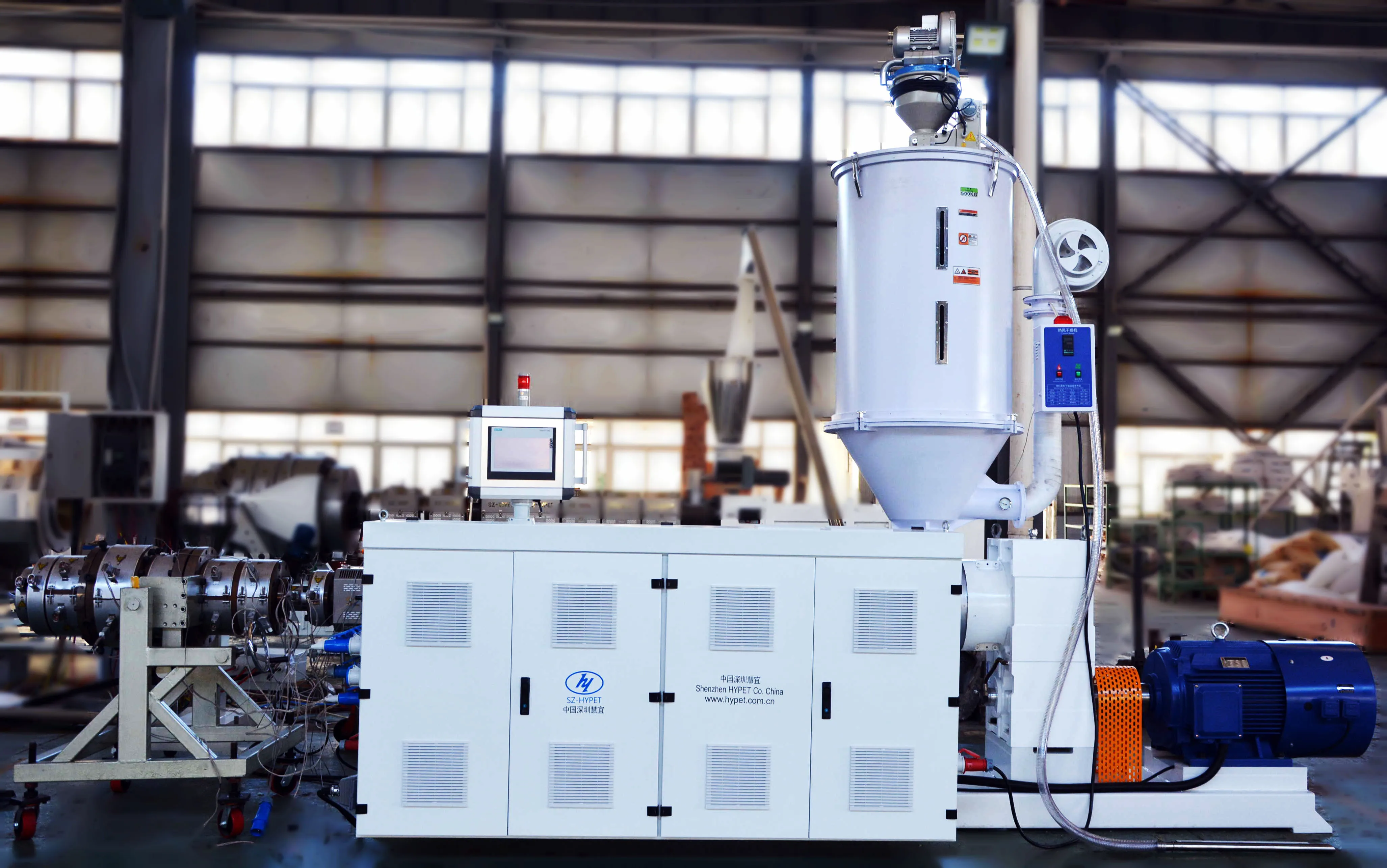

HIGH EFFICIENT SINGLE Screw Extruder



High output / Long L/D /Better plasticizing

Self designed screw
Drying type feeder
Super size touch screen
Energy saving heaters
Low noisy blower
Top brand inverter
Strong motor

Operating Screen

Super size operating screen to keep operation easily and well

Control system

Top brand Siemens PLC control sytem as operating heart

Heaters & blowers

Energy saving type heaters and low noisy blowers

Dosing sytem

Best brand for option

Frequency inverter

ABB or Heavy type Delta

Gear box

High precise gears

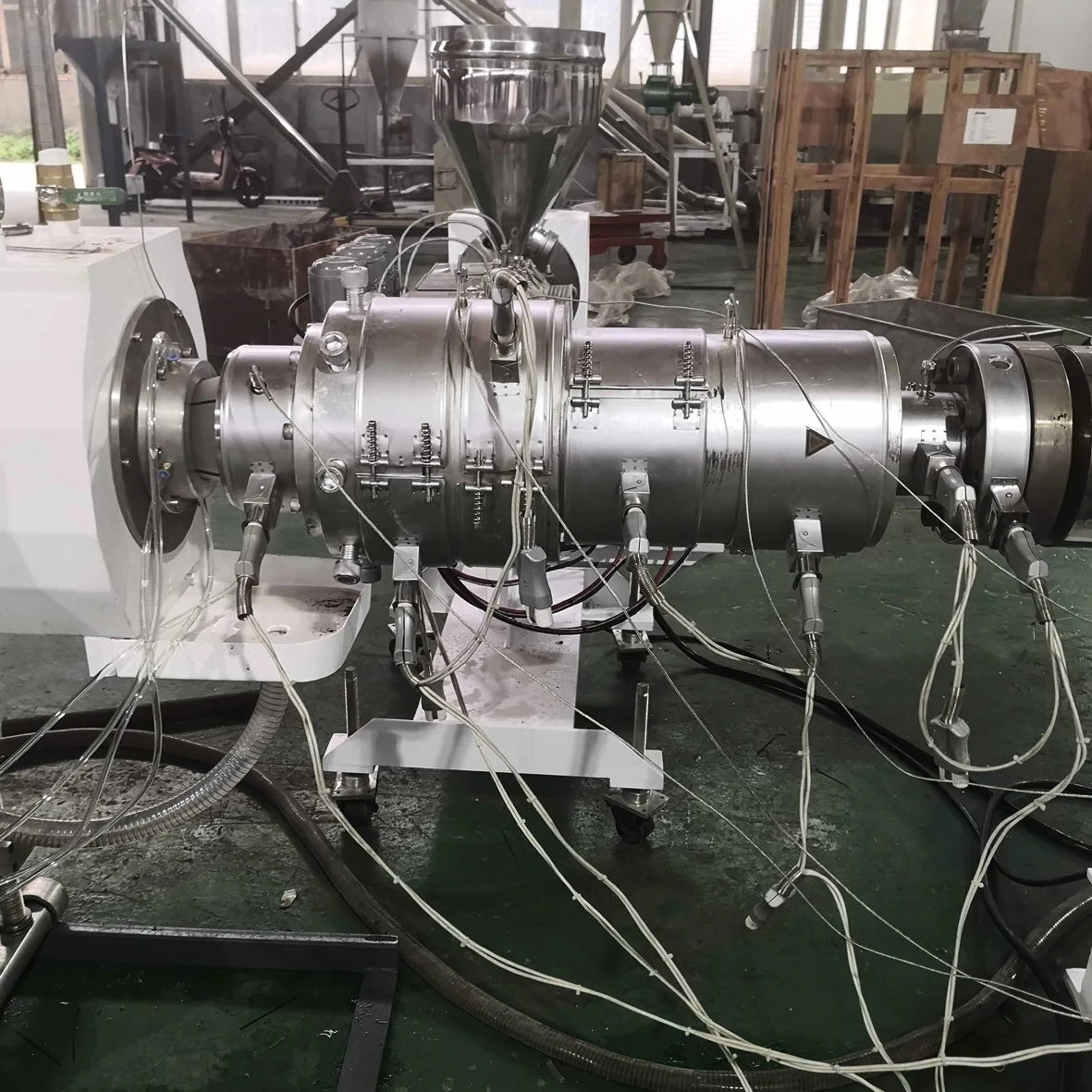

CO-EXTRUSION DIE HEAD

With HYPET brighter which make the pipe surface is bright. The pressure class and pipe standard will be made according to the requirement. The spider concept ensures excellent, outstanding & consistent pipe quality due to ideal dwell time of melt throughout. The cross section of the die. Homogenous melt distribution with temperature control through number of zones for high through puts. The flow path are milled and are highly polished. .

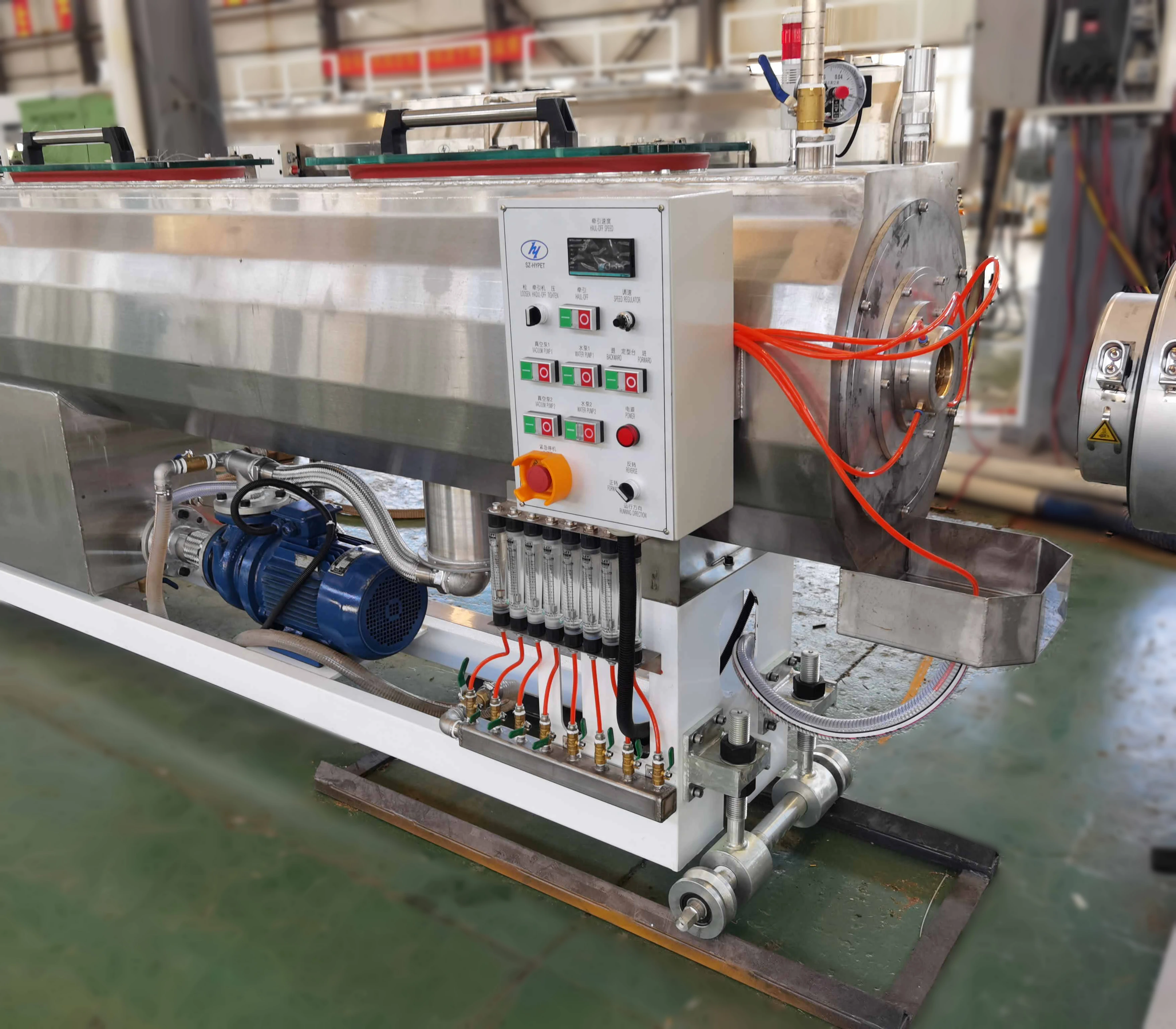

VACUUM TANK

Temperature controller in close loop water temperature system to maintain water level & temperature in the tank. Vacuum release valve manual as well as solenoid operated. Visual inspection window is provided at the entry of the tank. Height adjustment on wheels & Motorized longitudinal movement & manual cross adjustment.

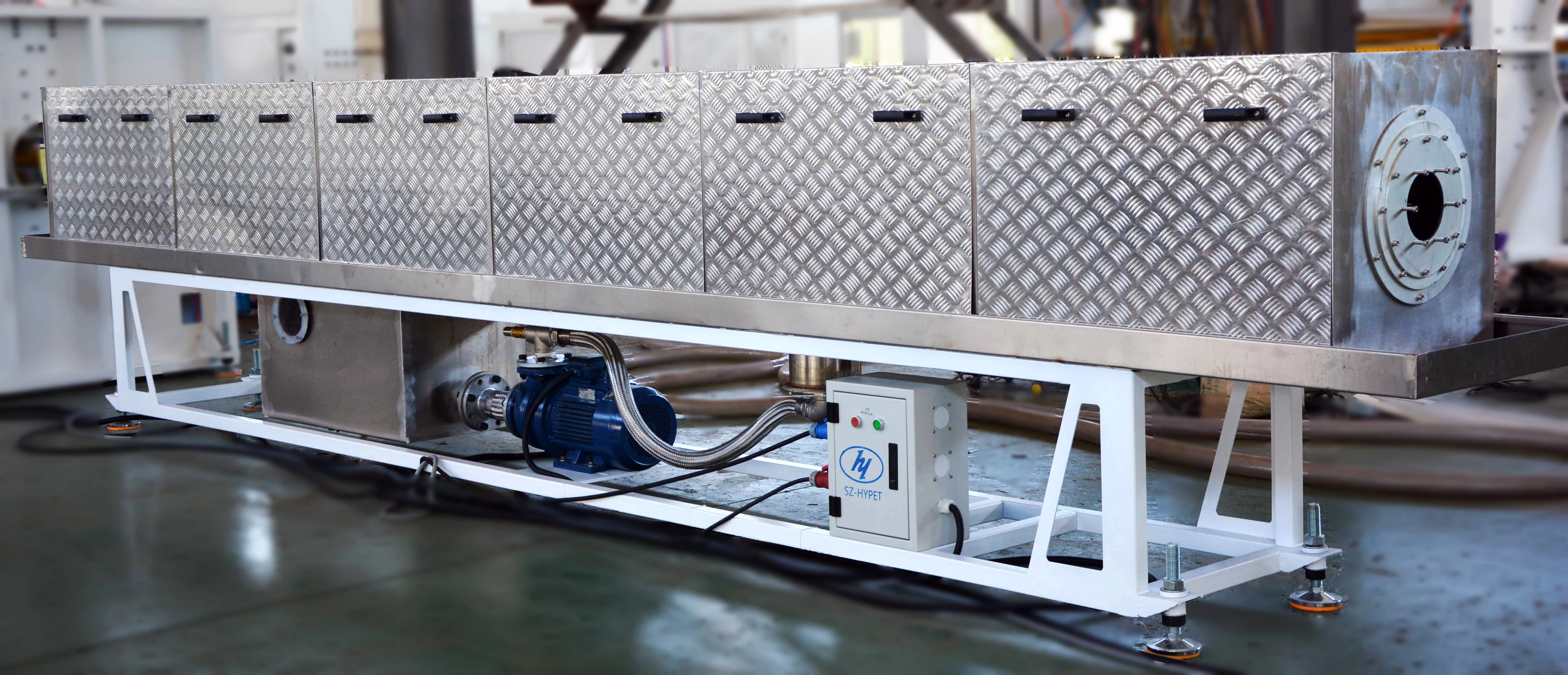

SPRAY TANK

Raw material is stainless steel 304.
Spraying nozzles will be better and fast cooling.
Pump with strong power supplying water.

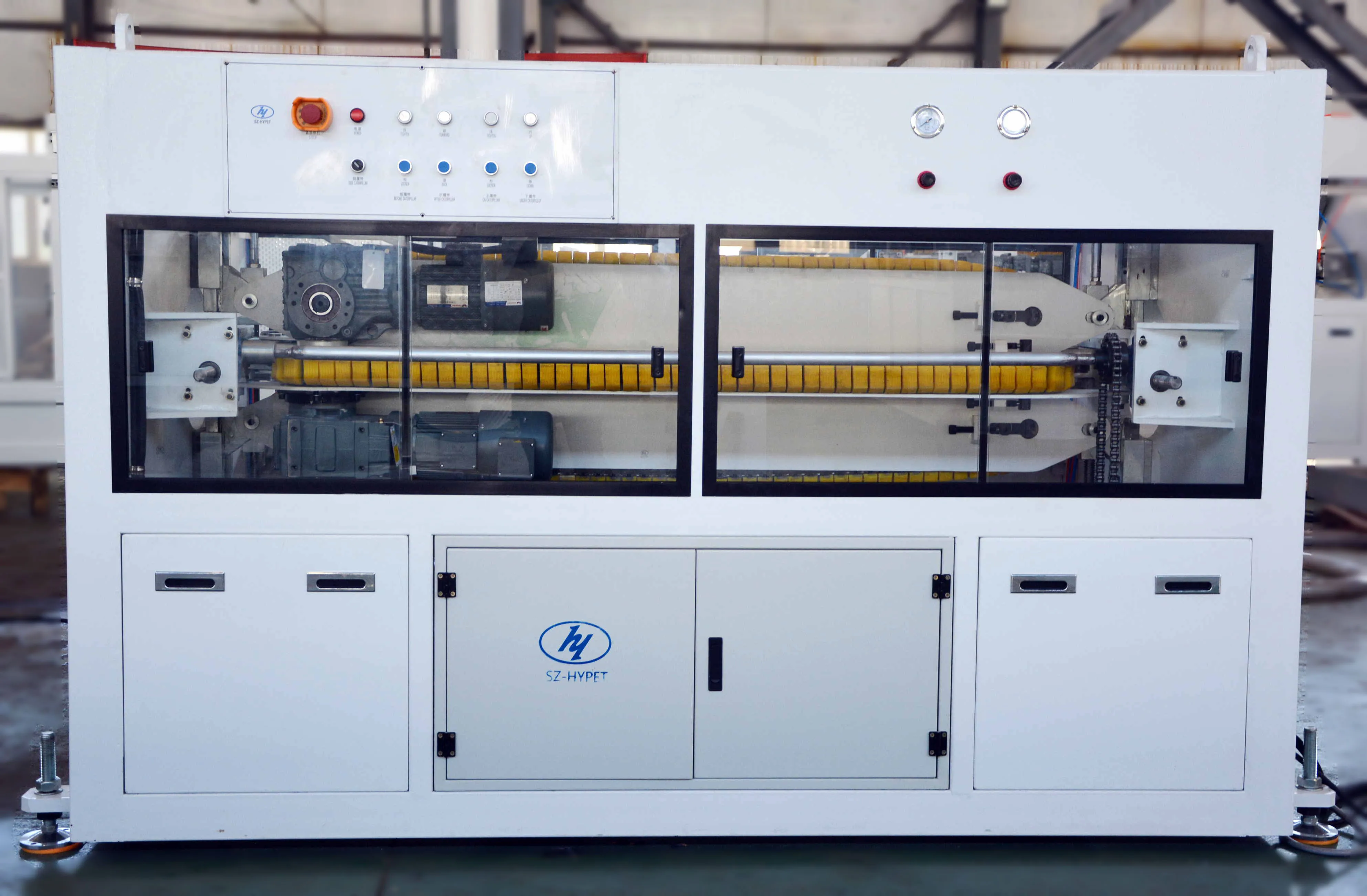

HAUL OFF MACHINE

Consists of top and bottom support which houses chain driven jaws with V- rubber profile.
Bottom support is fixed one and top support is pneumatically operated by two sets of cylinders on either side. Independent special characteristic Vector AC strong Geared motor for each traction.

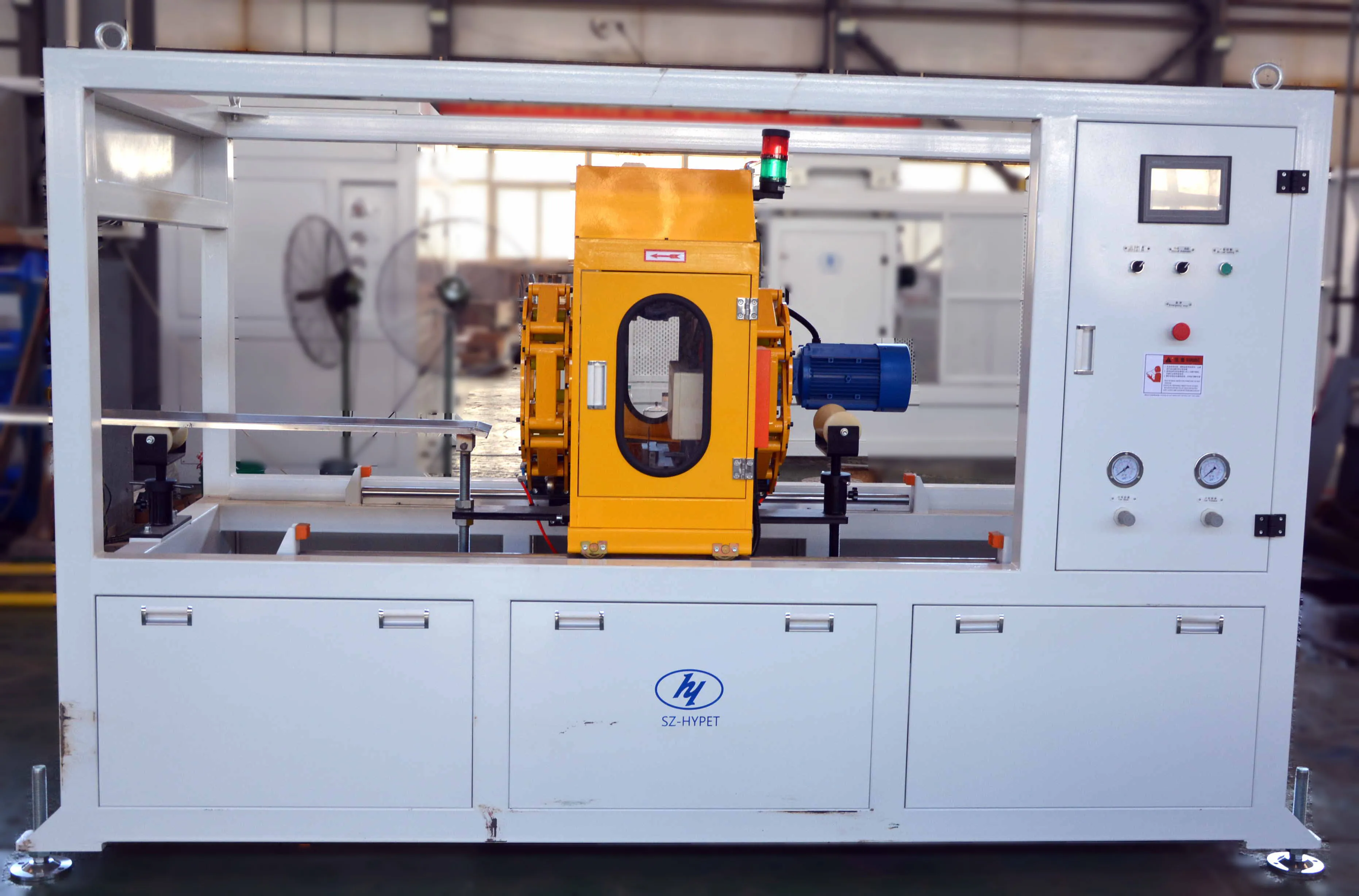

CUTTER

Swarfless cutter to save the material and Environmental protection Cut neatly bright No noise and energy saving. Cast aluminum blocks for Clamping pipe Carriage made of Aluminum is mounted on hardened and hard chrome plated guide bar with linear motion bearings.

STACKER

The tripping chute is made from MS rigid structural steel. Stainless flat type Tilting table provided for smooth scratch less pipe moment. Tilting table is Pneumatically operated Limit switches with adjustable bracket provided to cut various pipe length. Integral Stand provided for pipe stacking.

Cooperative brands

Auxiliary machine for option

Laser printer

Laser logo and words

Dryer

Material drying feeder

PE pulverizer

Recycle PE bad products

Color Mixer

Mxing raw material with colorant

Chiller

Produce cooling water

Air compressor

Produce pressed air

Series Lines & Data

No.	Pipe range	Extruders	Main Motor	Output
1	16-63 PPR	60/36	45	130
2	20-110 PE	60/36	55	220
3	110-250 PE	60/36	90	360
4	160-315 PE	75/36	110	420
5	200-400 PE	75/36	132	520
6	315-630 PE	90/36	185	720
