Name: Screw And Barrel For Plastic Extruder / Extruding Machine Single Screw Double Screw
Brand: Shenzhen HYPET Co., Ltd.
SKU: HYMAX-Screw And Barrel For Plastic Extruder / Extruding Machine Single Screw Double Screw
Price: 15,500.00 USD
Availability: InStock

Home > products > Auxiliary Machine and Parts >

Screw And Barrel For Plastic Extruder / Extruding Machine Single Screw Double Screw

Plastic Extruder Screw And Barrel

Plastic Extruding Machine Screw And Barrel

Double Screw Extruder Screw And Barrel

Place of Origin:

China

Brand Name:

SHENZHEN HYPET

Certification:

CE, ISO9001

Model Number:

HYMAX-Screw And Barrel For Plastic Extruder / Extruding Machine Single Screw Double Screw

Request A Quote

Product Details

Key Word:

Screw And Barrel For Plastic Extruder / Extruding Machine Single Screw Double Screw

Application:

Plastic Extruder

Voltage:

380V/50Hz /3P Or Customized

Type:

Screw And Barrel

Certification:

CE ISO9001

Condition:

New

Surface Treatment:

Nitriding And Chrome Plated

Highlight:

Plastic Extruder Screw And Barrel

Plastic Extruding Machine Screw And Barrel

Double Screw Extruder Screw And Barrel

Payment & Shipping Terms

Minimum Order Quantity

1 set for Screw And Barrel For Plastic Extruder / Extruding Machine Single Screw Double Screw

Price

USD1000/set - USD30000/set for Screw And Barrel For Plastic Extruder / Extruding Machine Single Screw Double Screw

Packaging Details

Standard export packaging for Screw And Barrel For Plastic Extruder / Extruding Machine Single Screw Double Screw

Delivery Time

10-30 work days for Screw And Barrel For Plastic Extruder / Extruding Machine Single Screw Double Screw

Payment Terms

L/C, T/T

Supply Ability

100 sets per month for Screw And Barrel For Plastic Extruder / Extruding Machine Single Screw Double Screw

ryan@hypet.com.cn

+86-755-25851030

Contact Now

Product Description

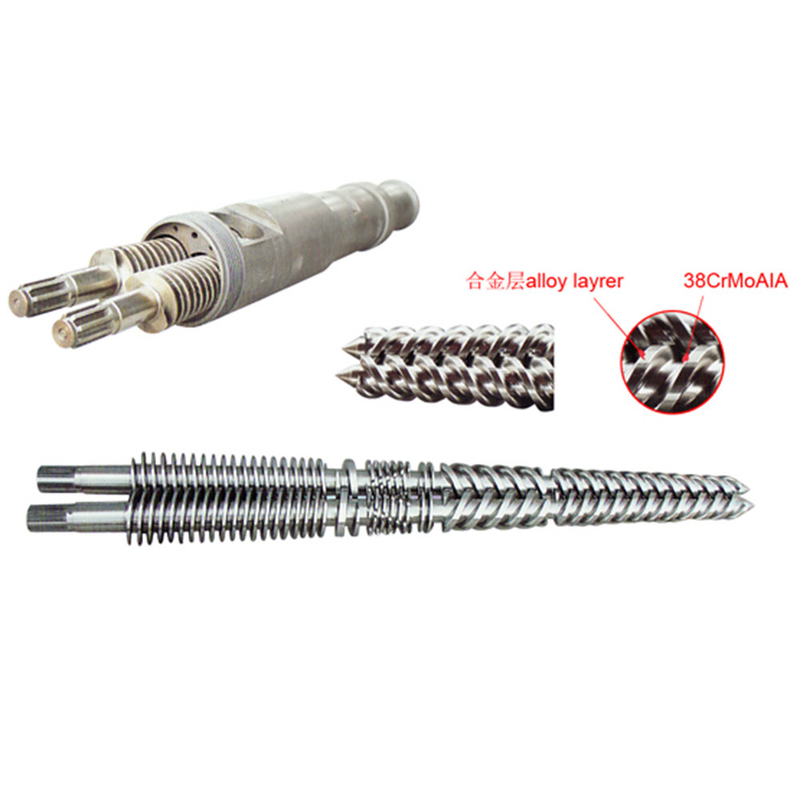

Screw And Barrel For Plastic Extruder / Extruding Machine Single Screw Double Screw

Product Description

a. Advanced Nitriding Technology .

b. Anti-corrosion and Wear-resisting Duplex Metal Spraying Technology .

c. we uses special alloy powders being sprayed and welded on the screw's ridge,and uses different alloy and welding methods for the screw of different functions .

Specification

screw diameter	Φ20-Φ200mm
Maximum screw length	7600mm
Barrel inner bore diameter	Max Φ200mm
Materail	A. 38crmoala in high quality B. alloy steel in high quality
Technology	A. nitriding treatment B. alloy coating spraying C. heating treatment D. screw fully hardening E. vacuum quenching F: electroplate hard chrome
Technical parameter	A: depth of nitrition layer: 0.6-0.8mm B: nitriding treatment for 7 day and night, surface hardness HV>900 C: fragility of nitriding: less than grade 1 D: surface roughness: ra0.4um E: streightness of screw: 0.015mm F: depth of bimetallic layer>2mm G: hardness of alloy platig: HRC 62-72 H: surface of hardness of chrome coating layer: HRC 62-72 I: thickness of chrome coating layer: 0.03-0.06mm

Screw And Barrel For Plastic Extruder / Extruding Machine Single Screw Double Screw 0
