Popular China Water Chiller Model HYAC-25AD In Fan Cooling Type

Popular China Water Chiller Model HYAC-25AD In Fan Cooling Type

Fan Cooling Water Chiller

25AD Water Chiller

HYAC-25AD Water Chiller

Place of Origin:

China

Brand Name:

Hypet

Certification:

ISO9001,CE

Model Number:

HYAC-25AD Water Chiller

Contact Us
Request A Quote
Product Details
Key Parts Warranty:
1year
Engineer Installation Service:
Yes
Cooling Method:
Fan Cooling
Rotating Speed:
54644 R/min
Power Supply:
380V/3P/50Hz
Max Power Consumption:
21.39 Kw
Highlight:

Fan Cooling Water Chiller

,

25AD Water Chiller

,

HYAC-25AD Water Chiller

Payment & Shipping Terms
Minimum Order Quantity
1set
Price
USD 7400/set
Packaging Details
Standard Package for sea shipment
Delivery Time
35~45days
Payment Terms
L/C, T/T
Supply Ability
50set/month
Product Description

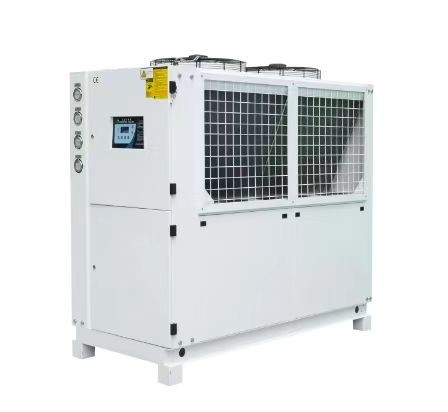

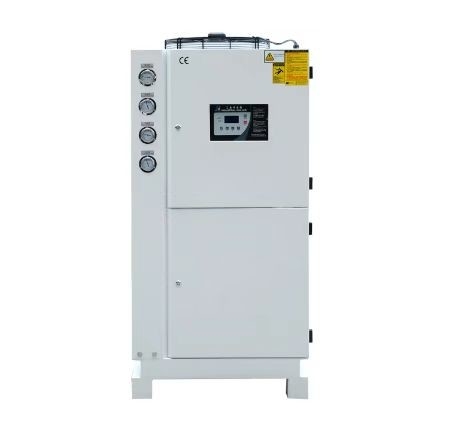

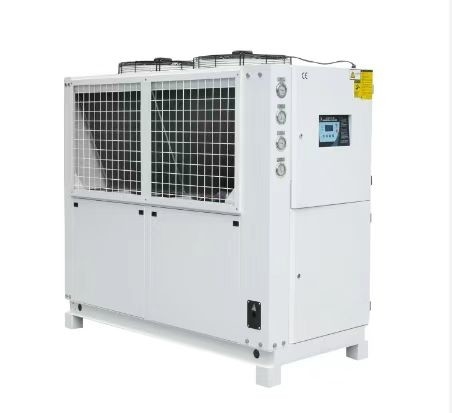

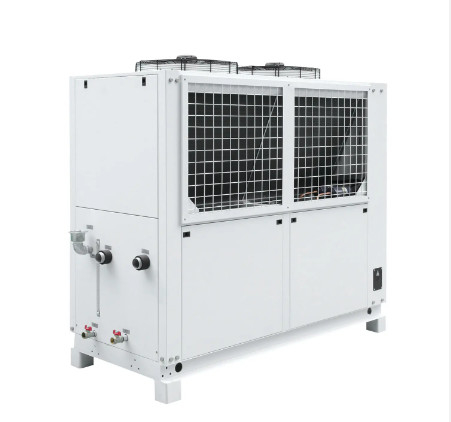

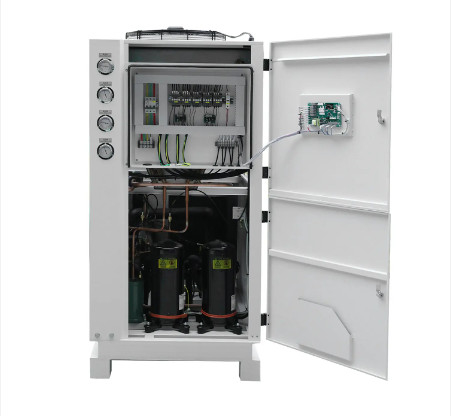

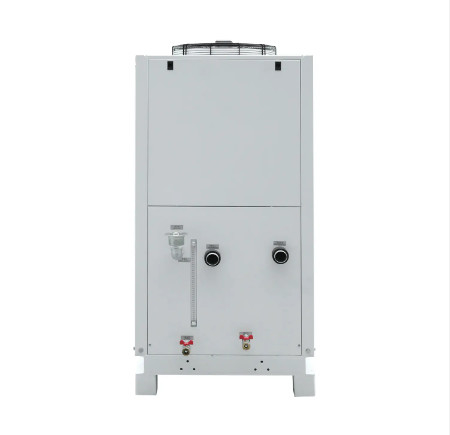

1. HYAC-25AD Water Chiller

Popular China Water Chiller Model HYAC-25AD In Fan Cooling Type 0Popular China Water Chiller Model HYAC-25AD In Fan Cooling Type 1Popular China Water Chiller Model HYAC-25AD In Fan Cooling Type 2Popular China Water Chiller Model HYAC-25AD In Fan Cooling Type 3Popular China Water Chiller Model HYAC-25AD In Fan Cooling Type 4Popular China Water Chiller Model HYAC-25AD In Fan Cooling Type 5
2.HYPET Special features

1). This machine selects scroll type fully hermetic compressor and electronic control element, equipped with condenser and evaporator made of high efficiency and high quality copper tube for heat exchange;
2). Equipped with all kinds of safety protection devices, stable performance, low noise, long service life, simple operation; LCD display man-machine interface, easy to operate,operation status at a glance;
3). The model has a single compressor or multiple compressor combined refrigeration system. The compressor can automatically rotate according to the load change, balance the running hours of each compressor, to achieve the effect of saving energy consumption and extending the service life of the chiller. Easy energy regulation, more energy saving at partial load;
4). The machine shell box type structure, beautiful appearance, compact structure, can check the running status at any time; The machine can come with water tank and circulating water pump according to the cooling capacity, no need cooling tower and cooling water pump, easy to install and maintain.


3.Commercial items

SN Item Quantity Unit Price/USD Total Price/USD
1 Industrial Water Chiller HYAC-25AD 1 7400 7400

      Total in EXW




4.Main Specification of the Machine

Item Specification
Model HYAC-25AD
Nominal Cooling Capacity 7 ℃ kcal/h 54644
kw 63.54
12 ℃ kcal/h 64663
kw 75.19
Max Power Consumption kw 21.39
Power Source 3PH 380-415V 50HZ/60HZ
Refrigerant Type   R22(R407C/R410A/R134A/R404A)
control   Thermostatic expansion valve
Compressor Type   Hermetic Scroll
Power kw 9.095 × 2
Condenser Type   Efficient finned copper tube+high air volume low noise external rotor fan
Air Volume   25000
Fan Motor kw 0.8 × 2
Evaporator Type   Shell and tube+SS tank or SS coil in SS tank
Coolant Flow m3/h 10.06
Tank Volume liter 350
Inlet and Outlet inch 2
Water pump Power kw 1.6
Flow m3/h 16
Head m 20
Unit Protection Modules Motor Overload, High&Low Pressure, Chilled Water Over Temperature, Flow switch, Tank Level switch, phase protection, anti-freezing protection
Dimension Length mm 2070
Width mm 950
Height mm 1950
Weight kg 810






5.Cooperative Brands:
Popular China Water Chiller Model HYAC-25AD In Fan Cooling Type 6



6.Exhibition:
Popular China Water Chiller Model HYAC-25AD In Fan Cooling Type 7
