Made in China manufacturer Air compressor BLT-15A in both piston type and screw type for industrial factory

Name: Made in China manufacturer Air compressor BLT-15A in both piston type and screw type for industrial factory
Brand: Shenzhen HYPET Co., Ltd.
SKU: BLT-15A Air Compressor
Price: 3400 USD
Availability: InStock

Brand Name:	Hypet
Model Number:	BLT-15A Air Compressor
MOQ:	1set
Price:	USD 3400/set
Delivery Time:	35~45days
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001,CE

Key Parts Warranty:

1year

Engineer Installation Service:

Yes

Cooling Method:

Air Cooling

Rotating Speed:

2900 R/min

Power Supply:

380V/3P/50Hz

Motor Power:

11 Kw

Packaging Details:

Standard Package for sea shipment

Supply Ability:

50set/month

Highlight:

Piston Type Air Compressor

Industrial Factory Air Compressor

Screw Type Air Compressor

Product Description

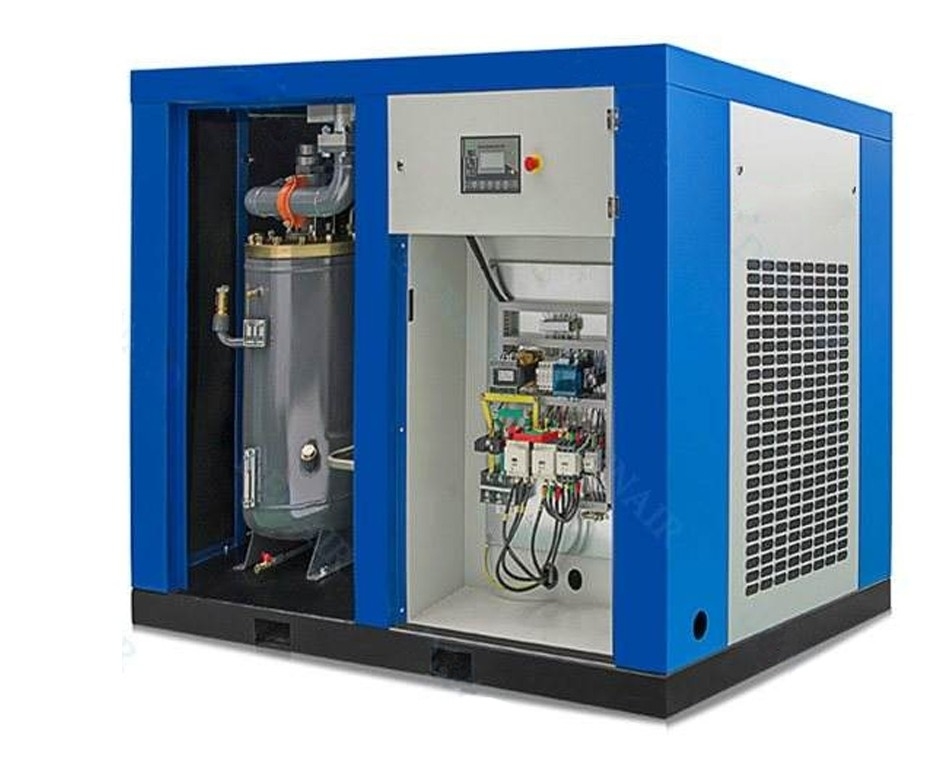

1. BLT-15A Air Compressor

Made in China manufacturer Air compressor BLT-15A in both piston type and screw type for industrial factory 0

2.HYPET Special features

1). Excellent design ability and rich experience, follow strict development process and testing standards, reliable quality assurance.

2). High quality core parts, high processing precision, low vibration, low noise, to ensure reliable operation.

3). Intelligent control system, LCD Chinese and English display, powerful protection function, a variety of signal output.

4). Electrical system standardized design, safe and reliable; Professional wiring interface, easy to maintain.

5). Modular design, no leakage, low pressure loss, easier maintenance.

6). High quality motor, efficient design, longer life.

7). Efficient and strong cooling design, pre-filtration protection.

3.Commercial items

SN	Item	Quantity	Unit Price/USD Total Price/USD
1	Air compressor HYBLT-15A	1	3400	3400
2	Assist equipment	1	1460	1460

			Total in EXW

4.Main Specification of the Machine

SN	Description	Specification
1	Model	BLT-15A
2	Displacement	1.7 m³/min	1.65 m³/min	1.45 m³/min	1.22 m³/min
3	Intake pressure	0.1003 MPa
4	Ambient temperature	0-45 ℃
5	Exhaust pressure	0.7 MPa	0.8 MPa	1 MPa	1.3 MPa
6	cooling method	Air cooling
7	Exhaust gas temperature	﹤Environment temperature +15 ℃
8	transfer method	By belt
9	Gas outlet oil	≤3 PPm
10	Main motor model	Y2-132M1-2
11	Power	11 kw
12	Rotating speed	2900 r/min
13	Motor bearing model	SKF
14	Voltage	380V/50Hz
15	Main motor insulation class	F
16	Main motor protection class	IP54
17	Start mode	Y-▲
18	Unit noise	62±2 dB(A)
19	Dimension (LWH)	960x810x970 mm
20	Weight	220 kg
21	Outlet diameter	G3/4 Inch
