Name: Hotsale China manufacturer Air compressor BLT-20A in both piston type and screw type
Brand: Shenzhen HYPET Co., Ltd.
SKU: BLT-20A Air Compressor
Price: 3600 USD
Availability: InStock

Home > products > Auxiliary Machine and Parts >

Hotsale China manufacturer Air compressor BLT-20A in both piston type and screw type

China manufacturer Air compressor

piston type Air compressor

screw type Air compressor

Place of Origin:

China

Brand Name:

Hypet

Certification:

ISO9001,CE

Model Number:

BLT-20A Air Compressor

Request A Quote

Hotsale China manufacturer Air compressor BLT-20A in both piston type and screw type

Product Details

Key Parts Warranty:

1year

Engineer Installation Service:

Yes

Cooling Method:

Air Cooling

Rotating Speed:

2895 R/min

Power Supply:

380V/3P/50Hz

Motor Power:

15 Kw

Highlight:

China manufacturer Air compressor

piston type Air compressor

screw type Air compressor

Payment & Shipping Terms

Minimum Order Quantity

1set

Price

USD 3600/set

Packaging Details

Standard Package for sea shipment

Delivery Time

35~45days

Payment Terms

L/C, T/T

Supply Ability

50set/month

China Air compressor BLT-10A in both piston type and screw type for sale

Get Best Price

SRL Vertical PVC mixing hot/cold high speed mixer maching 300/600L for PVC product and high filler pellets

Get Best Price

Air compressor BLT-40A for industrial factory using from China

Get Best Price

New Model Air compressor BLT-30A in both piston type and screw type for industrial factory

Get Best Price

+8615002772815

ryan@hypet.com.cn

+86-755-25851030

Contact Now

Product Description

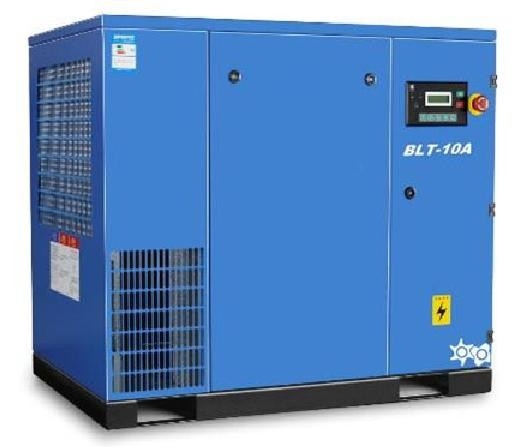

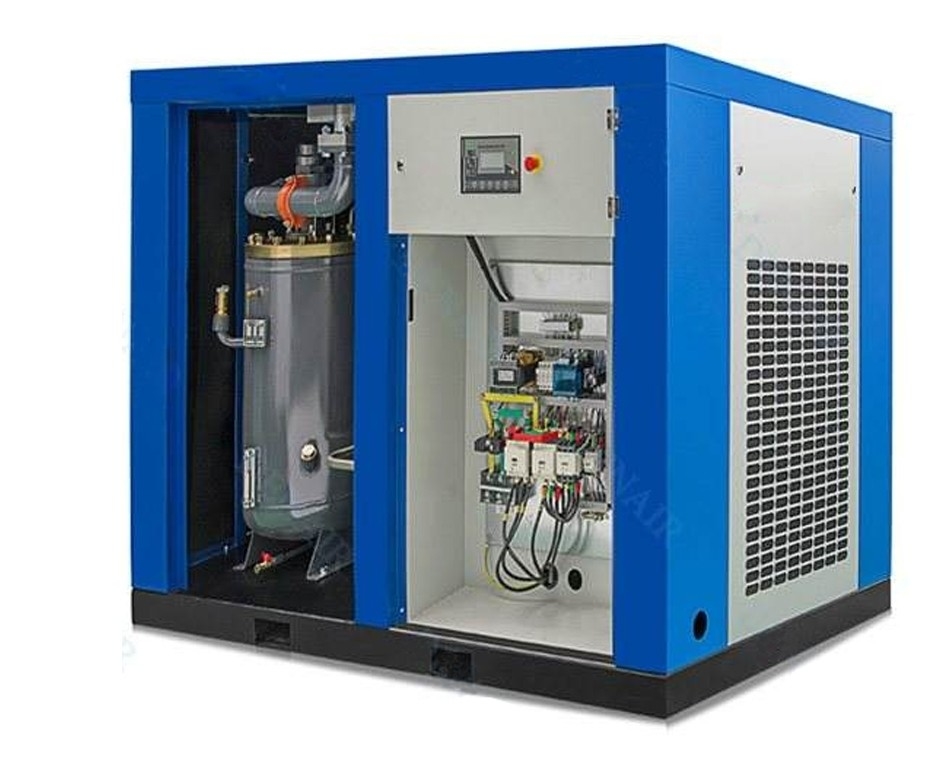

1. BLT-20A Air Compressor

Hotsale China manufacturer Air compressor BLT-20A in both piston type and screw type 0

2.HYPET Special features

1). Excellent design ability and rich experience, follow strict development process and testing standards, reliable quality assurance.

2). High quality core parts, high processing precision, low vibration, low noise, to ensure reliable operation.

3). Intelligent control system, LCD Chinese and English display, powerful protection function, a variety of signal output.

4). Electrical system standardized design, safe and reliable; Professional wiring interface, easy to maintain.

5). Modular design, no leakage, low pressure loss, easier maintenance.

6). High quality motor, efficient design, longer life.

7). Efficient and strong cooling design, pre-filtration protection.

3.Commercial items

SN	Item	Quantity	Unit Price/USD Total Price/USD
1	Air compressor HYBLT-20A	1	3600	3600
2	Assist equipment	1	1460	1460

			Total in EXW

4.Main Specification of the Machine

SN	Description	Specification
1	Model	BLT-20A
2	Displacement	2.1 m³/min	2.1 m³/min	1.9 m³/min	1.5 m³/min
3	Intake pressure	0.1003 MPa
4	Ambient temperature	0-45 ℃
5	Exhaust pressure	0.7 MPa	0.8 MPa	1 MPa	1.3 MPa
6	cooling method	Air cooling
7	Exhaust gas temperature	﹤Environment temperature +15 ℃
8	transfer method	By belt
9	Gas outlet oil	≤3 PPm
10	Main motor model	Y2-132M2-2
11	Power	15 kw
12	Rotating speed	2895 r/min
13	Motor bearing model	SKF
14	Voltage	380V/50Hz
15	Main motor insulation class	F
16	Main motor protection class	IP54
17	Start mode	Y-▲
18	Unit noise	63±2 dB(A)
19	Dimension (LWH)	960x810x970 mm
20	Weight	230 kg
21	Outlet diameter	G3/4 Inch
