SRL Vertical PVC mixing hot/cold high speed mixer maching 300/600L for PVC product and high filler pellets

Name: SRL Vertical PVC mixing hot/cold high speed mixer maching 300/600L for PVC product and high filler pellets
Brand: Shenzhen HYPET Co., Ltd.
SKU: 300/600 hot cold mixer
Price: 15700 USD
Availability: InStock

Brand Name:	Hypet
Model Number:	300/600 hot cold mixer
MOQ:	1set
Price:	USD 15700/set
Delivery Time:	35~45days
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001,CE

Motor Power:

55KW

Cooling Way:

Water Cooling

Structure:

Vertical

Max Output:

500-600 Kg/h (Depend On Formulation)

Key Parts Warranty:

1year

Engineer Installation Service:

Yes

Packaging Details:

Standard Package for sea shipment

Supply Ability:

50set/month

Highlight:

Vertical high speed mixer

300/600L high speed mixer

PVC product high speed mixer

Product Description

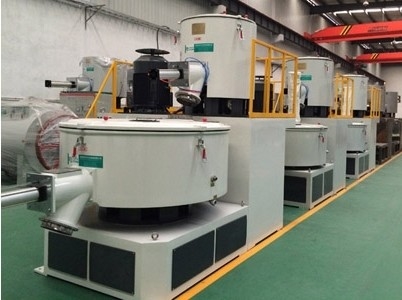

1.300/600 hot cold mixer
SRL Vertical PVC mixing hot/cold high speed mixer maching 300/600L for PVC product and high filler pellets 0

SRL Vertical PVC mixing hot/cold high speed mixer maching 300/600L for PVC product and high filler pellets 1

2.Speciality of HYPET 300/600 hot cold mixer

SN	Speciality
1	For a variety of plastic ingredients, mixing, drying, coloring and other processes, it’s the ideal choice for profiles and pipe manufacturers.
2	Cold machine with horizontal structure, with cooling area, speed, more uniform characteristics;
3	The lid to take double-sealed, open the lid using pneumatic mode;
4	Vane, pulley, etc. are through the static, dynamic balance testing machine special treatment.
5	It can be used for mixing raw PVC material with additives, it consist of hot mixer and cold mixer

3.Commercial items

SN	Item	Quantity
1	300/600 hot cold mixer	1
2	Inverter in Delta brand in 55kw for option	1
3	Auto-loader in screw type 6 m long for option	1

4.Main Specification of the Machine

SN	Type	Specification	Description
1	Model	300/600
2	Structure	Vertical
3	Hot mixing tank	General capacity	300L
		Effective capacity	225L
		Feeding cappacity	110kg/batch
		Output	500-600 kg/h (Depend on formulation)
		Motor Power	55kw
		Mixing time	10-12 min/batch
		Wall thickness	8-10mm
4	Cold mixing tank	General capacity	600L
		Effective capacity	390L
		Motor Power	11kw
		mixer structure	Vertical
		cooling way	Water cooling
		cooling time	8min
		wall thickness	8-10mm
5	Packing information	with inverter Delta	No
		weight kg	3500 kg
		Dimension	4800 x 2200 x 2554mm
