Small size SRL 100/200 of vertical hot speed mixer machine for PVC raw material in lab using /small scale PVC using

Small size SRL 100/200 of vertical hot speed mixer machine for PVC raw material in lab using /small scale PVC using

Small size SRL 100/200 of vertical hot speed mixer machine for PVC raw material in lab using /small scale PVC using

Brand Name:	Hypet
Model Number:	100/200 hot cold mixer
MOQ:	1set
Price:	USD 9200/set
Delivery Time:	35~45days
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001,CE

Motor Power:

22KW

Cooling Way:

Water Cooling

Structure:

Vertical

Max Output:

110-130 Kg/h (Depend On Formulation)

Key Parts Warranty:

1year

Engineer Installation Service:

Yes

Packaging Details:

Standard Package for sea shipment

Supply Ability:

50set/month

Highlight:

Small size SRL 100/200

,

lab using mixer machine

,

PVC raw material mixer machine

Product Description

1.100/200 hot cold mixer

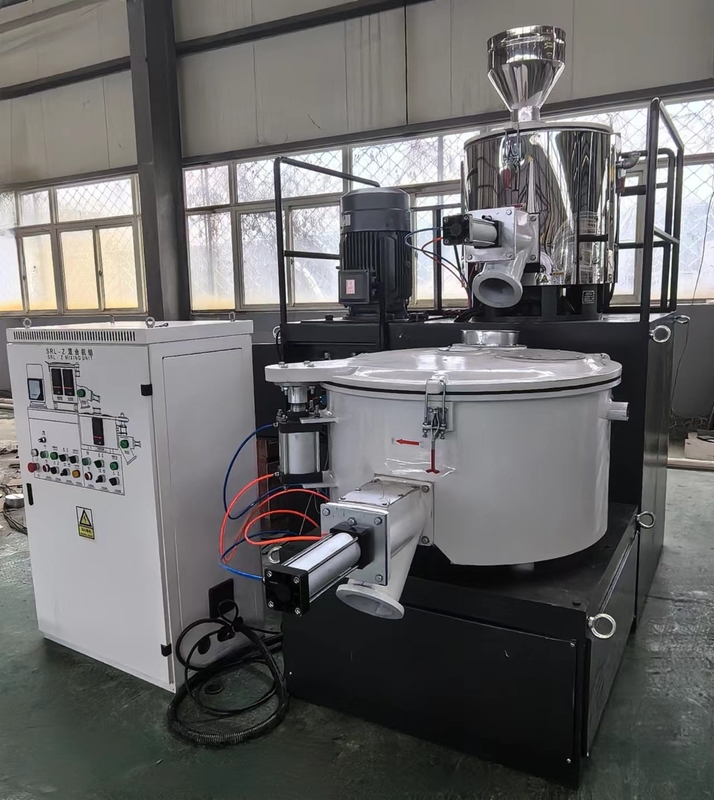

Small size SRL 100/200 of vertical hot speed mixer machine for PVC raw material in lab using /small scale PVC using 0

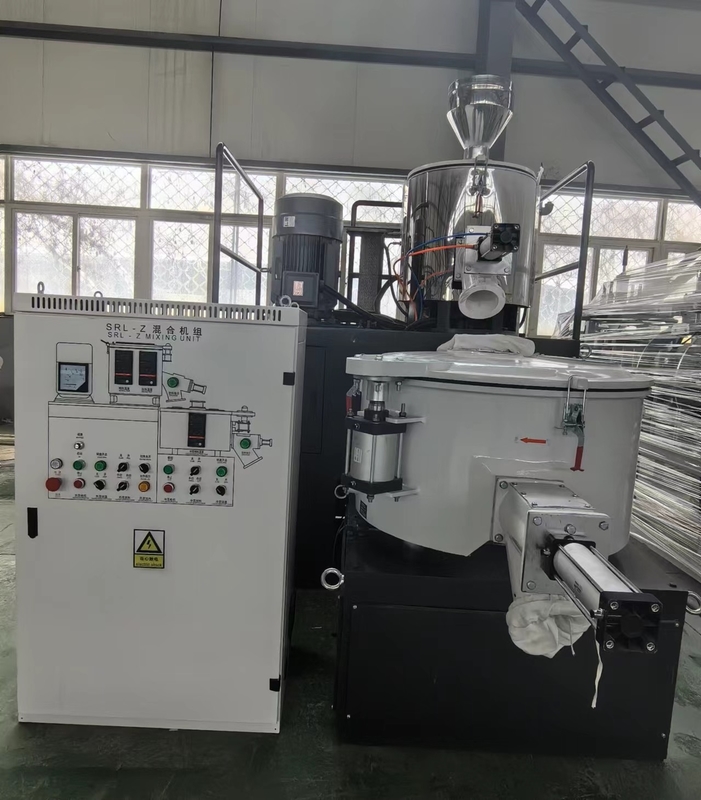

Small size SRL 100/200 of vertical hot speed mixer machine for PVC raw material in lab using /small scale PVC using 1

2.Speciality of HYPET 100/200 hot cold mixer

SN	Speciality
1	For a variety of plastic ingredients, mixing, drying, coloring and other processes, it’s the ideal choice for profiles and pipe manufacturers.
2	Cold machine with horizontal structure, with cooling area, speed, more uniform characteristics;
3	The lid to take double-sealed, open the lid using pneumatic mode;
4	Vane, pulley, etc. are through the static, dynamic balance testing machine special treatment.
5	It can be used for mixing raw PVC material with additives, it consist of hot mixer and cold mixer

3.Commercial items

SN	Item	Quantity
1	100/200 hot cold mixer	1
2	Inverter in Delta brand in 22kw for option	1
3	Auto-loader in screw type 6 m long for option	1

4.Main Specification of the Machine

SN	Type	Specification	Description
1	Model	100/200
2	Structure	Vertical
3	Hot mixing tank	General capacity	100L
		Effective capacity	75L
		Feeding cappacity	33kg/batch
		Output	110-130 kg/h (Depend on formulation)
		Motor Power	22kw
		Mixing time	8-10 min/batch
		Wall thickness	8-10 mm
4	Cold mixing tank	General capacity	200L
		Effective capacity	140L
		Motor Power	5.5kw
		mixer structure	Vertical
		cooling way	Water cooling
		cooling time	8-15min/pan
		wall thickness	6-8mm
5	Packing information	with inverter Delta	No
		weight kg	1600 kg
		Dimension	3300 x 2100 x 2679 mm

5.Cooperative Brands:

6.Exhibition:
