Name: High quality big size Vertical PVC machine mixer SRL 500/1000 for PVC pipe, PVC profile sheet / WPC SPC Deck floor panel
Brand: Shenzhen HYPET Co., Ltd.
SKU: 500/1000 hot cold mixer
Price: 16000 USD
Availability: InStock

Home > products > Auxiliary Machine and Parts >

High quality big size Vertical PVC machine mixer SRL 500/1000 for PVC pipe, PVC profile sheet / WPC SPC Deck floor panel

High quality PVC machine mixer

SRL 500/1000 PVC machine mixer

Big size PVC machine mixer

Place of Origin:

China

Brand Name:

Hypet

Certification:

ISO9001,CE

Model Number:

500/1000 hot cold mixer

Request A Quote

Product Details

Motor Power:

75KW

Cooling Way:

Water Cooling

Structure:

Vertical

Max Output:

700-800 Kg/h (Depend On Formulation)

Key Parts Warranty:

1year

Engineer Installation Service:

Yes

Highlight:

High quality PVC machine mixer

SRL 500/1000 PVC machine mixer

Big size PVC machine mixer

Payment & Shipping Terms

Minimum Order Quantity

1set

Price

USD 16000/set

Packaging Details

Standard Package for sea shipment

Delivery Time

35~45days

Payment Terms

L/C, T/T

Supply Ability

50set/month

China Air compressor BLT-10A in both piston type and screw type for sale

Get Best Price

SRL Vertical PVC mixing hot/cold high speed mixer maching 300/600L for PVC product and high filler pellets

Get Best Price

Air compressor BLT-40A for industrial factory using from China

Get Best Price

New Model Air compressor BLT-30A in both piston type and screw type for industrial factory

Get Best Price

+8615002772815

ryan@hypet.com.cn

+86-755-25851030

Contact Now

Product Description

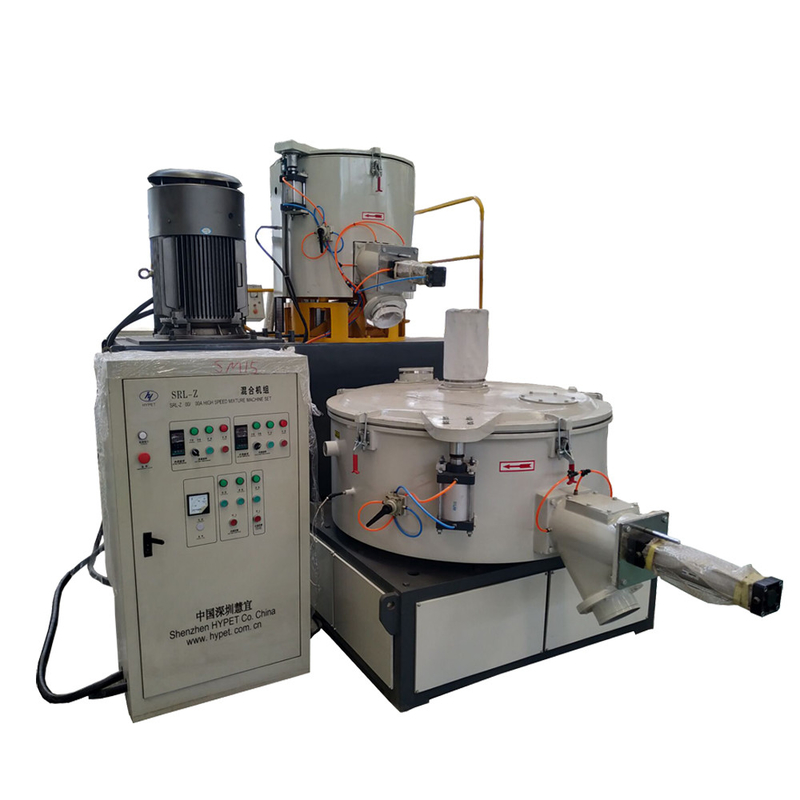

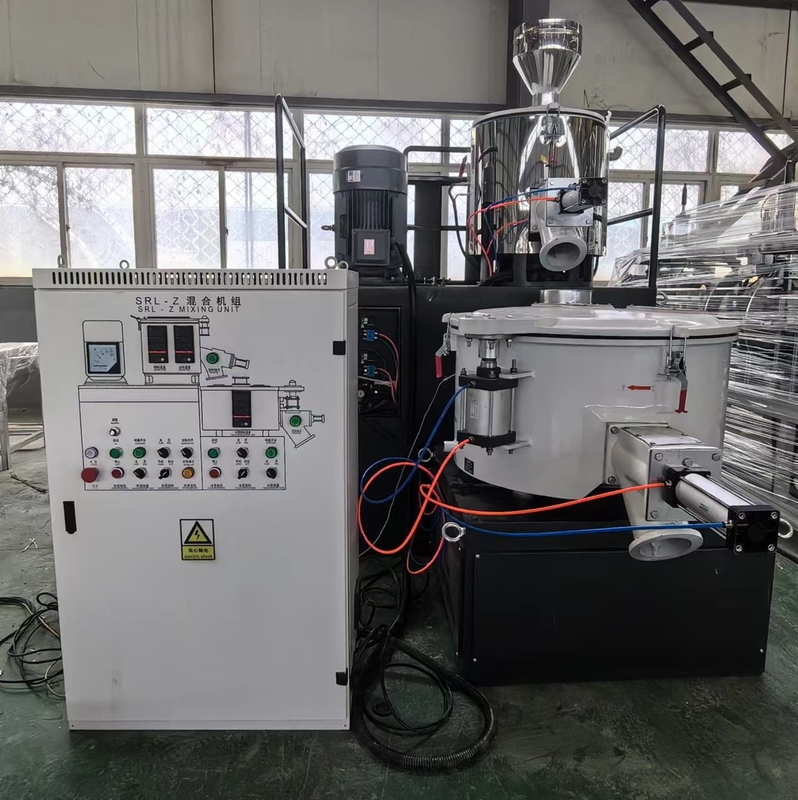

1.500/1000 hot cold mixer
High quality big size Vertical PVC machine mixer SRL 500/1000 for PVC pipe, PVC profile sheet / WPC SPC Deck floor panel 0

High quality big size Vertical PVC machine mixer SRL 500/1000 for PVC pipe, PVC profile sheet / WPC SPC Deck floor panel 1

2.Speciality of HYPET 500/1000 hot cold mixer

SN	Speciality
1	For a variety of plastic ingredients, mixing, drying, coloring and other processes, it’s the ideal choice for profiles and pipe manufacturers.
2	Cold machine with horizontal structure, with cooling area, speed, more uniform characteristics;
3	The lid to take double-sealed, open the lid using pneumatic mode;
4	Vane, pulley, etc. are through the static, dynamic balance testing machine special treatment.
5	It can be used for mixing raw PVC material with additives, it consist of hot mixer and cold mixer

3.Commercial items

SN	Item	Quantity
1	500/1000 hot cold mixer	1

	For option
	Inverter in Delta brand	1

4.Main Specification of the Machine

SN	Type	Specification	Description
1	Model	500/1000
2	Structure	Vertical
3	Hot mixing tank	General capacity	500L
		Effective capacity	375L
		Feeding cappacity	160kg/batch
		Output	700-800 kg/h (Depend on formulation)
		Motor Power	75kw
		Mixing time	10-12 min/batch
		Wall thickness	8-10mm
4	Cold mixing tank	General capacity	1000L
		Effective capacity	640L
		Motor Power	18.5 kw
		mixer structure	Vertical
		cooling way	Water cooling
		cooling time	8-10min
		wall thickness	8-10mm
5	Packing information	with inverter Delta	Yes
		weight kg	4500 kg
		Dimension	5524 x 2500 x 3120 mm
