Name: SRL1300/4500L big mixer mixing machine for color / recycled material / different chemical material togethr mixing
Brand: Shenzhen HYPET Co., Ltd.
SKU: 1300/4500 hot cold mixer
Price: 58700 USD
Availability: InStock

Home > products > Auxiliary Machine and Parts >

SRL1300/4500L big mixer mixing machine for color / recycled material / different chemical material togethr mixing

big mixer mixing machine

color big mixer mixing machine

color mixer mixing machine

Place of Origin:

China

Brand Name:

Hypet

Certification:

ISO9001,CE

Model Number:

1300/4500 hot cold mixer

Request A Quote

SRL1300/4500L big mixer mixing machine for color / recycled material / different chemical material togethr mixing

Product Details

Motor Power:

200KW

Cooling Way:

Water Cooling

Structure:

Horizontal

Max Output:

1960-2400 Kg/h (Depend On Formulation)

Key Parts Warranty:

1year

Engineer Installation Service:

Yes

Highlight:

big mixer mixing machine

color big mixer mixing machine

color mixer mixing machine

Payment & Shipping Terms

Minimum Order Quantity

1set

Price

USD 58700/set

Packaging Details

Standard Package for sea shipment

Delivery Time

35~45days

Payment Terms

L/C, T/T

Supply Ability

50set/month

China Air compressor BLT-10A in both piston type and screw type for sale

Get Best Price

SRL Vertical PVC mixing hot/cold high speed mixer maching 300/600L for PVC product and high filler pellets

Get Best Price

Air compressor BLT-40A for industrial factory using from China

Get Best Price

New Model Air compressor BLT-30A in both piston type and screw type for industrial factory

Get Best Price

+8615002772815

ryan@hypet.com.cn

+86-755-25851030

Contact Now

Product Description

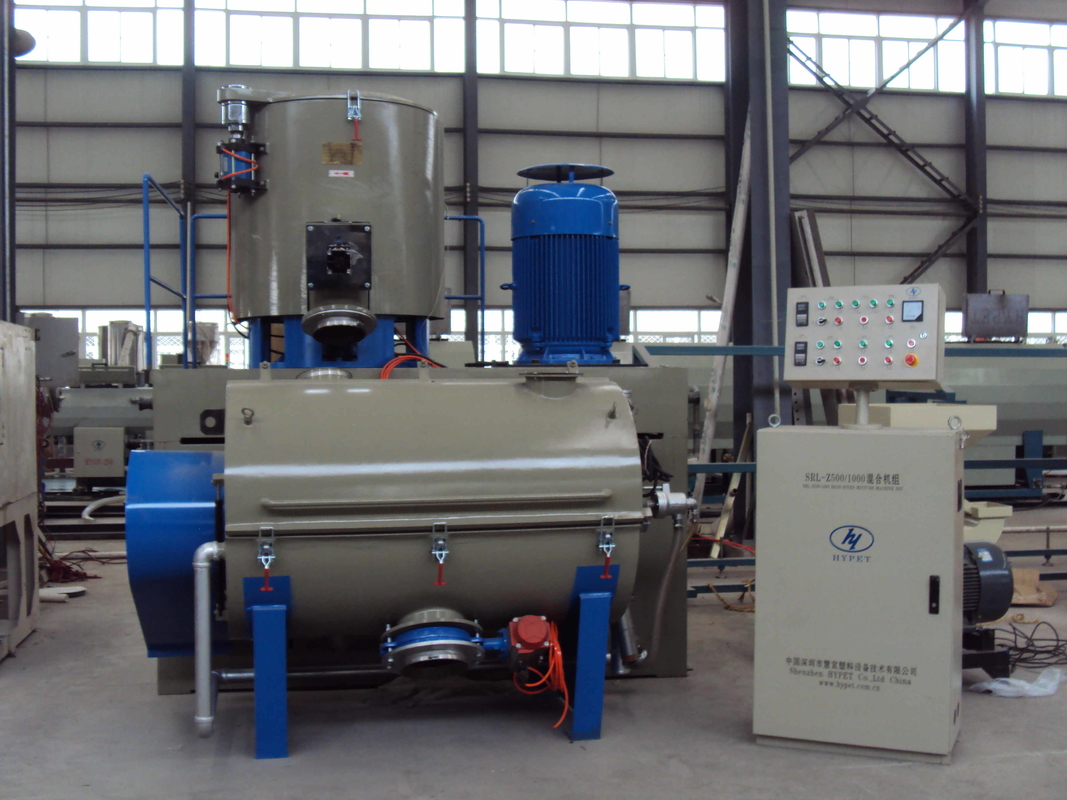

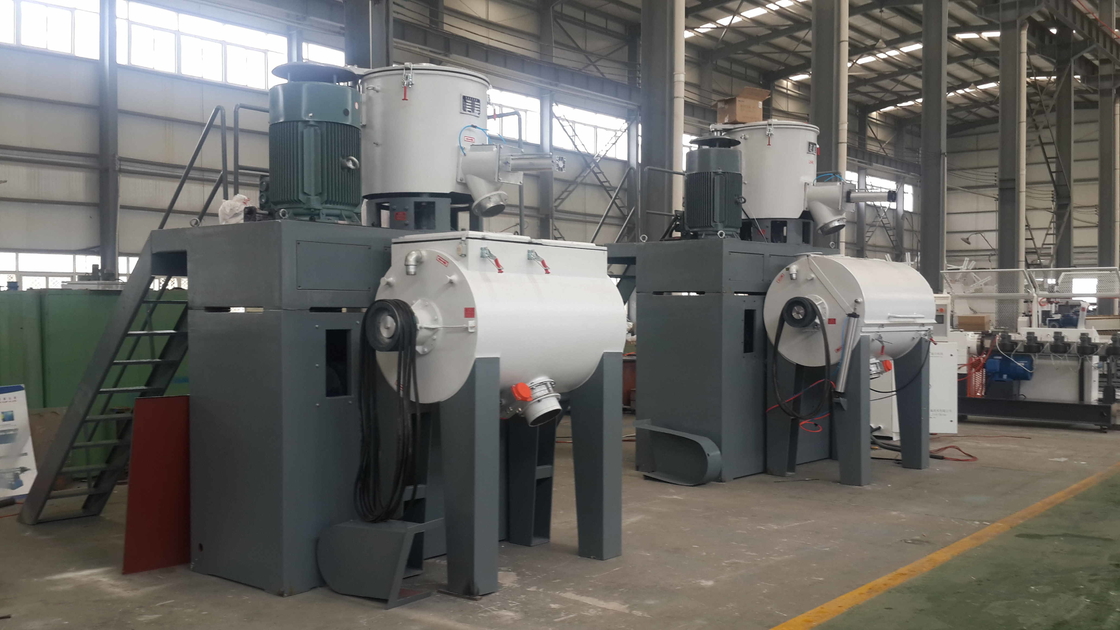

1.1300/4500 hot cold mixer
SRL1300/4500L big mixer mixing machine for color / recycled material / different chemical material togethr mixing 0

SRL1300/4500L big mixer mixing machine for color / recycled material / different chemical material togethr mixing 1

SRL1300/4500L big mixer mixing machine for color / recycled material / different chemical material togethr mixing 2

SRL1300/4500L big mixer mixing machine for color / recycled material / different chemical material togethr mixing 3

2.Speciality of HYPET 1300/4500 hot cold mixer

SN	Speciality
1	For a variety of plastic ingredients, mixing, drying, coloring and other processes, it’s the ideal choice for profiles and pipe manufacturers.
2	Cold machine with horizontal structure, with cooling area, speed, more uniform characteristics;
3	The lid to take double-sealed, open the lid using pneumatic mode;
4	Vane, pulley, etc. are through the static, dynamic balance testing machine special treatment.
5	It can be used for mixing raw PVC material with additives, it consist of hot mixer and cold mixer

3.Commercial items

SN	Item	Quantity	Unit Price/USD Total Price/USD
1	1300/4500 hot cold mixer	1	58700	58700

			Total in EXW	58700
	For option

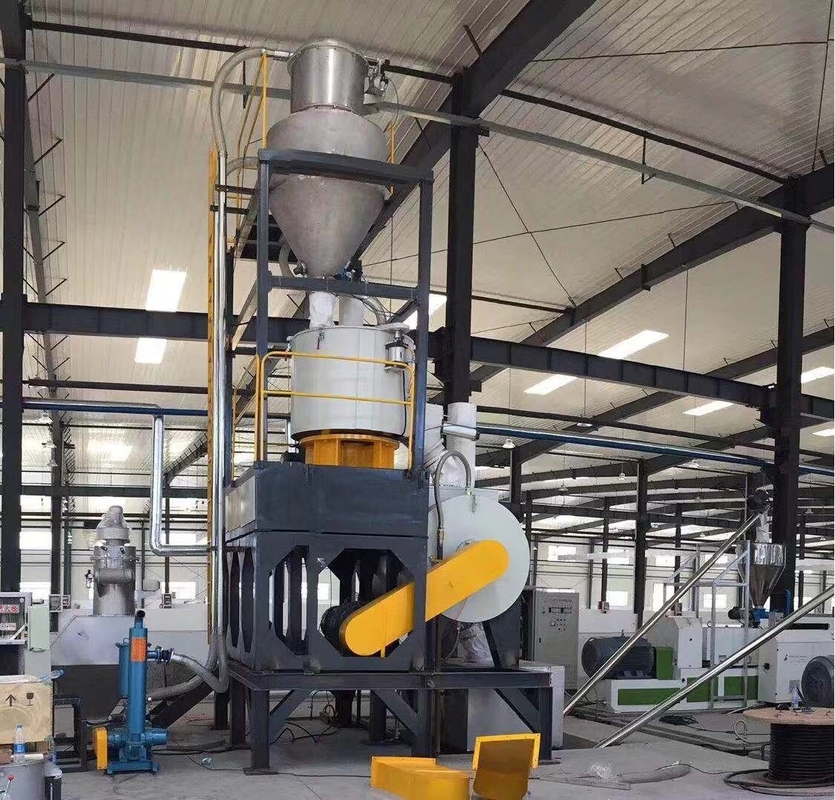

1	Raw material vacuum auto loader system for all mixer Including raw material station, and vacuum auto loader device	1	8500	8500
2	Auto-loader in screw type 6 m long	1	780	780
3	Material silo in 2.5 tons	1	2400	2400
4	Vacuum auto feeder to the extruder	1	7800	7800

4.Main Specification of the Machine

SN	Type	Specification	Description
1	Model	1300/4500
2	Structure	Horizontal
3	Hot mixing tank	General capacity	1300L
		Effective capacity	975L
		Feeding cappacity	490kg/batch
		Output	1960-2400 kg/h (Depend on formulation)
		Motor Power	200kw
		Mixing time	11-13 min/batch
		Wall thickness	8-12mm
4	Cold mixing tank	General capacity	4500L
		Effective capacity	2880L
		Motor Power	45kw
		mixer structure	Horizontal
		cooling way	Water cooling
		cooling time	8-10min
		wall thickness	8-12mm
5	Packing information	with inverter Delta	Yes
		weight kg	10000 kg
		Dimension	4397 x 3980 x 3880 mm

5.Cooperative Brands:

6.Exhibition:
