Name: Application for chilling cooling water Cooling tower Volume 50t HYCT50
Brand: Shenzhen HYPET Co., Ltd.
SKU: HYCT50 water cooling tower
Price: 1300 USD
Availability: InStock

Home > products > Auxiliary Machine and Parts >

Application for chilling cooling water Cooling tower Volume 50t HYCT50

50t Cooling tower

HYCT50 Cooling tower

chilling cooling water Cooling tower

Place of Origin:

China

Brand Name:

Hypet

Certification:

ISO9001,CE

Model Number:

HYCT50 water cooling tower

Request A Quote

Application for chilling cooling water Cooling tower Volume 50t HYCT50

Product Details

Key Parts Warranty:

1year

Engineer Installation Service:

Yes

Cooling Tower Type:

Counter Flow Round Water Tower

Cooling Capacity:

195200 Kcal/h

Power Supply:

380V/3P/50Hz

Motor Power:

1.5 Kw

Highlight:

50t Cooling tower

HYCT50 Cooling tower

chilling cooling water Cooling tower

Payment & Shipping Terms

Minimum Order Quantity

1set

Price

USD 1300/set

Packaging Details

Standard Package for sea shipment

Delivery Time

35~45days

Payment Terms

L/C, T/T

Supply Ability

50set/month

China Air compressor BLT-10A in both piston type and screw type for sale

Get Best Price

SRL Vertical PVC mixing hot/cold high speed mixer maching 300/600L for PVC product and high filler pellets

Get Best Price

Air compressor BLT-40A for industrial factory using from China

Get Best Price

New Model Air compressor BLT-30A in both piston type and screw type for industrial factory

Get Best Price

+8615002772815

ryan@hypet.com.cn

+86-755-25851030

Contact Now

Product Description

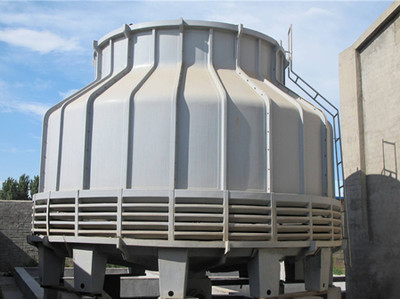

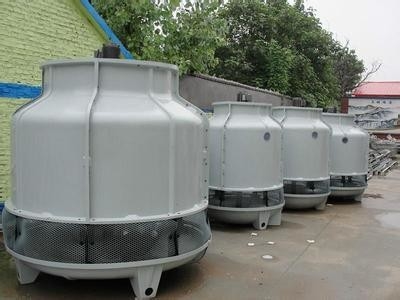

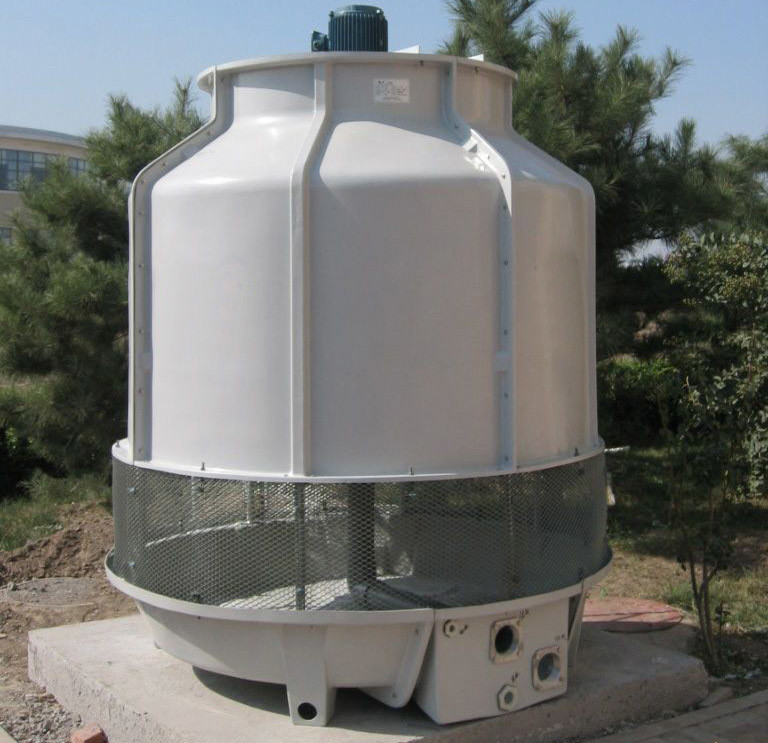

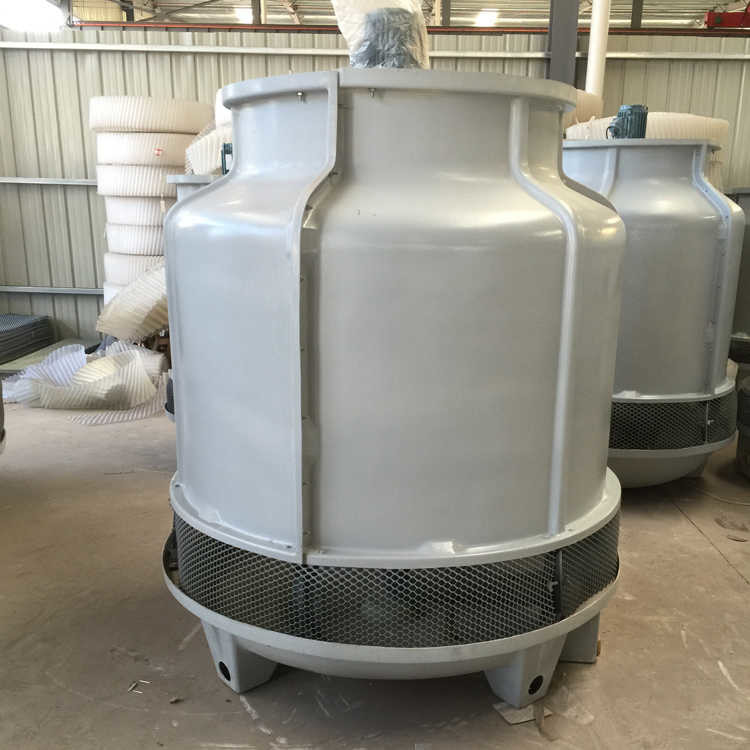

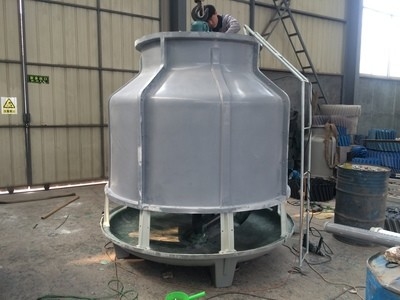

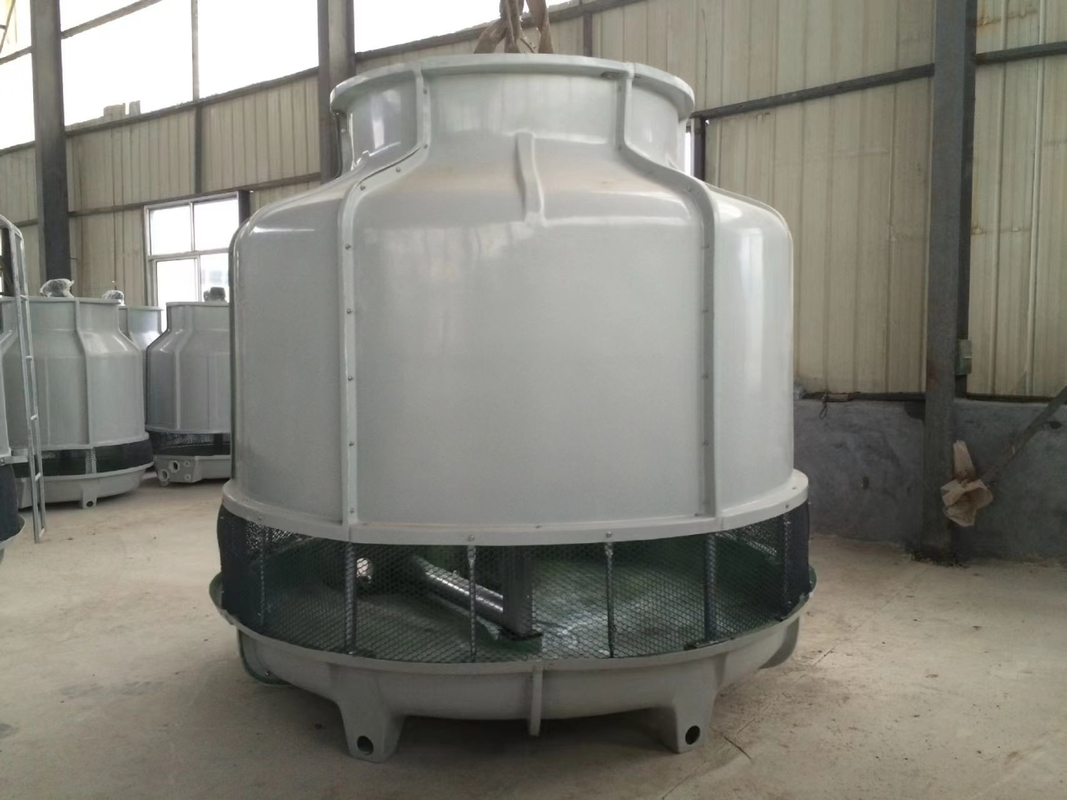

1. HYCT50 water cooling tower
Application for chilling cooling water Cooling tower Volume 50t HYCT50 0

Application for chilling cooling water Cooling tower Volume 50t HYCT50 1

Application for chilling cooling water Cooling tower Volume 50t HYCT50 2

Application for chilling cooling water Cooling tower Volume 50t HYCT50 4

2.HYPET Special features

1). The exterior of the tower body is made of imported gel coat,and the interior is made of high quality glass fiber reinforced plastic.

2). The applicable temperature of the normal temperature cooling tower packing is 0-60 degrees, which water distribution capacity is strong and the resistance is small.

3).Stainless steel bearings,flexible operation,even water distribution;ABS water pipe is used,and a water collecting plate is installed on the water pipe.

4). Low noise ABS fan blades designed according to cooling tower parameters.

5). The low-noise motor specially designed for cooling towers has strong power and long life.

6). It has the function of automatic switch pipeline and can control the water level.

3.Commercial items

SN	Item	Quantity	Unit Price/USD Total Price/USD
1	Water cooling tower HYCT50	1	1300	1300

				Total in EXW

4.Main Specification of the Machine

SN	Description	Specification
1	Cooling tower type	Counter flow round water tower
2	Cooling tower model	HYCT-50
3	Cooling circulating water volume	39.24 M³/h
4	Inlet water temperature/outlet water temperature	37 ℃/32 ℃
5	Ambient dry bulb/wet bulb temperature	31.5 ℃/27 ℃
6	Cooling capacity	195200 kcal/h
7	Noise value	57.5 dB(A)
8	Power Supply	380V/3P/50Hz
9	Water quality requirements	PH= 6-8
10	Gas-water ratio	0.62 kg/kg
11	Flying water loss	≤0.02%
12	Evaporation loss	≤0.833%
13	Net weight	190kg
14	Operating weight	975kg
15	Fan type	Axial flow type
16	Air volume	21580 M³/h
17	Fan speed	910 r/min
18	Blade diameter	930 mm
19	Number of blades	4 pcs/set
20	Transmission mode	Direct drive
21	motor speed	910 r/min
22	Motor power	1.5 kw
23	Motor start mode	Direct start
24	Water tower diameter	1895 mm
25	Water tower height	2180 mm
26	Size of inlet/outlet pipe	80 mm/80 mm
27	Size of full pipe/drain pipe	25 mm/25 mm
28	Automatic water filling size	15 mm
29	Motor	Fully enclosed waterproof type
30	Fan	A.B.S
31	Shell body	High quality glass fiber mat and resin synthesis
32	basin	High quality glass fiber mat and resin synthesis
33	Sprinkler system	PVC
34	film	PVC, Flame retardant type
35	Float valve	PVC
36	Air inlet system	PVC
