BLT-50A Air Compressor Model for with 1-Year Key Parts and 380V/3P/50Hz Power Supply

Name: BLT-50A Air Compressor Model for with 1-Year Key Parts and 380V/3P/50Hz Power Supply
Brand: Shenzhen HYPET Co., Ltd.
SKU: BLT-50A Air Compressor
Price: 7800 USD
Availability: InStock

Brand Name:	Hypet
Model Number:	BLT-50A Air Compressor
MOQ:	1set
Price:	USD 7800/set
Delivery Time:	35~45days
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001,CE

Key Parts Warranty:

1year

Engineer Installation Service:

Yes

Cooling Method:

Air Cooling

Rotating Speed:

2940 R/min

Power Supply:

380V/3P/50Hz

Motor Power:

37 Kw

Packaging Details:

Standard Package for sea shipment

Supply Ability:

50set/month

Highlight:

380V Air Compressor Model

3P Air Compressor Model

BLT-50A Air Compressor Model

Product Description

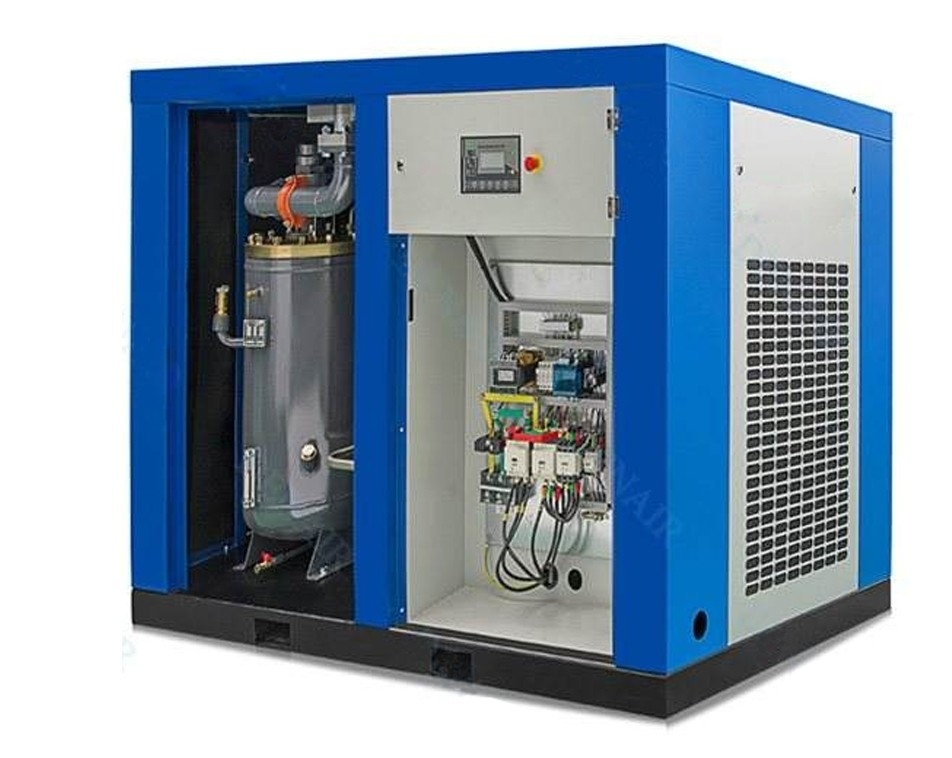

1. BLT-50A Air Compressor

BLT-50A Air Compressor Model for with 1-Year Key Parts and 380V/3P/50Hz Power Supply 0

2.HYPET Special features

1). Excellent design ability and rich experience, follow strict development process and testing standards, reliable quality assurance.

2). High quality core parts, high processing precision, low vibration, low noise, to ensure reliable operation.

3). Intelligent control system, LCD Chinese and English display, powerful protection function, a variety of signal output.

4). Electrical system standardized design, safe and reliable; Professional wiring interface, easy to maintain.

5). Modular design, no leakage, low pressure loss, easier maintenance.

6). High quality motor, efficient design, longer life.

7). Efficient and strong cooling design, pre-filtration protection.

3.Commercial items

SN	Item	Quantity	Unit Price/USD Total Price/USD
1	Air compressor HYBLT-50AG	1	7800	7800
2	Assist equipment	1	2008	2008

			Total in EXW

4.Main Specification of the Machine

SN	Description	Specification
1	Model	BLT-50AG
2	Displacement	6.2 m³/min	6.1 m³/min	5.2 m³/min	-
3	Intake pressure	0.1003 MPa
4	Ambient temperature	0-45 ℃
5	Exhaust pressure	0.7 MPa	0.8 MPa	1 MPa	-
6	cooling method	Air cooling
7	Exhaust gas temperature	﹤Environment temperature +20 ℃
8	transfer method	Direct transmission
9	Gas outlet oil	≤3 PPm
10	Main motor model	YE2-180L2-2
11	Power	37 kw
12	Rotating speed	2940 r/min
13	Motor bearing model	SKF
14	Voltage	380V/50Hz
15	Main motor insulation class	F
16	Main motor protection class	IP55
17	Start mode	Y-▲
18	Unit noise	65±2 dB(A)
19	Dimension (LWH)	1460x980x1410 mm
20	Weight	660 kg
21	Outlet diameter	G1 1/2 Inch
