Name: UV Series 3 / 5 / 10W Laser Printer With Visual Communication Protocol
Brand: Shenzhen HYPET Co., Ltd.
SKU: UV series 3 / 5 / 10W laser printer
Price: 6,350.00 USD
Availability: InStock

Home > products > Auxiliary Machine and Parts >

UV Series 3 / 5 / 10W Laser Printer With Visual Communication Protocol

UV series laser printer

10W UV laser printer

Place of Origin:

China

Brand Name:

Hypet

Certification:

ISO9001,CE

Model Number:

UV series 3 / 5 / 10W laser printer

Request A Quote

Product Details

Highlight:

UV series laser printer

10W UV laser printer

Payment & Shipping Terms

Minimum Order Quantity

1set

Price

USD 3500-9200/set

Packaging Details

Standard Package for sea shipment

Delivery Time

35~45days

Payment Terms

L/C, T/T

Supply Ability

50set/month

China Air compressor BLT-10A in both piston type and screw type for sale

Get Best Price

SRL Vertical PVC mixing hot/cold high speed mixer maching 300/600L for PVC product and high filler pellets

Get Best Price

Air compressor BLT-40A for industrial factory using from China

Get Best Price

New Model Air compressor BLT-30A in both piston type and screw type for industrial factory

Get Best Price

+8615002772815

ryan@hypet.com.cn

+86-755-25851030

Contact Now

Product Description

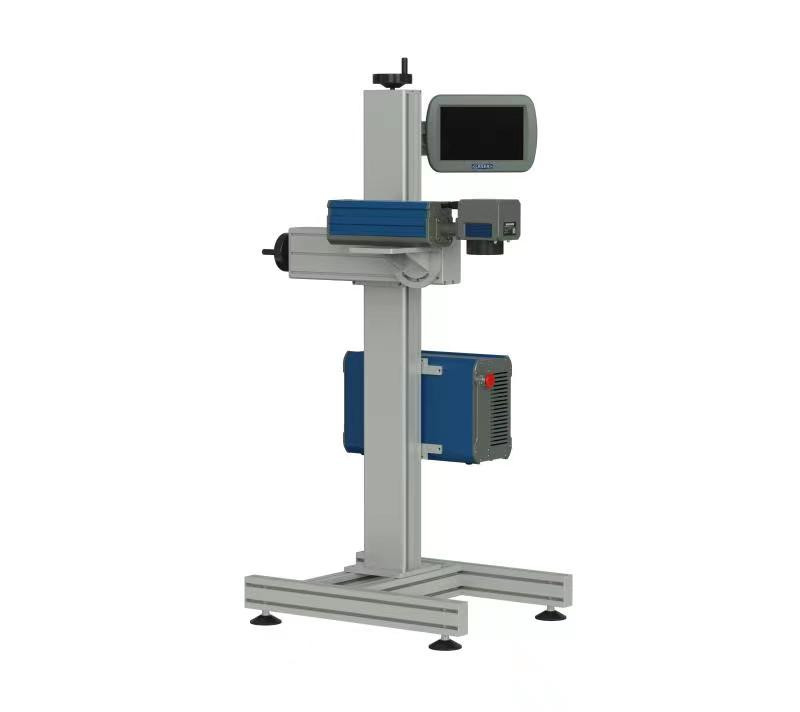

1. UV series 3 / 5 / 10W laser printer

UV Series 3 / 5 / 10W Laser Printer With Visual Communication Protocol 0
2.HYPET Special features

1). Provide high quality at a reasonable price to make laser technology universal.

2). German technology and excellent component design ensure a reliable and high-quality system that can handle various application scenarios.

3). It allows you to automatically scan the data of multiple processes from the production line or from the external production line, so that you can easily complete the automatic inspection of multiple process data sources.

4). Carry out data communication through serial port or network port, and bring its own single machine and dual machine coding software.

5). With its own visual communication protocol, users can choose this function for seamless integration.

6). it can be linked to the host computer through Ethernet to realize remote operation in different places.

7). The overall protection grade of the controller reaches IP55.

3.Commercial items

SN	Item	Quantity	Unit Price/USD Total Price/USD
1	UV Laser printer 3W	1	3500	3500
2	UV Laser printer 5W	1	3850	3850
3	UV Laser printer 10W	1	9200	9200

				Total in EXW

4.Main Specification of the Machine

Project	Parametertable	UV-3W	UV-5W	UV-10W
Characteristic	Machine material	All aluminum sandblasting oxidation
	Laser	The service life is more than 20000-30000 hours
	Laser wavelength	355nm
	output power	≥4.2W	≥6.5W	≥12W
	Marking speed	≤12000mm/s
	controller	10.2 inch touch controller
	Cooling system	Water cooling (with chiller)
Parameter	Focus lens	210mm
	Minimum linewidth	0.01mm
	Repetitionaccuracy	0.001mm
	Marking range	110mm × 110mm (optional)
	Positioning mode	Blue light indication
	Number of rows	Any line within the marking range
	Production line speed	0~130m/min (depending on the material)
Software	Multilingual	English, Spanish, German, Chinese, Russian, Arabic, etc
	jurisdiction	Multi user management authority
	operating system	Linuxsystem
	Inkjet mode	Static, analog, encoder
	Reserved signal	Start, print status, finish, fault
	data protection	With power failure data protection energy
	monitor	Provide overspeed alarm function
	De crossing	Automatic removal of intersections
	Coding software	Single and double machine code sending
Support type	typeface	Chinese and English, numbers, traditional, etc
	file format	BMP/DXF/HPGL/JPEG/PLT
	bar code	CODE39, CODE128, CODE126, QR
Servicing parameters	Power Supply	220V/50HZ
	Power consumption	800W
	Net weight of machine	40kg
	Overall dimension	640mmX160mmX206mm
Environment	requirement	External temperature 0℃ - 45℃; humidity ≤ 95
