Stainless steel 304 SRL800/2500 hot cool high speed mixer machine for plastic powder mixing/ soft PVC powder compunding

Name: Stainless steel 304 SRL800/2500 hot cool high speed mixer machine for plastic powder mixing/ soft PVC powder compunding
Brand: Shenzhen HYPET Co., Ltd.
SKU: 800/2500 hot cold mixer
Price: 34700 USD
Availability: InStock

Brand Name:	Hypet
Model Number:	800/2500 hot cold mixer
MOQ:	1set
Price:	USD 34700/set
Delivery Time:	35~45days
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001,CE

Motor Power:

110KW

Cooling Way:

Water Cooling

Structure:

Horizontal

Max Output:

1100-1300 Kg/h (Depend On Formulation)

Key Parts Warranty:

1year

Engineer Installation Service:

Yes

Packaging Details:

Standard Package for sea shipment

Supply Ability:

50set/month

Highlight:

SRL800/2500 hot cool mixer machine

High Speed Mixer Machine

Plastic Powder Mixer Machine

Product Description

1.800/2500 hot cold mixer

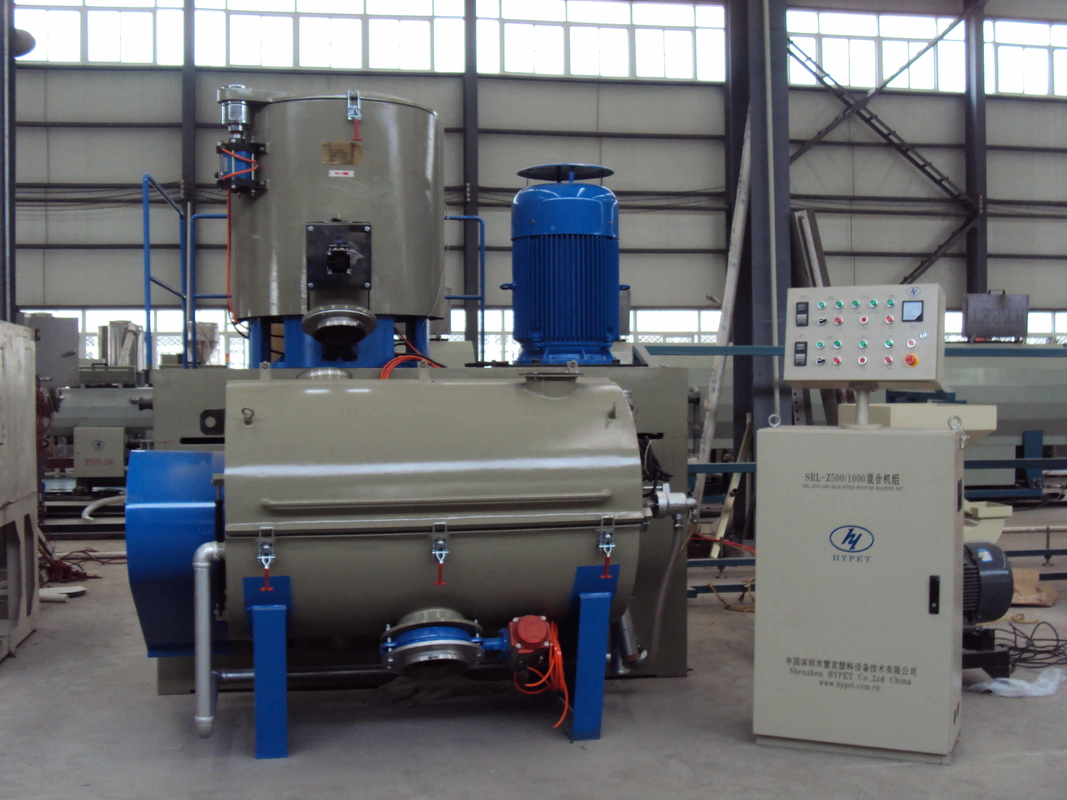

Stainless steel 304 SRL800/2500 hot cool high speed mixer machine for plastic powder mixing/ soft PVC powder compunding 0

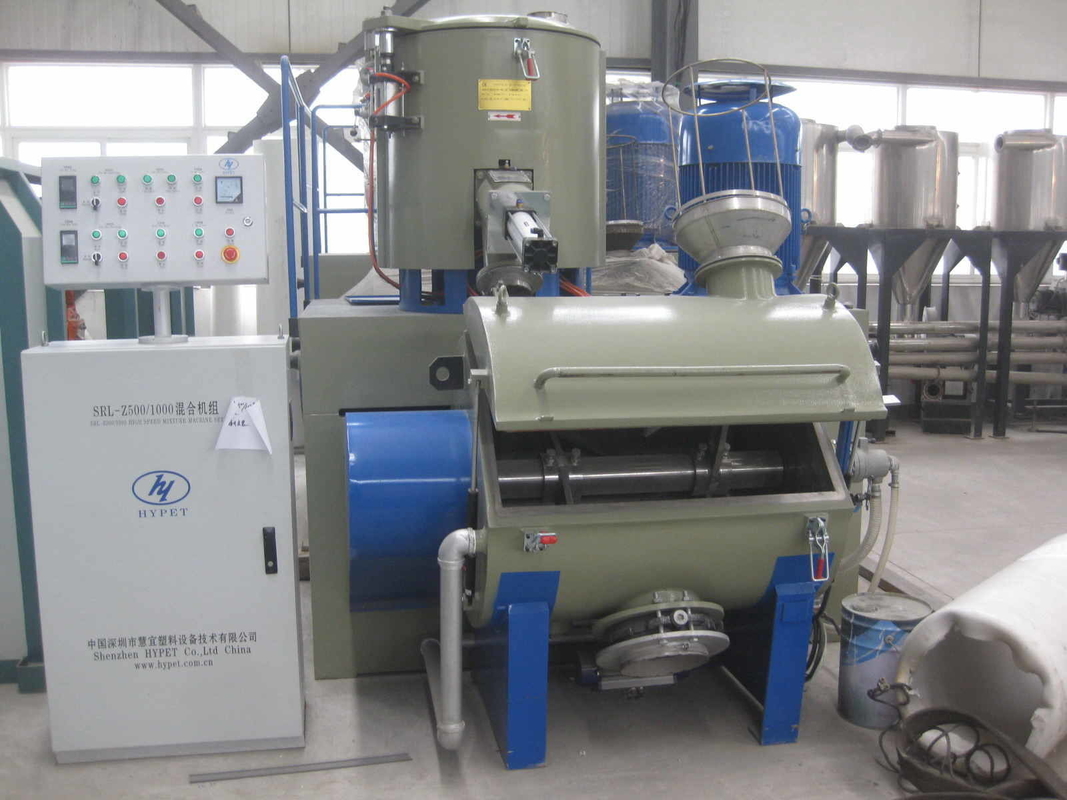

Stainless steel 304 SRL800/2500 hot cool high speed mixer machine for plastic powder mixing/ soft PVC powder compunding 1

Stainless steel 304 SRL800/2500 hot cool high speed mixer machine for plastic powder mixing/ soft PVC powder compunding 2

Stainless steel 304 SRL800/2500 hot cool high speed mixer machine for plastic powder mixing/ soft PVC powder compunding 3

2.Speciality of HYPET 800/2500 hot cold mixer

SN	Speciality
1	For a variety of plastic ingredients, mixing, drying, coloring and other processes, it’s the ideal choice for profiles and pipe manufacturers.
2	Cold machine with horizontal structure, with cooling area, speed, more uniform characteristics;
3	The lid to take double-sealed, open the lid using pneumatic mode;
4	Vane, pulley, etc. are through the static, dynamic balance testing machine special treatment.
5	It can be used for mixing raw PVC material with additives, it consist of hot mixer and cold mixer

3.Commercial items

SN	Item	Quantity	Unit Price/USD Total Price/USD
1	800/2500 hot cold mixer	1	34700	34700

			Total in EXW	34000
	For option
1	Raw material vacuum auto loader system for all mixer Including raw material station, and vacuum auto loader device	1	8500	8500
2	Auto-loader in screw type 6 m long	1	780	780
3	Material silo in 2.5 tons	1	2400	2400
4	Vacuum auto feeder to the extruder	1	7800	7800

4.Main Specification of the Machine

SN	Type	Specification	Description
1	Model	800/2500
2	Structure	Horizontal
3	Hot mixing tank	General capacity	800L
		Effective capacity	600L
		Feeding cappacity	260kg/batch
		Output	1100-1300 kg/h (Depend on formulation)
		Motor Power	110kw
		Mixing time	10-12 min/batch
		Wall thickness	8-12mm
4	Cold mixing tank	General capacity	2500L
		Effective capacity	1600L
		Motor Power	30kw
		mixer structure	Horizontal
		cooling way	Water cooling
		cooling time	8-10min
		wall thickness	8-12mm
5	Packing information	with inverter Delta	Yes
		weight kg	6500 kg
		Dimension	4340 x 2925 x 3382 mm
