Product Description

1.MF Series New Style Disc Pulverizer
High Speed PP PE round disk blade type Plastic Milling Pulverizer Machine / water cooling plastic pulverizing machine 0

2.HYPET Special features

1. Compared with similar grinders, its output is greatly improved (increase by 20-50%) under the same power. It is energy-saving.

2. The dust collector is added to effectively reduce dust pollution.

3. The discharging of the air shutter reduces labor strength of operating workers.

4. The door cover of the host can be opened for convenience of maintenance and replacement of knives.

5. Wind and water cooling is adopted to decrease the working temperature inside the machine body, the grinded material uneasy for denaturalization and also conducive to grind heat sensitivity plastics such as parts of PE and ABS material and so on

6. The powder mesh is adjustable (10-120 mesh)

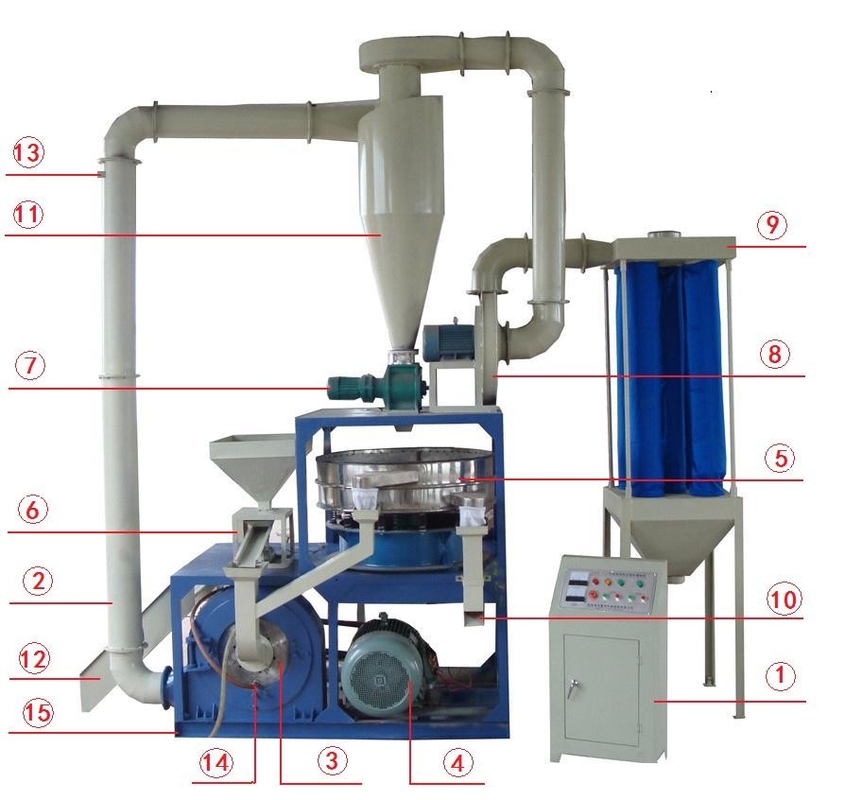

3.Consist of parts

SN	Name of part	SN	Name of part
1	Cabinet	2	Cooling pipe
3	Host	4	Motor
5	Vibrating sieve	6	Vibrating Feeder
7	Air shutter fan	8	Drawing fan
9	Dust collector	10	Discharge hole
11	Cyclone separator	12	Stepping
13	Water Outlet	14	Water inlet
15	Rack

4.Commercial items

SN	Item	Qty	Unit Price	Total Price
1	PE pulverizer MF-400	1	10800		10800
2	PE pulverizer MF-500	1	12700		12700
3	PE pulverizer MF-600	1	14000		14000
4	PE pulverizer MF-800	1	21000		21000

					USD/SET EXW

5.Main Specification of the Machine

Item	Specification
Model	MF-400	MF-500	MF-600	MF-800
Diameter of disc(mm)	Ø400	Ø500	Ø600	Ø800
Main motor power(kw)	22	37	45	75
Capacity(kg/h)	50-300	80-500	120-800	200-1200
