Name: Automatic PLC controlling system PE PPR pipe rewinding coiler roller machine
Brand: Shenzhen HYPET Co., Ltd.
SKU: Rewinder Coiler for PE Pipe
Price: 6,800.00 USD
Availability: InStock

Home > products > Auxiliary Machine and Parts >

Automatic PLC controlling system PE PPR pipe rewinding coiler roller machine

PLC rewinding coiler roller machine

PPR rewinding coiler roller machine

Place of Origin:

China

Brand Name:

Hypet

Certification:

ISO9001,CE

Model Number:

Rewinder Coiler for PE Pipe

Request A Quote

Product Details

Key Parts Warranty:

1year

Engineer Installation Service:

Yes

Applicant For:

PE PPR

Station:

Single / Double

Highlight:

PLC rewinding coiler roller machine

PPR rewinding coiler roller machine

Payment & Shipping Terms

Minimum Order Quantity

1set

Price

USD 3900-9700/set

Packaging Details

Standard Package for sea shipment

Delivery Time

35~45days

Payment Terms

L/C, T/T

Supply Ability

50set/month

China Air compressor BLT-10A in both piston type and screw type for sale

Get Best Price

SRL Vertical PVC mixing hot/cold high speed mixer maching 300/600L for PVC product and high filler pellets

Get Best Price

Air compressor BLT-40A for industrial factory using from China

Get Best Price

New Model Air compressor BLT-30A in both piston type and screw type for industrial factory

Get Best Price

+8615002772815

ryan@hypet.com.cn

+86-755-25851030

Contact Now

Product Description

1.Rewinder Coiler for PE Pipe

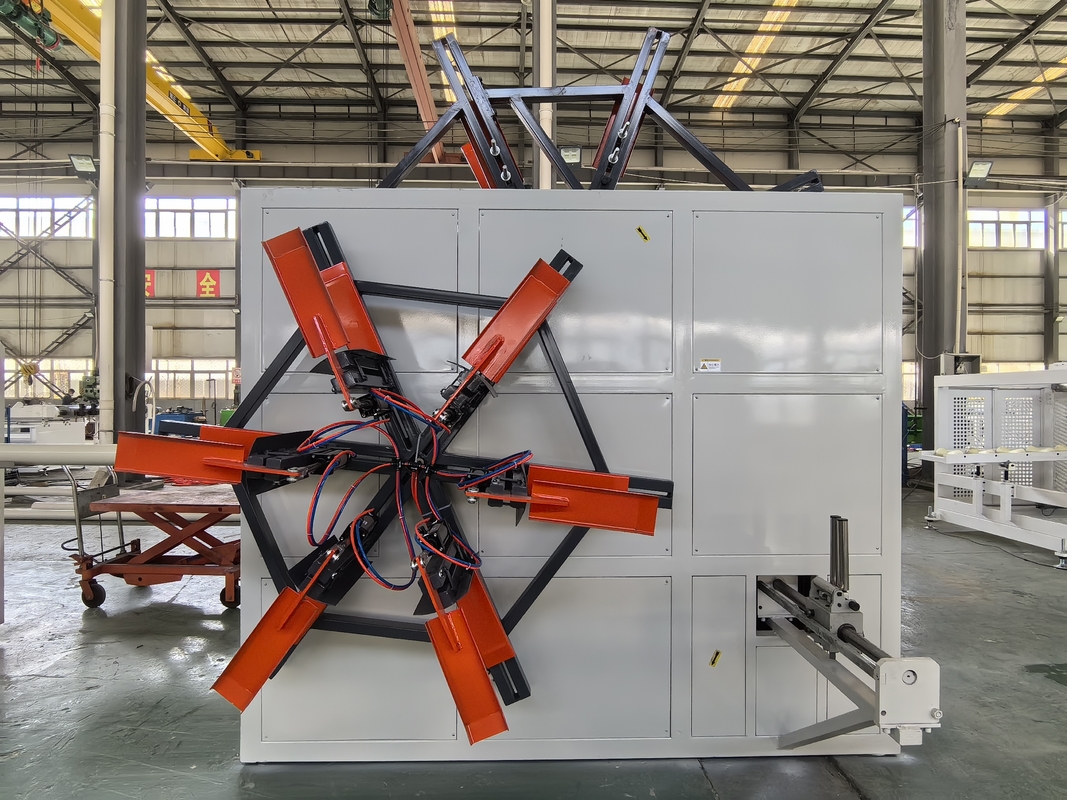

Automatic PLC controlling system PE PPR pipe rewinding coiler roller machine 0

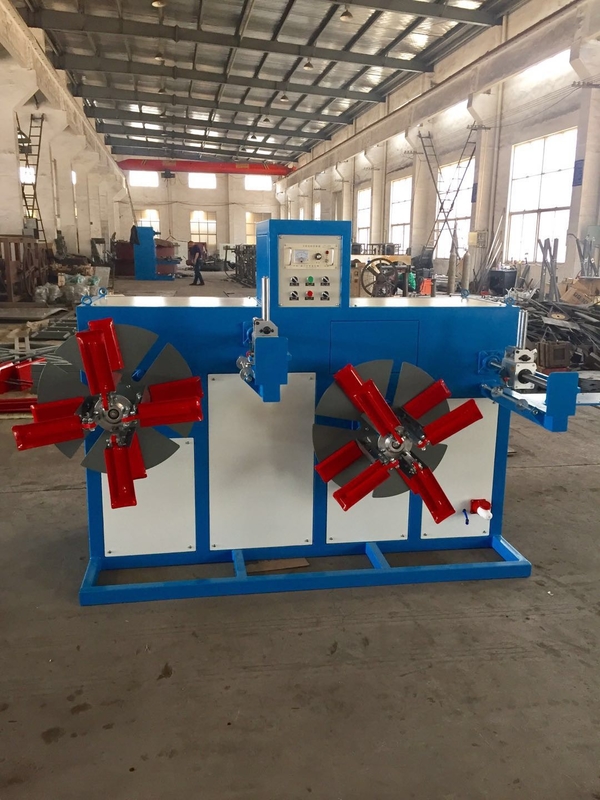

Automatic PLC controlling system PE PPR pipe rewinding coiler roller machine 1

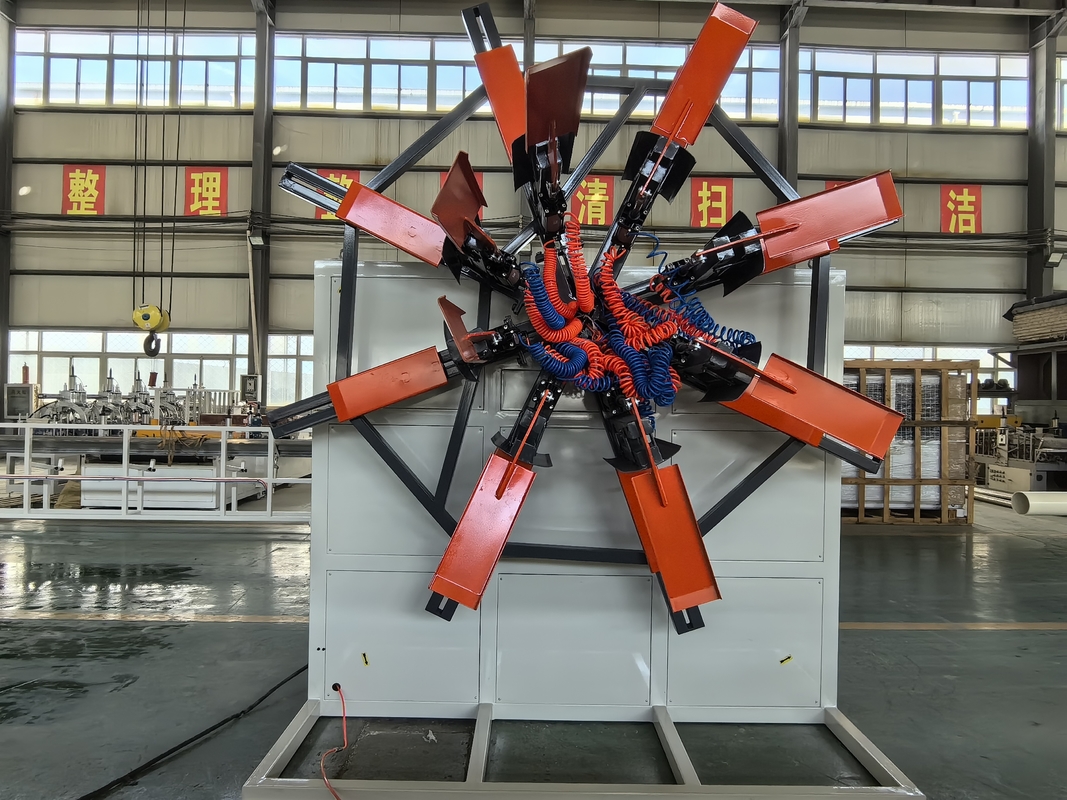

Automatic PLC controlling system PE PPR pipe rewinding coiler roller machine 2

2.HYPET Special features

1. This equipment is independently developed, which can automatically wind PPR and PE-RT pipes.

2. With the perfect combination of advanced mechanical structure and high-precision PLC automatic control system, it can guarantee even and orderly arrangement of pipes and smooth operation.

3. It can realize the easy operation by 1 individual and has high degree of automation.

3.Commercial items

SN	Item	Qty	Unit Price	Total Price
1	Coiler 16-32 double station	1	3900		3900
2	Coiler 20-75 double station	1	4300		4300
3	Coiler 50-110 single station	1	5600		5600
4	Coiler 50-110 double station	1	9700		9700
5	Coiler 63-125 single station	1	6700		6700

					USD/SET EXW

4.Main Specification of the Machine

Specification	COILER-16-32	COILER-20-75	COILER-50-110	COILER-50-110	coiler 63-125
Number of station	Double station	Double station	Single station	Double station	Single station
Internal diameter mm	350-850mm	500-1700mm	1000-2600mm	1000-2600mm	1200-2600mm
Outside diameter mm	850-1300mm	1050-2300mm	2000-3400mm	2000-3400mm	2500-3900mm
Coiler width	400mm Adjustable	400mm Adjustable	460mm Adjustable	460mm Adjustable	500mm Adjustable
Winding length	250-350 m	250-350 m	250-350 m	250-350 m	250-350 m
Winding speed	0.5-30 m/min	1-15 m/min	0.5-15 m/min	0.5-15 m/min	0.2-5 m/min
Torque motor Nm	10 Nm	25 Nm	40 Nm	40 Nm	40 Nm
Winding displacement	Automatic	Automatic	Automatic	Automatic	Automatic
Overall dimensions	2700x1800x1900	2700x1500x2300	custom made	custom made	custom made

5.Cooperative Brands:

6.Exhibition:
