Name: Widely Used Multifunction single Shaft Shredder For wasted plastic rubber fiber shaped like big rod thick plate pipe
Brand: Shenzhen HYPET Co., Ltd.
SKU: HYS Series Single Shaft Shredder
Price: 28,100.00 USD
Availability: InStock

Home > products > Auxiliary Machine and Parts >

Widely Used Multifunction single Shaft Shredder For wasted plastic rubber fiber shaped like big rod thick plate pipe

single Shaft Shredder

Multifunction single Shaft Shredder

Wasted Plastic Shredder

Place of Origin:

China

Brand Name:

Hypet

Certification:

ISO9001,CE

Model Number:

HYS Series Single Shaft Shredder

Request A Quote

Widely Used Multifunction single Shaft Shredder For wasted plastic rubber fiber shaped like big rod thick plate pipe

Product Details

Key Parts Warranty:

1year

Engineer Installation Service:

Yes

Station:

Single / Double

Highlight:

single Shaft Shredder

Multifunction single Shaft Shredder

Wasted Plastic Shredder

Payment & Shipping Terms

Minimum Order Quantity

1set

Price

USD 19200-37000/set

Packaging Details

Standard Package for sea shipment

Delivery Time

35~45days

Payment Terms

L/C, T/T

Supply Ability

50set/month

China Air compressor BLT-10A in both piston type and screw type for sale

Get Best Price

SRL Vertical PVC mixing hot/cold high speed mixer maching 300/600L for PVC product and high filler pellets

Get Best Price

Air compressor BLT-40A for industrial factory using from China

Get Best Price

New Model Air compressor BLT-30A in both piston type and screw type for industrial factory

Get Best Price

+8615002772815

ryan@hypet.com.cn

+86-755-25851030

Contact Now

Product Description

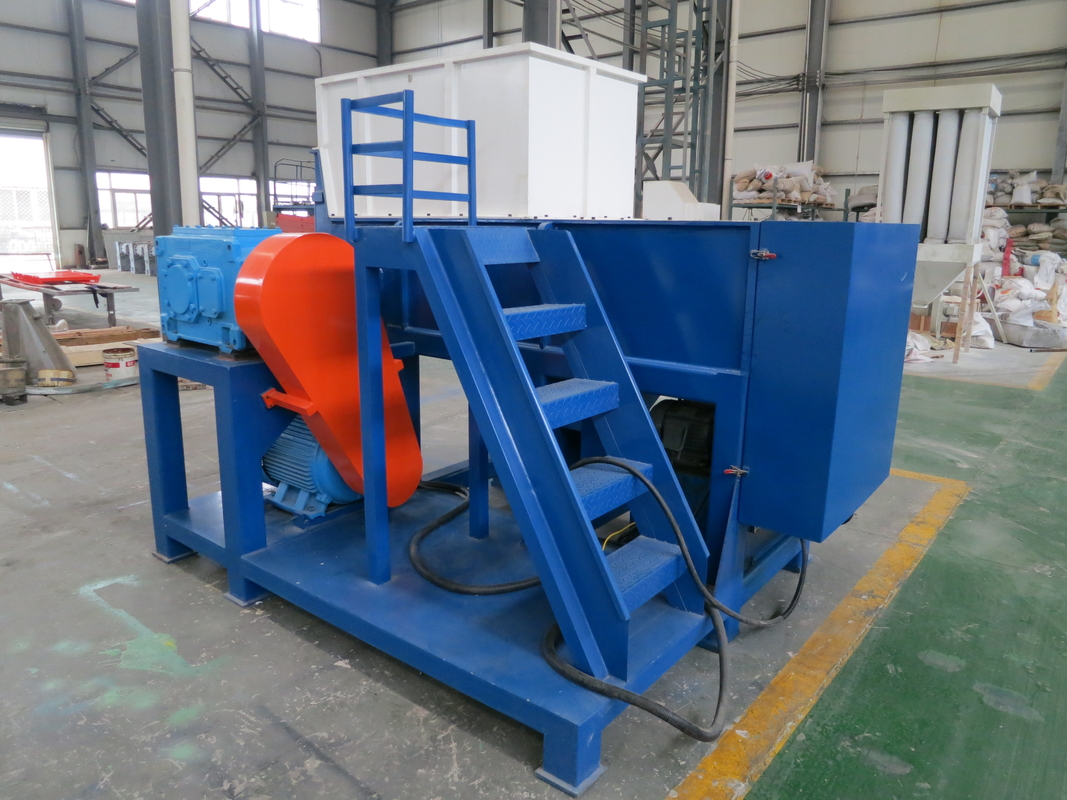

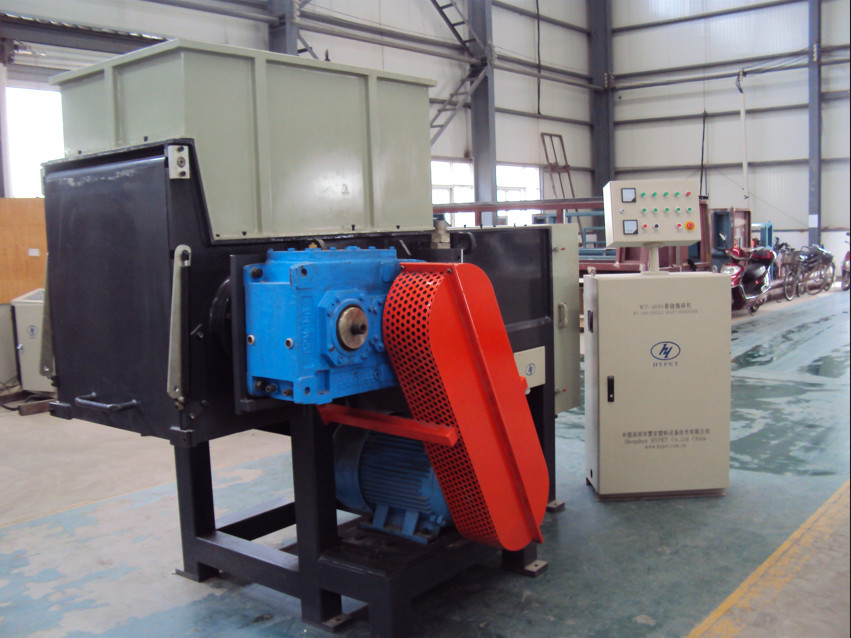

1.HYS Series Single Shaft Shredder
Widely Used Multifunction single Shaft Shredder For wasted plastic rubber fiber shaped like big rod thick plate pipe 0

2.HYPET Special features

1). Low speed shredding with 85 r/pm; little noise; low power consumption; well-proportioned in length of

shredded materials.

2). Symmetry-rotate-knifes-design provides possibility for redeploying knifes for 4 times, facilities for operation

and longer life span.

3). Hydraulic feeding system providing facilities for adjusting feeding speed and pressure for different loads in

different materials so that the whole could work automatically.

4). Pneumatic buffer rod for unbolting brackets in the screen mat that reduce labor and enhance safety.

5). Hard material rotor:this rotor is suitable for very strong material such as ABS,PC and Nylon; deep segments make the cutting points closer to the axis of groove to protect knives and reduce noise.

3.Commercial items

SN	Item	Quantity	Unit Price/USD Total Price/USD
1	Single Shaft Shredder HYS4080	1	19200	19200
2	Single Shaft Shredder HYS4100	1	22000	22000
3	Single Shaft Shredder HYS4120	1	32000	32000
4	Single Shaft Shredder HYS4150	1	37000	37000

			Total in EXW

4.Main Specification of the Machine

Item	Specification
Model	HYS4080	HYS4100	HYS4120	HYS4150
Oil cylinder distance mm	815	815	815	815
Rotor diameter mm	400	400	400	400
Main axis rpm	80	80	80	80
Screen diameter mm	40-60	40-60	40-80	40-80
Rotatory blades pcs	35+4	45+4	55+4	78+4
Fixed blades pcs	2+2	2+2	3+3	3+3
Main motor power kw	37	45	55	75
Hydraulic power kw	3.75	3.75	5.5	5.5
Weight kg	3950	4250	5250	6650

5.Cooperative Brands:

6.Exhibition:
