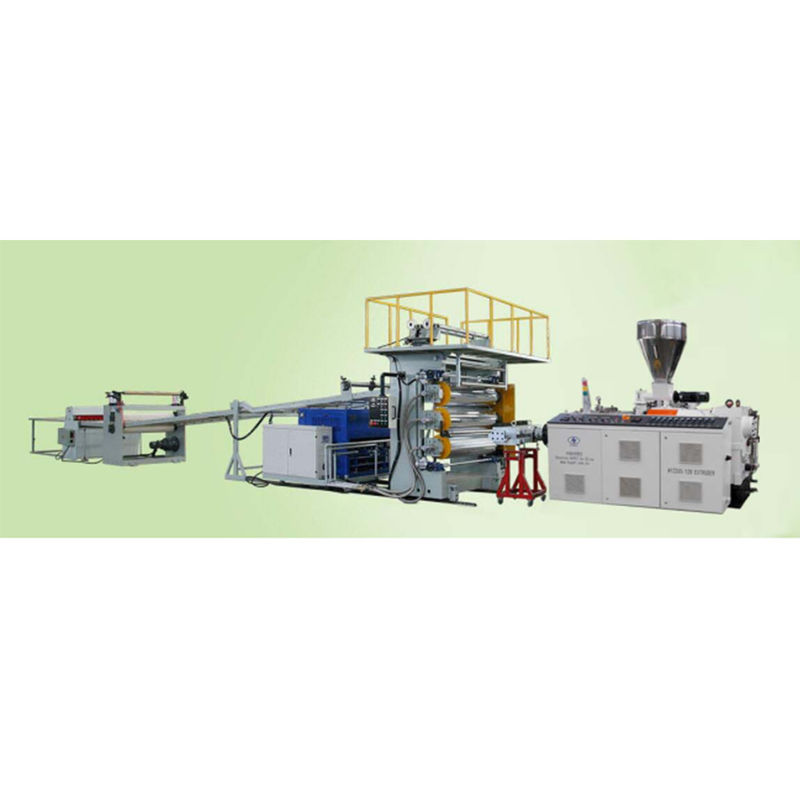

Pvc Board Sheet Machine / Pvc Imitation Board Extrusion Line 12t/Day High Calcium Formula
Pvc Board Sheet Machine HYPET Unique Advantages
a. Equipped with HYPET special function extruder, high output, 12 tons/day,
b. High-calcium formula and technology can be provided, bimetallic barrel and screw, with a shelf life of up to one year.
c. Three-roller design, precise roller temperature control, suitable for product cooling and forming
d. Siemens PLC control system, equipped with HYPET self-developed software, improves operation efficiency and reduces production costs
Pvc Board Sheet Machine Configuration list
Note: This table as attached file which is for selection of the configuration on the whole line
| SN |
Items |
Choosing configuration |
| 1 |
Production control system |
PLC control system |
| 2 |
Cooling system of the main control electric cabinet |
Fan cooling. |
| 3 |
Main motor |
AC motor with famous inverter |
| 4 |
Pressure sensor |
HYPET individual temperature and pressure control in two parts |
| 5 |
Core thermoregulation control |
Internal closed loop heat balancing system. |
| 6 |
Material of screw & barrel type |
Nitro Alloy with bi-metal in two parts |
| 7 |
Quantitative feeding system’s mixing function |
High calcium special dosing device in twin screw type. |
Pvc Board Sheet Machine Condition of use
1. Pvc Board Sheet Machine Technical features of whole line
| SN |
Specification |
Description |
| 1 |
Suitable material |
PVC mixed powder |
| 2 |
Suitable product |
PVC marble sheet |
| 3 |
Max. output |
500-600 kg/h |
| 4 |
Max production speed |
0.5-3 m/min |
| 5 |
Test and accept |
Based on HYPET standard formula |
| 6 |
Center height |
1,000mm |
| 7 |
Whole line size (L x W x H) |
17,000 x 1,600 x 3,250mm |
| 8 |
Operation direction |
From right to left |
| 9 |
Color of equipment |
HYPET white color |
| 10 |
Control of whole production |
Refer to the “configuration list”. |
| Note |
Extrusion capacity will be changed according the processing material and working conditions |
2. Pvc Board Sheet Machine Circumstances condition
| SN |
Condition |
Specification |
Description |
| 1 |
Natural
circumstance
condition
|
Working place |
Indoor use |
| Power source |
No dangerous area |
| Humidity |
55%~85% no condensation |
| Temperature |
0~40 ℃ |
| 2 |
Electricity
source
|
Installation capacity |
200kW |
| Power supply |
3P+N+PE |
| Voltage/Frequency |
380V/50Hz (Adjustment) |
| 3 |
Cooling water |
Temperature |
≤15 ℃ |
| Water pressure |
≥0.3MPa |
| Flow |
~5 m3/h |
| 4 |
Air condition |
Compressor air pressure |
≥0.6MPa |
| Flow |
~0.9 m3/min |
Pvc Board Sheet Machine
Pvc Board Sheet Machine Terms & conditions
1. Pvc Board Sheet Machine Terms of payment
1) T/T and L/C (irrevocable, at sight) both are acceptable.
2) 35% of the total contract value should be paid in advance, balance 65% of the total value is to be paid before shipping at the Seller’s factory.
2. Pvc Board Sheet Machine Guarantee clause
1) Guarantee is 1 year (excluding human factor and wearing parts).
2) Under proper working conditions, 12 months from the date of completion of commissioning at the buyer's site, and should be at the latest within 14 months from the issuing date of Bill of Lading.
