Name: PVC Foam Board Extrusion Line For Building Templates Using
Brand: Shenzhen HYPET Co., Ltd.
SKU: HYYF-1220 PVC Foam Board Extrusion Line
Price: 100,000.00 USD
Availability: InStock

Home > products > PVC Foam Board Extrusion Line >

PVC Foam Board Extrusion Line For Building Templates Using

3mm Thick Pvc Foam Board Extrusion Line

ISO9001 Pvc Foam Board Extrusion Line

3mm Thick pvc foam board production line

Place of Origin:

China

Brand Name:

SHENZHEN HYPET

Certification:

ISO9001

Model Number:

HYYF-1220 PVC Foam Board Extrusion Line

Request A Quote

Product Details

Key Word:

PVC Foam Board Extrusion Line

Application:

PVC Foam Board

PLC:

Siemens

Extruder Model:

ZS80/156 Twin Conic Screw Extruder

Output:

300-400KG/H

Thickness:

1-3mm

Motor:

Siemens

Raw Material:

PVC+CaCo3+Chemicals

Highlight:

3mm Thick Pvc Foam Board Extrusion Line

ISO9001 Pvc Foam Board Extrusion Line

3mm Thick pvc foam board production line

Payment & Shipping Terms

Minimum Order Quantity

PVC Foam Board Extrusion Line 1 set

Price

USD90000/set - USD110000/set

Packaging Details

PVC Foam Board Extrusion Line LCL woden case, FCL with film and rope fixing

Delivery Time

PVC Foam Board Extrusion Line 40-60 work days

Payment Terms

L/C, T/T

Supply Ability

PVC Foam Board Extrusion Line 10 sets per month

Pvc Free Foamed Board Extrusion Line For Decoration Sheet Making 1220mm Width

Get Best Price

Video

Plastic Board Extrusion Machine With T Die Thickness From 5mm To 20mm

Get Best Price

Video

PVC Foam Board Extrusion Line For Building Templates Using

Get Best Price

Video

PVC Foam Board Production Line 5 - 20mm Thickness 1220mm Width

Get Best Price

+8615002772815

ryan@hypet.com.cn

+86-755-25851030

Contact Now

Product Description

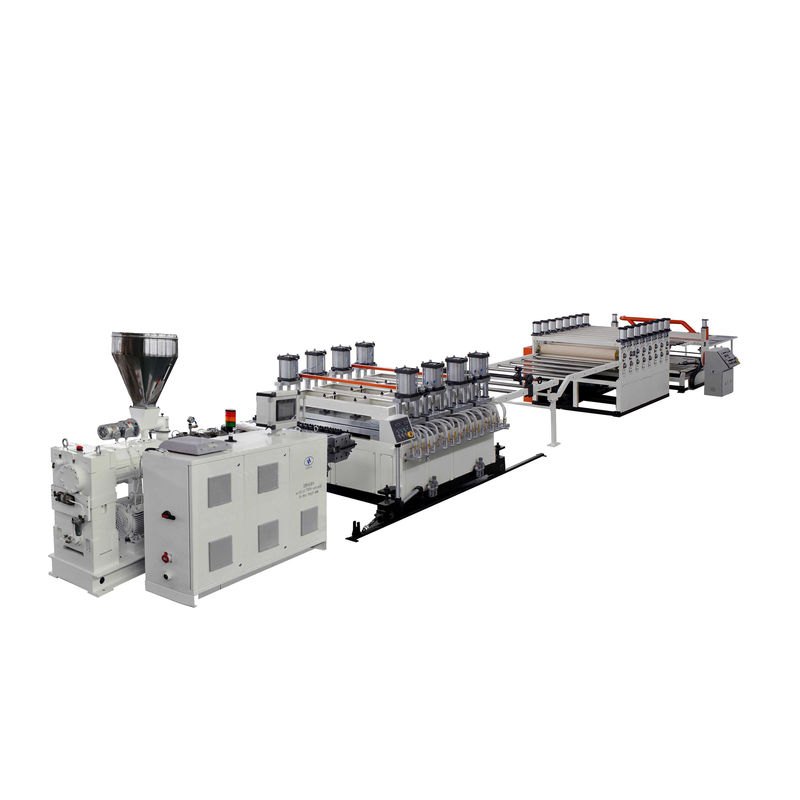

PVC Foam Board Extrusion Line For Building Templates Using

PVC Foam Board Extrusion Line HYPET Unique Advantages

Equipped with HYPET special function extruder, high output, 12 tons/day
The heavy-duty vacuum setting device can ensure the smooth production of PVC/WPC skin foam board
Siemens PLC control system, equipped with HYPET self-developed software, improves operation efficiency and reduces production costs.

PVC Foam Board Extrusion Line Configuration list

Note: This table as attached file which is for selection of the configuration on the whole line

SN	Items	Choosing configuration
1	Production control system	Siemens PLC control system
2	Cooling system of the main control electric cabinet	Fan cooling cabinet
3	Main motor	AC motor with famous inverter
4	Pressure sensor	HYPET individual temperature and pressure control in two parts
5	Core thermoregulation control	Internal closed loop heat balancing system.
6	Material of screw & barrel type	Nitro Alloy with bi-metal in two parts
7	Quantitative feeding system’s mixing function	Standard dosing device in single screw type.

II. PVC Foam Board Extrusion Line Condition of use

1. PVC Foam Board Extrusion Line Technical features of whole line

SN	Specification	Description
1	Suitable material	PVC and wood powder mixed composite
2	Product size	Width: 1,220mm, thickness: 5~20mm
3	Max. output	300-400 kg/h
4	Test and accept	Based on HYPET standard formula.
5	Center height	1,100mm
6	Whole line size (L x W x H)	22,000 x 2,100 x 2,200mm
7	Operation direction	From right to left
8	Color of equipment	HYPET white color
9	Control of whole production	Refer to the “configuration list”.
Note	Extrusion capacity will be changed according the processing material and working conditions

2. PVC Foam Board Extrusion Line Circumstances condition

SN	Condition	Specification	Description
1	Natural circumstance condition	Working place	Indoor use
		Power source	No dangerous area
		Humidity	55%~85% no condensation
		Temperature	0~40 ℃
2	Electricity source	Installation capacity	200 kW
		Actual consumption	160 kW
		Power supply	3P+N+PE
		Voltage/Frequency	380V/50Hz other can be option
3	Cooling water	Temperature	≤15 ℃
		Water pressure	≥0.3MPa
		Flow	~15 m³/h
4	Air condition	Compressor air pressure	≥0.6MPa
4	Air condition	Flow	~0.9 m³/min
