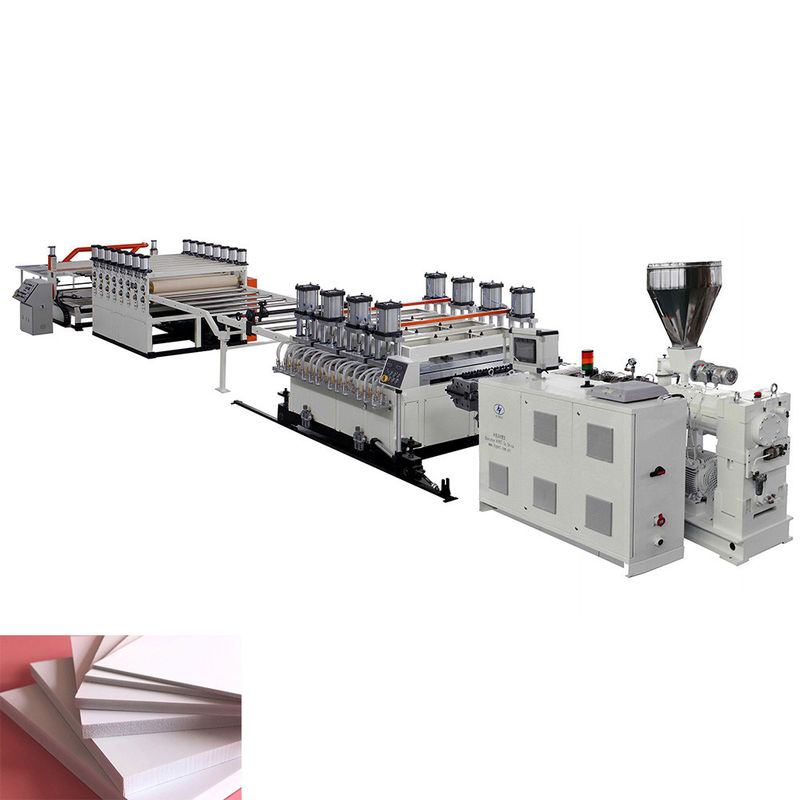

Pvc Celuka Foam Board Extrusion Line With Double Screw Extruder 80/156
Pvc Celuka Foam Board Extrusion Line Our Advantages
a. HYPET provides formulas and a full set of technology. The whole production line has the characteristics of large output, stable extrusion and high foaming ratio.
b.The extruder is designed as a special screw barrel for PVC and wood-plastic foaming. The vented structure. The surface of the screw barrel is sprayed with bimetal, which effectively reduces the problem of large wear on the screw barrel by PVC and wood-plastic raw materials. The service life of the machine is greatly improved.
Pvc Celuka Foam Board Extrusion Line Configuration list
Note: This table as attached file which is for selection of the configuration on the whole line
| SN |
Items |
Choosing configuration |
| 1 |
Production control system |
Siemens PLC control system |
| 2 |
Cooling system of the main control electric cabinet |
Fan cooling cabinet |
| 3 |
Main motor |
AC motor with famous inverter |
| 4 |
Pressure sensor |
HYPET individual temperature and pressure control in two parts |
| 5 |
Core thermoregulation control |
Internal closed loop heat balancing system. |
| 6 |
Material of screw & barrel type |
Nitro Alloy with bi-metal in two parts |
| 7 |
Quantitative feeding system’s mixing function |
Standard dosing device in single screw type. |
II. Pvc Celuka Foam Board Extrusion Line Condition of use
1. Pvc Celuka Foam Board Extrusion Line Technical features of whole line
| SN |
Specification |
Description |
| 1 |
Suitable material |
PVC and wood powder mixed composite |
| 2 |
Product Thickness |
5~20mm |
| 3 |
Max. output |
300-400 kg/h |
| 4 |
Test and accept |
Based on HYPET standard formula. |
| 5 |
Center height |
1,100mm |
| 6 |
Whole line size (L x W x H) |
22,000 x 2,100 x 2,200mm |
| 7 |
Operation direction |
From right to left |
| 8 |
Color of equipment |
HYPET white color |
| 9 |
Control of whole production |
Refer to the “configuration list”. |
| Note |
Extrusion capacity will be changed according the processing material and working conditions |
2. Pvc Celuka Foam Board Extrusion Line Circumstances condition
| SN |
Condition |
Specification |
Description |
| 1 |
Natural
circumstance
condition
|
Working place |
Indoor use |
| Power source |
No dangerous area |
| Humidity |
55%~85% no condensation |
| Temperature |
0~40 ℃ |
| 2 |
Electricity
source
|
Installation capacity |
200 kW |
| Actual consumption |
160 kW |
| Power supply |
3P+N+PE |
| Voltage/Frequency |
380V/50Hz other can be option |
| 3 |
Cooling water |
Temperature |
≤15 ℃ |
| Water pressure |
≥0.3MPa |
| Flow |
~15 m3/h |
| 4 |
Air condition |
Compressor air pressure |
≥0.6MPa |
| Flow |
~0.9 m3/min |
Pvc Celuka Foam Board Extrusion Line
Pvc Celuka Foam Board Extrusion Line Terms of payment
1) T/T and L/C (irrevocable, at sight) both are acceptable.
2) 35% of the total contract value should be paid in advance, balance 65% of the total value is to be paid before shipping at the Seller’s factory.
Pvc Celuka Foam Board Extrusion Line Time of delivery
1) When the contract becomes valid, the machine should be delivered within 45 days since receipt of the advance payment. And the equipment will be in normal operation after debugging within two weeks after arrival.
2) During production, provided that the Buyer requests to modify the specification of the order, the Buyer shall notify the Seller of this modification in written form. Upon receipt of the notice, the Seller will quote to the Buyer the cost of this modification and notify the Buyer of any possible delay due to this modification.
