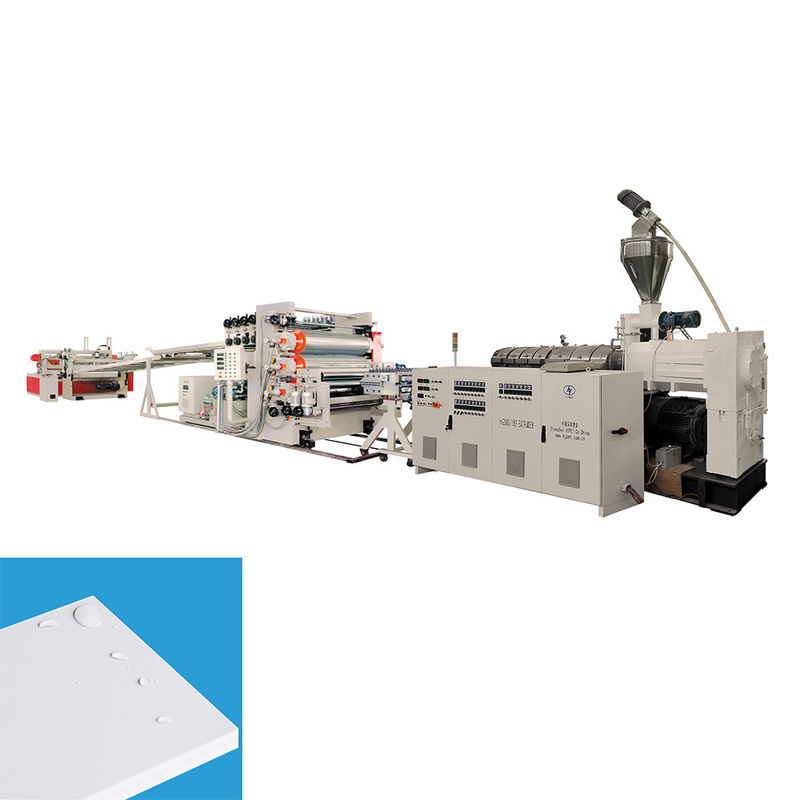

Name: Plastic Sheet Extrusion Machine / Pvc Sheet Extrusion Line 1220 x 2440
Brand: Shenzhen HYPET Co., Ltd.
SKU: HYFF-1200
Price: 100,000.00 USD
Availability: InStock

Home > products > PVC Foam Board Extrusion Line >

Plastic Sheet Extrusion Machine / Pvc Sheet Extrusion Line 1220 x 2440

3m/Min Plastic Sheet Extrusion Machine

3m/Min Pvc Sheet Extrusion Line

ISO9001 Pvc Sheet Extrusion Line

Place of Origin:

China

Brand Name:

SHENZHEN HYPET

Certification:

CE, ISO9001

Model Number:

HYFF-1200

Request A Quote

Product Details

Key Word:

Plastic Sheet Extrusion Machine / Pvc Sheet Extrusion Line 1220 X 2440

Application:

PVC Free Foam Board

Dimension(l*w*h):

25mx2.5mx2.2m

Automatic Grade:

Automatic

Capacity:

300-400KG/H

Warranty:

12 Months After Installation In Local Place

Motor:

Siemens

Raw Material:

PVC Resins+CaCo3

Highlight:

3m/Min Plastic Sheet Extrusion Machine

3m/Min Pvc Sheet Extrusion Line

ISO9001 Pvc Sheet Extrusion Line

Payment & Shipping Terms

Minimum Order Quantity

Plastic Sheet Extrusion Machine / Pvc Sheet Extrusion Line 1220 X 2440 1 set

Price

USD90000/set - USD110000/set

Packaging Details

Plastic Sheet Extrusion Machine / Pvc Sheet Extrusion Line 1220 X 2440 LCL woden case, FCL with film and rope fixing

Delivery Time

Plastic Sheet Extrusion Machine / Pvc Sheet Extrusion Line 1220 X 2440 40-60 work days

Payment Terms

L/C, T/T

Supply Ability

Plastic Sheet Extrusion Machine / Pvc Sheet Extrusion Line 1220 X 2440 10 sets per month

Pvc Free Foamed Board Extrusion Line For Decoration Sheet Making 1220mm Width

Get Best Price

Video

Plastic Board Extrusion Machine With T Die Thickness From 5mm To 20mm

Get Best Price

Video

PVC Foam Board Extrusion Line For Building Templates Using

Get Best Price

Video

PVC Foam Board Production Line 5 - 20mm Thickness 1220mm Width

Get Best Price

+8615002772815

ryan@hypet.com.cn

+86-755-25851030

Contact Now

Product Description

Plastic Sheet Extrusion Machine / Pvc Sheet Extrusion Line 1220 X 2440

Plastic Sheet Extrusion Machine / Pvc Sheet Extrusion Line 1220 X 2440 HYPET Unique Advantages

Three-roller design, precise roller temperature control, suitable for product cooling and forming
Can choose embossing, slitting, laminating and other subsequent processing technology
Siemens PLC control system, equipped with HYPET self-developed software, improves operation efficiency and reduces production costs

Plastic Sheet Extrusion Machine / Pvc Sheet Extrusion Line 1220 X 2440Configuration list

Note: This table as attached file which is for selection of the configuration on the whole line

SN	Items	Choosing configuration	Brand
2	Cooling system of the main control electric cabinet	Fan cooling.	Siemens
3	Main motor	AC motor with famous inverter	Siemens
4	Pressure sensor	HYPET individual temperature and pressure control in two parts	Dynisco
5	Core thermoregulation control	Internal closed loop heat balancing system.
6	Material of screw & barrel type	Nitro Alloy with bi-metal in two parts
7	Quantitative feeding system’s mixing function	High calcium special dosing device in twin screw type.

Plastic Sheet Extrusion Machine / Pvc Sheet Extrusion Line 1220 X 2440Condition of use

1. Plastic Sheet Extrusion Machine / Pvc Sheet Extrusion Line 1220 X 2440Technical features of whole line

SN	Specification	Description	Remark
1	Suitable material	PVC mixed powder	Calcium powder ratio max 300
2	Suitable product	PVC marble sheet
3	Max. output	500-600 kg/h
4	Max production speed	0.5-3 m/min
5	Test and accept	Based on HYPET standard formula
6	Center height	1,000mm
7	Whole line size (L x W x H)	17,000 x 1,600 x 3,250mm
8	Operation direction	From right to left
9	Color of equipment	HYPET white color
10	Control of whole production	Refer to the “configuration list”.
Note	Extrusion capacity will be changed according the processing material and working conditions

2. Plastic Sheet Extrusion Machine / Pvc Sheet Extrusion Line 1220 X 2440Circumstances condition

SN	Condition	Specification	Description
1	Natural circumstance condition	Working place	Indoor use
		Power source	No dangerous area
		Humidity	55%~85% no condensation
		Temperature	0~40 ℃
2	Electricity source	Installation capacity	200kW
		Power supply	3P+N+PE
		Voltage/Frequency	380V/50Hz (Adjustment)
3	Cooling water	Temperature	≤15 ℃
		Water pressure	≥0.3MPa
		Flow	~5 m³/h
4	Air condition	Compressor air pressure	≥0.6MPa
4	Air condition	Flow	~0.9 m³/min

Plastic Sheet Extrusion Machine / Pvc Sheet Extrusion Line 1220 X 2440

Plastic Sheet Extrusion Machine / Pvc Sheet Extrusion Line 1220 x 2440 0

Plastic Sheet Extrusion Machine / Pvc Sheet Extrusion Line 1220 X 2440 Terms & conditions

1. Training and services

1) Instruction of field installation.

2) Equipment field debugging and trial run if required by the buyer according to the rule.

3) Training on field operation and maintenance for customer's personnel.

4) Provide technical consultation service on long-term basis.
