Name: HYPET SMF PVC pulverizer grinder machine powder disc pulverizer milling machine
Brand: Shenzhen HYPET Co., Ltd.
SKU: SMW Series Turbo Pulverizer
Price: 12,550.00 USD
Availability: InStock

Home > products > Auxiliary Machine and Parts >

HYPET SMF PVC pulverizer grinder machine powder disc pulverizer milling machine

PVC pulverizer grinder machine

powder disc pulverizer milling machine

HYPET SMF PVC pulverizer grinder

Place of Origin:

China

Brand Name:

Hypet

Certification:

ISO9001,CE

Model Number:

SMW Series Turbo Pulverizer

Request A Quote

HYPET SMF PVC pulverizer grinder machine powder disc pulverizer milling machine

Product Details

Motor Power:

37KW / 45KW / 55KW / 90KW / 110KW

Max Output:

200-900 Kg/h

Key Parts Warranty:

1year

Engineer Installation Service:

Yes

Highlight:

PVC pulverizer grinder machine

powder disc pulverizer milling machine

HYPET SMF PVC pulverizer grinder

Payment & Shipping Terms

Minimum Order Quantity

1set

Price

USD 6500-18600/set

Packaging Details

Standard Package for sea shipment

Delivery Time

35~45days

Payment Terms

L/C, T/T

Supply Ability

50set/month

China Air compressor BLT-10A in both piston type and screw type for sale

Get Best Price

SRL Vertical PVC mixing hot/cold high speed mixer maching 300/600L for PVC product and high filler pellets

Get Best Price

Air compressor BLT-40A for industrial factory using from China

Get Best Price

New Model Air compressor BLT-30A in both piston type and screw type for industrial factory

Get Best Price

+8615002772815

ryan@hypet.com.cn

+86-755-25851030

Contact Now

Product Description

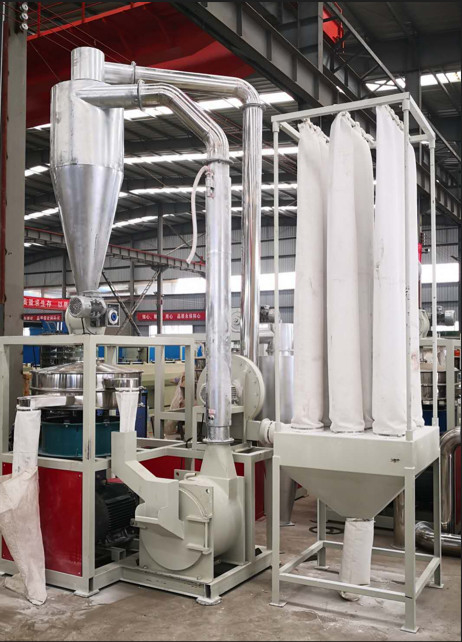

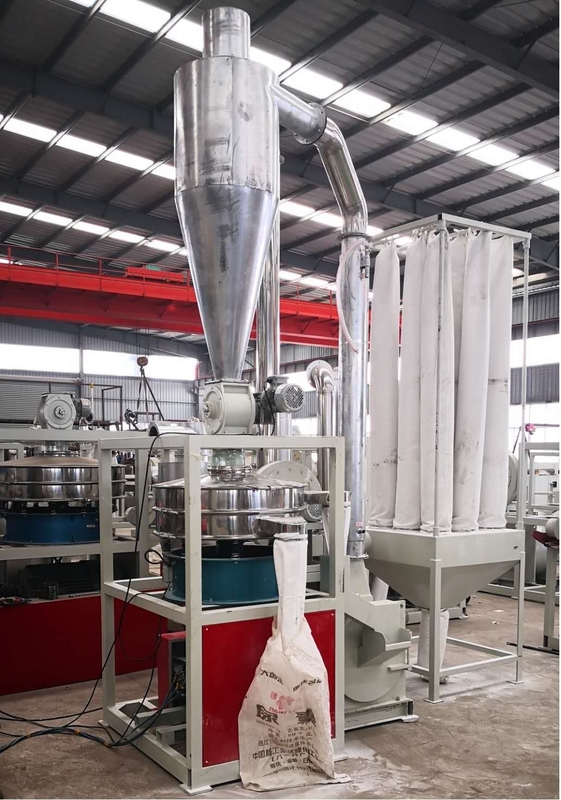

1.SMW Series Turbo Pulverizer
HYPET SMF PVC pulverizer grinder machine powder disc pulverizer milling machine 0

2.HYPET Special features

1. Compared with similar grinders, its output is greatly improved (increase by 20-50%) under the same power. It is energy-saving.

2. The dust collector is added to effectively reduce dust pollution.

3. The discharging of the air shutter reduces labor strength of operating workers.

4. The door cover of the host can be opened for convenience of maintenance and replacement of knives.

5. Wind and water cooling is adopted to decrease the working temperature inside the machine body, the grinded material uneasy for denaturalization and also conducive to grind heat sensitivity plastics such as parts of PE and ABS material and so on

6. The powder mesh is adjustable (10-120 mesh)

3.Commercial items

SN	Item	Qty	Unit Price	Total Price
1	PVC pulverizer MF-500 motor 37KW	1	6500		6500
2	PVC pulverizer MF-500 motor 45KW	1	7100		7100
3	PVC pulverizer MF-600 motor 55KW	1	7800		7800
4	PVC pulverizer MF-800 motor 90KW	1	16800		16800
5	PVC pulverizer MF-800 motor 110KW	1	18600		18600

					USD/SET EXW

4.Main Specification of the Machine

Item	Specification
Model	SMW-500	SMW-500	SMW-600	SMW-800	SMW-800
Diameter of disc(mm)	Ø483±1	Ø483±1	Ø583±1	Ø783±1	Ø783±1
Rotary blade	24	24	28	36	36
Static blade	12	12	14	19	19
Main motor power(kw)	37	45	55	90	110
Capacity(kg/h)	200-300	250-350	350-400	650-700	800-900

5.Cooperative Brands:

6.Exhibition:
