Name: Cooling tower Volume 60t HYCT60 Application for chilling cooling water
Brand: Shenzhen HYPET Co., Ltd.
SKU: HYCT60 water cooling tower
Price: 1700 USD
Availability: InStock

Home > products > Auxiliary Machine and Parts >

Cooling tower Volume 60t HYCT60 Application for chilling cooling water

HYCT60 Cooling tower

60t Cooling Water Tower

Chilling Cooling Water Tower

Place of Origin:

China

Brand Name:

Hypet

Certification:

ISO9001,CE

Model Number:

HYCT60 water cooling tower

Request A Quote

Cooling tower Volume 60t HYCT60 Application for chilling cooling water

Product Details

Key Parts Warranty:

1year

Engineer Installation Service:

Yes

Cooling Tower Type:

Counter Flow Round Water Tower

Cooling Capacity:

234240 Kcal/h

Power Supply:

380V/3P/50Hz

Motor Power:

1.5 Kw

Highlight:

HYCT60 Cooling tower

60t Cooling Water Tower

Chilling Cooling Water Tower

Payment & Shipping Terms

Minimum Order Quantity

1set

Price

USD 1700/set

Packaging Details

Standard Package for sea shipment

Delivery Time

35~45days

Payment Terms

L/C, T/T

Supply Ability

50set/month

China Air compressor BLT-10A in both piston type and screw type for sale

Get Best Price

SRL Vertical PVC mixing hot/cold high speed mixer maching 300/600L for PVC product and high filler pellets

Get Best Price

Air compressor BLT-40A for industrial factory using from China

Get Best Price

New Model Air compressor BLT-30A in both piston type and screw type for industrial factory

Get Best Price

+8615002772815

ryan@hypet.com.cn

+86-755-25851030

Contact Now

Product Description

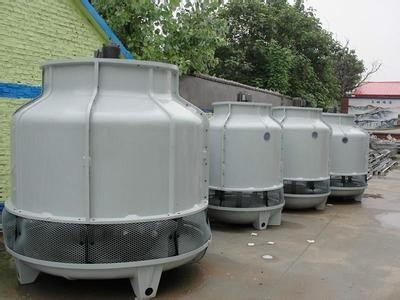

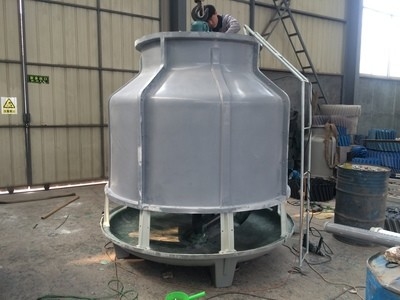

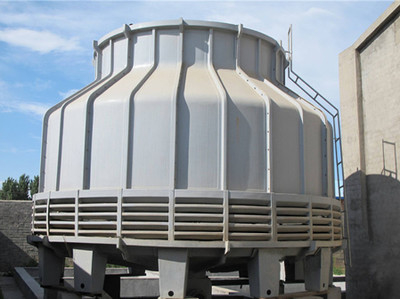

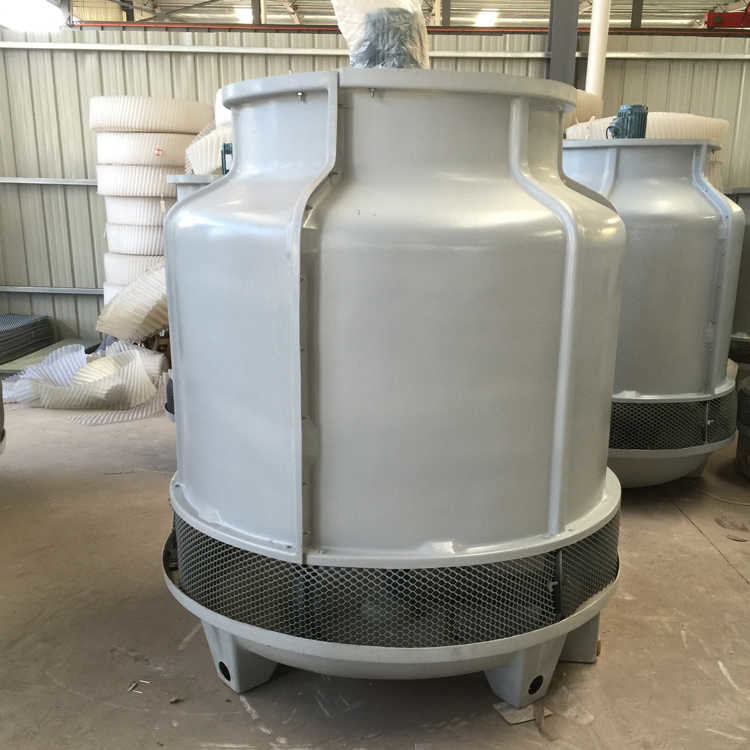

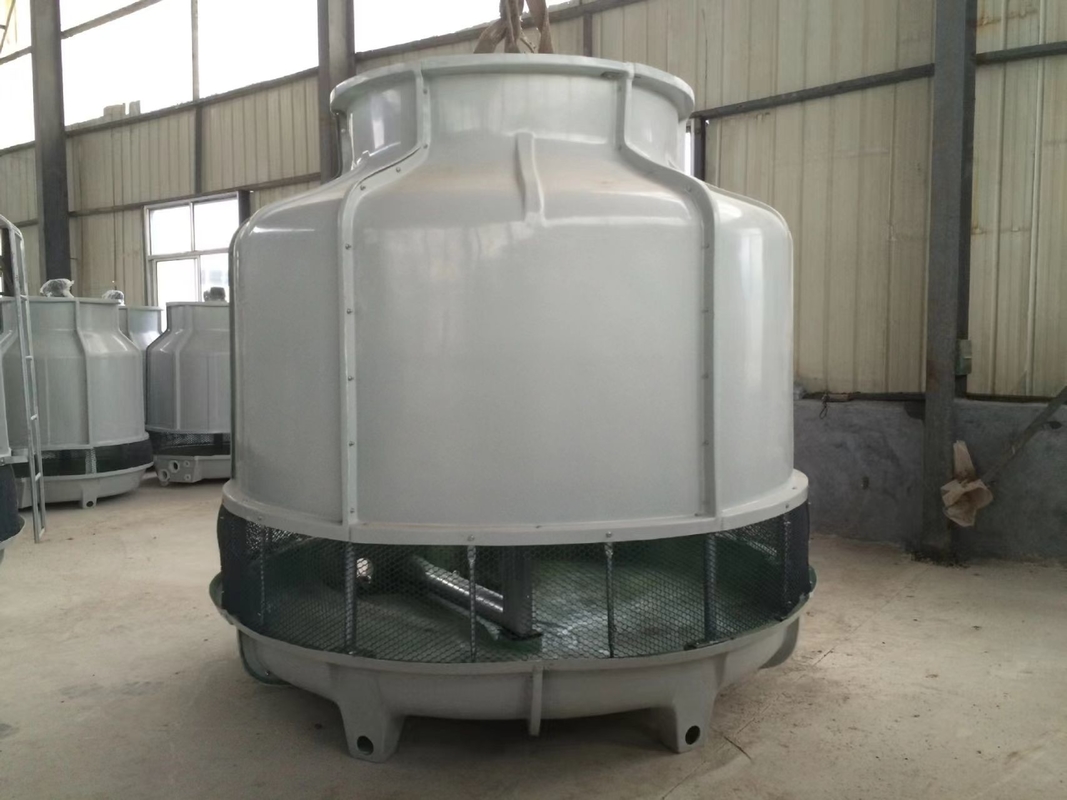

1. HYCT60 water cooling tower
Cooling tower Volume 60t HYCT60 Application for chilling cooling water 0

Cooling tower Volume 60t HYCT60 Application for chilling cooling water 1

Cooling tower Volume 60t HYCT60 Application for chilling cooling water 2

Cooling tower Volume 60t HYCT60 Application for chilling cooling water 4
2.HYPET Special features

1). The exterior of the tower body is made of imported gel coat,and the interior is made of high quality glass fiber reinforced plastic.

2). The applicable temperature of the normal temperature cooling tower packing is 0-60 degrees, which water distribution capacity is strong and the resistance is small.

3).Stainless steel bearings,flexible operation,even water distribution;ABS water pipe is used,and a water collecting plate is installed on the water pipe.

4). Low noise ABS fan blades designed according to cooling tower parameters.

5). The low-noise motor specially designed for cooling towers has strong power and long life.

6). It has the function of automatic switch pipeline and can control the water level.

3.Commercial items

SN	Item	Quantity	Unit Price/USD Total Price/USD
1	Water cooling tower HYCT60	1	1700	1700

				Total in EXW

4.Main Specification of the Machine

SN	Description	Specification
1	Cooling tower type	Counter flow round water tower
2	Cooling tower model	HYCT-60
3	Cooling circulating water volume	46.8 M³/h
4	Inlet water temperature/outlet water temperature	37 ℃/32 ℃
5	Ambient dry bulb/wet bulb temperature	31.5 ℃/27 ℃
6	Cooling capacity	234240 kcal/h
7	Noise value	57 dB(A)
8	Power Supply	380V/3P/50Hz
9	Water quality requirements	PH= 6-8
10	Gas-water ratio	0.62 kg/kg
11	Flying water loss	≤0.02%
12	Evaporation loss	≤0.833%
13	Net weight	240 kg
14	Operating weight	1250 kg
15	Fan type	Axial flow type
16	Air volume	25740 M³/h
17	Fan speed	710 r/min
18	Blade diameter	1150 mm
19	Number of blades	4 pcs/set
20	Transmission mode	Direct drive
21	motor speed	710 r/min
22	Motor power	1.5 kw
23	Motor start mode	Direct start
24	Water tower diameter	2110 mm
25	Water tower height	2405 mm
26	Size of inlet/outlet pipe	100 mm/100 mm
27	Size of full pipe/drain pipe	25 mm/25 mm
28	Automatic water filling size	20 mm
29	Motor	Fully enclosed waterproof type
30	Fan	A.B.S
31	Shell body	High quality glass fiber mat and resin synthesis
32	basin	High quality glass fiber mat and resin synthesis
33	Sprinkler system	PVC
34	film	PVC, Flame retardant type
35	Float valve	PVC
36	Air inlet system	PVC
