10-38mm PVC Fiber Reinforced Hose Machine Two Layers Soft Pvc & One Layer Fiber

10-38mm PVC Fiber Reinforced Hose Machine Two Layers Soft Pvc & One Layer Fiber

PVC Fiber Reinforced Hose Machine

One Layer Fiber Reinforced Hose Machine

Two Layers Fiber Reinforced Hose Machine

Place of Origin:

China

Brand Name:

HYMAX

Certification:

ISO9001,CE

Model Number:

HYSJ65/30

Contact Us
Request A Quote
Product Details
Screw Design:
Single-screw
Screw L/d Ratio:
30:1
Screw Speed (rpm):
110
Voltage:
380V 50HZ 3Phase(Customized)
Extruder Type:
Single Screw
Plastic Processed:
PVC, Soft PVC
Application:
PIPE
Warranty:
1 Year
Weight (KG):
5000
Screw Material:
38CrMoALA
Screw Diameter (mm):
65/30
Place Of Origin:
Hubei, China
Brand Name:
HYMAX
Dimension(l*w*h):
2,000 X 1,450 X 1,800mm
Power (kw):
18.5
Key Selling Points:
Energy Saving
Video Outgoing-inspection:
Provided
Core Components:
Motor, Pump, PLC, Gearbox, Screw
Machinery Test Report:
Not Available
Product Name:
PVC Fiber Reinforced Braided Hose Extruding Machine
Pipe Layers:
Two Layers PVC+ One Layer Fiber
Pipe Diameter Range:
10-38mm
Extruder:
HYSJ65/30 *2
Output:
80-120kg/h
Die Head:
2 Sets Die Head
Processing Material:
PVC Powder
Motor/Inverter:
Siemens/ABB/China Top Brand
Control System:
PLC With Touch Screen
Engineer Installation Service:
Yes
Highlight:

PVC Fiber Reinforced Hose Machine

,

One Layer Fiber Reinforced Hose Machine

,

Two Layers Fiber Reinforced Hose Machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
USD 34800/set
Packaging Details
Standard Package for sea shipment
Delivery Time
65 working days
Payment Terms
L/C, T/T
Supply Ability
100 SETS PER MONTH
Product Description
10-38mm fiber reinforce hose production line
1. High output: Ensure you the highest output as compared with other supplier.
2. New technology gear box: High torque gear box, one body design, two cooling system.
3. Screw and barrel: Bi-metal material ensure longer working life, ensuring running non-stop 24 hours /day.
4. Energy saving heater: Heater on the barrel is energy saving type by 15%.
5. Electric elements and box: In detachable, with world famous brand such ABB, Siemens, Schneider, Delta, well organized.
6. HYPET PLC control system: With operation easy, management full, energy saving and counting, and intelligent control system.
7. Pipe brighten device: To make the pipe shining and smoothing.
8. Vacuum tank stainless steel 304: Water level and temperature controlled automatically.

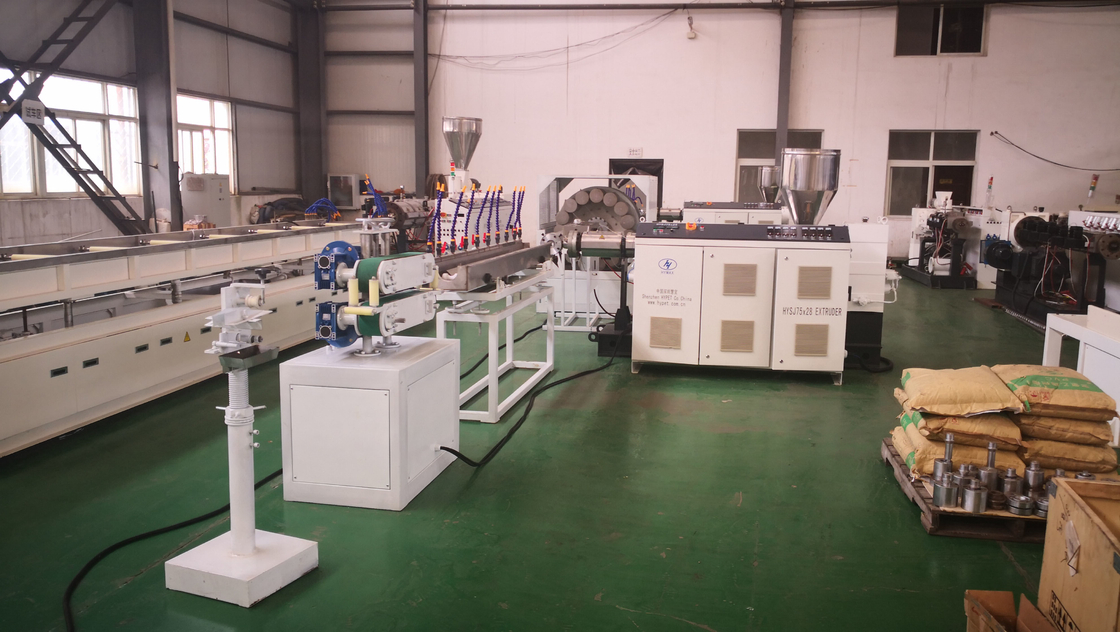

10-38mm PVC Fiber Reinforced Hose Machine Two Layers Soft Pvc & One Layer Fiber 0

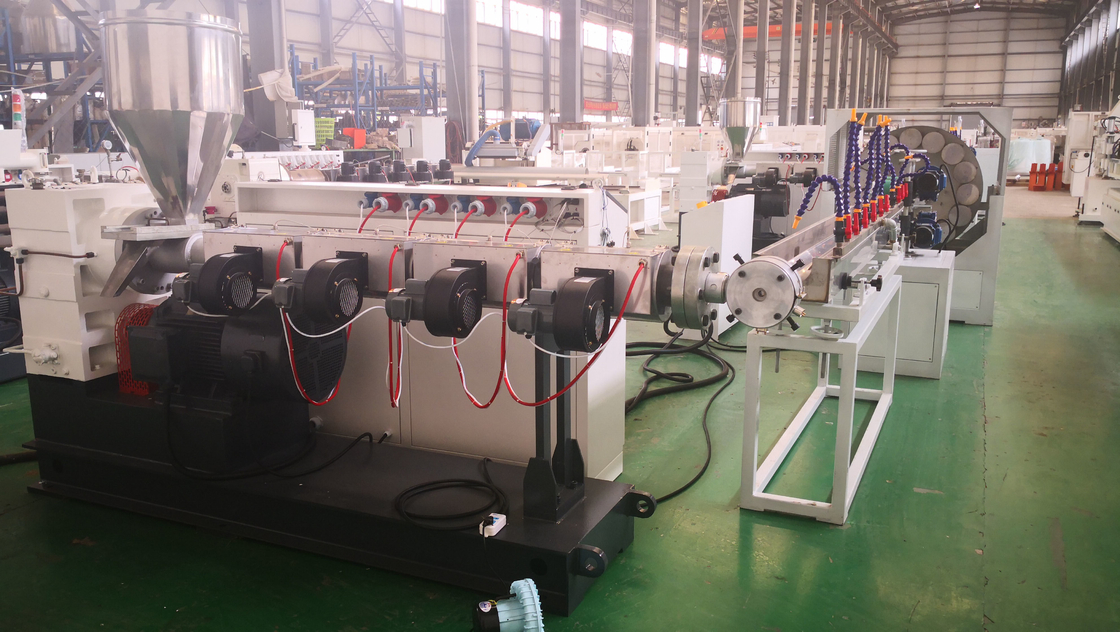

10-38mm PVC Fiber Reinforced Hose Machine Two Layers Soft Pvc & One Layer Fiber 1

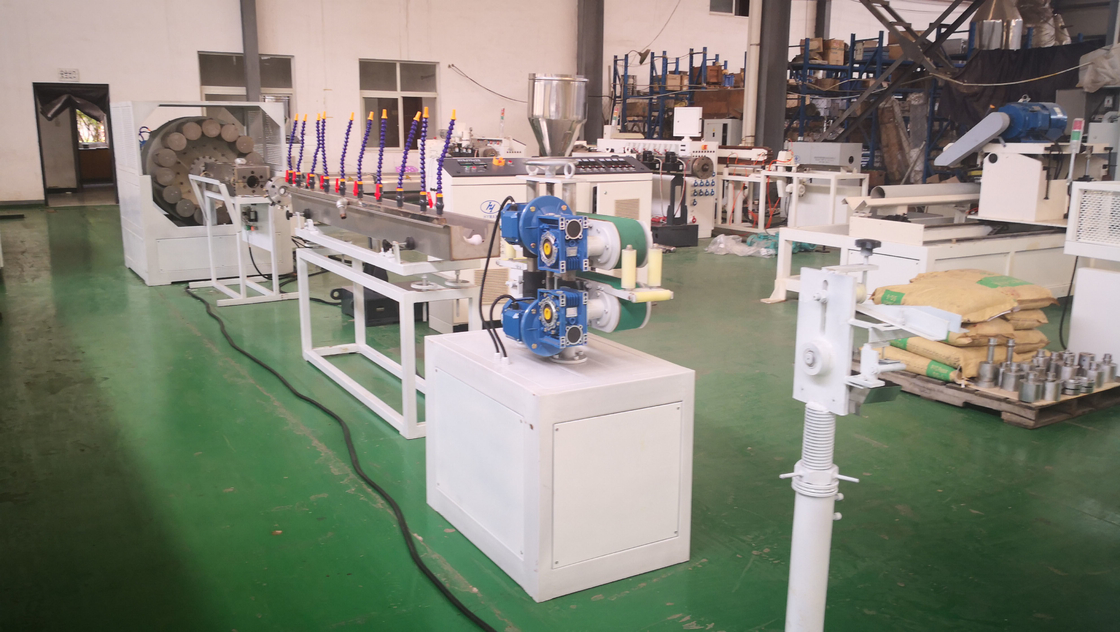

10-38mm PVC Fiber Reinforced Hose Machine Two Layers Soft Pvc & One Layer Fiber 2

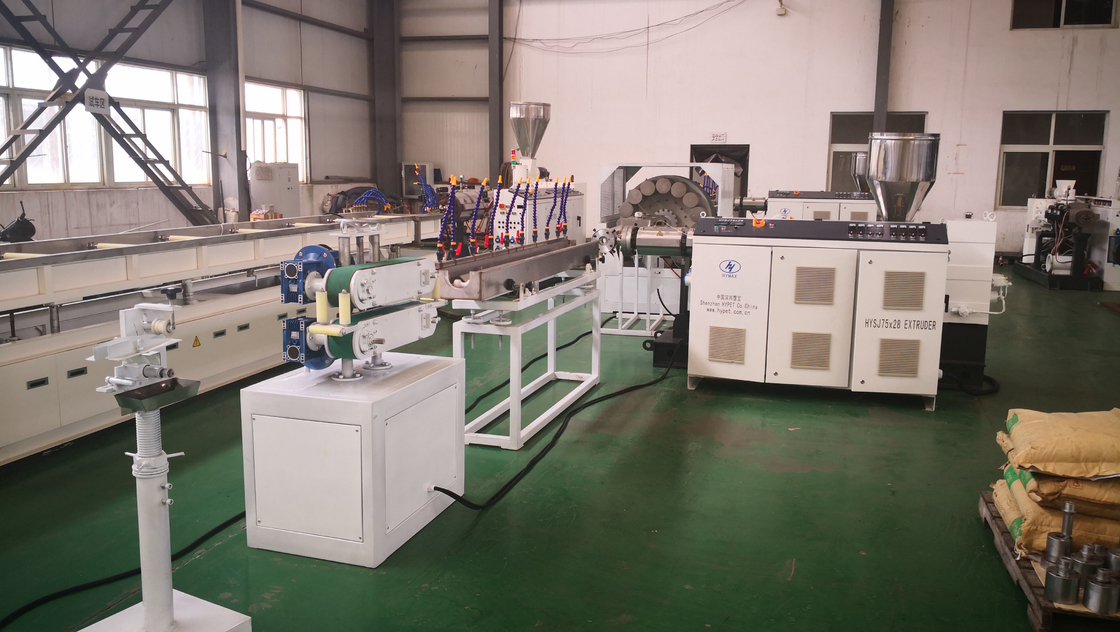

10-38mm PVC Fiber Reinforced Hose Machine Two Layers Soft Pvc & One Layer Fiber 3

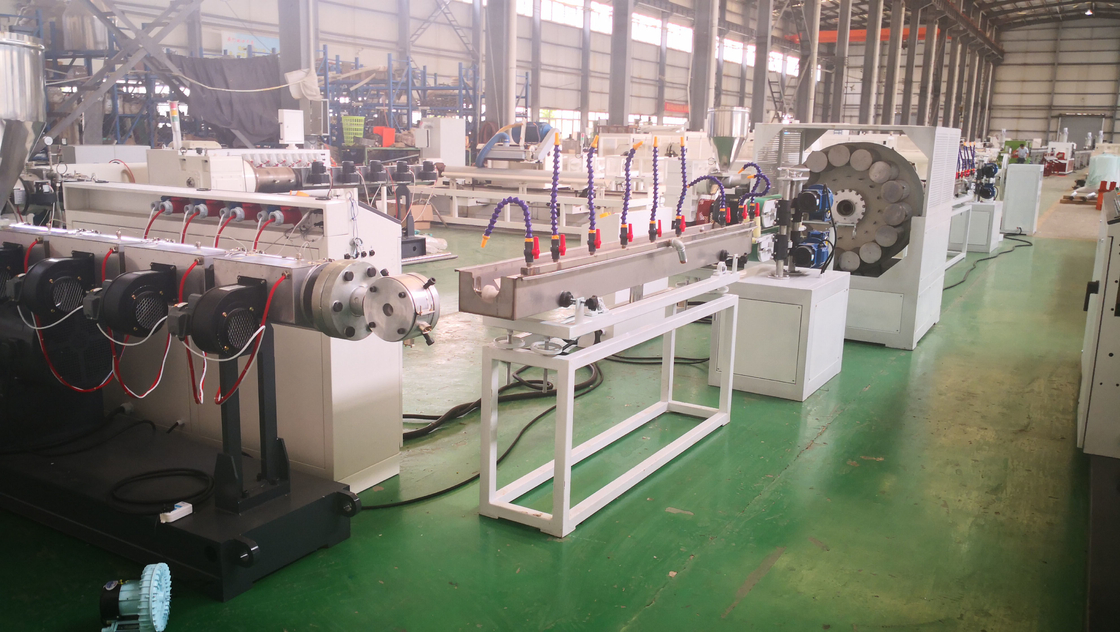

10-38mm PVC Fiber Reinforced Hose Machine Two Layers Soft Pvc & One Layer Fiber 4

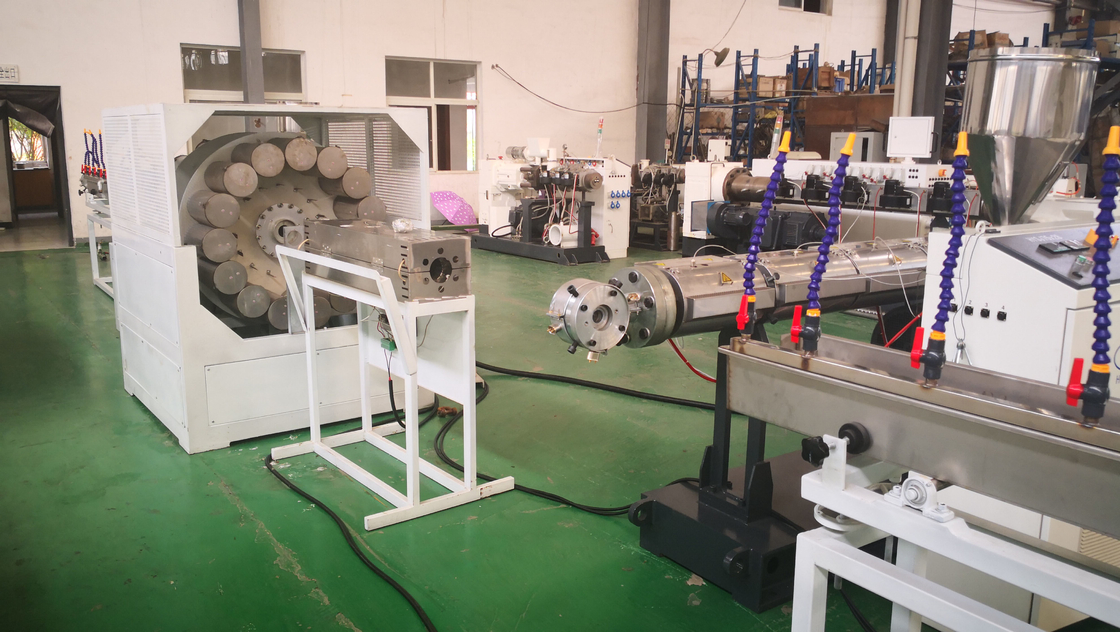

10-38mm PVC Fiber Reinforced Hose Machine Two Layers Soft Pvc & One Layer Fiber 5
