Product Details:
|
| Extruder: | Twin Conic Screw Extruder ZS55/120 | Voltage: | 380V , 50HZ / (Customized) |
|---|---|---|---|
| Plastic Processed: | PVC Composite Powder | Application: | Pipe Production |
| Warranty: | 15 Months | Inverter: | ABB Brand |
| Contactor: | Siemens | Screw Design: | Double-screw |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Video Technical Support,Online Support | ||
| High Light: | 160mm PVC Pipe Production Line,20mm PVC Pipe Production Line |
||

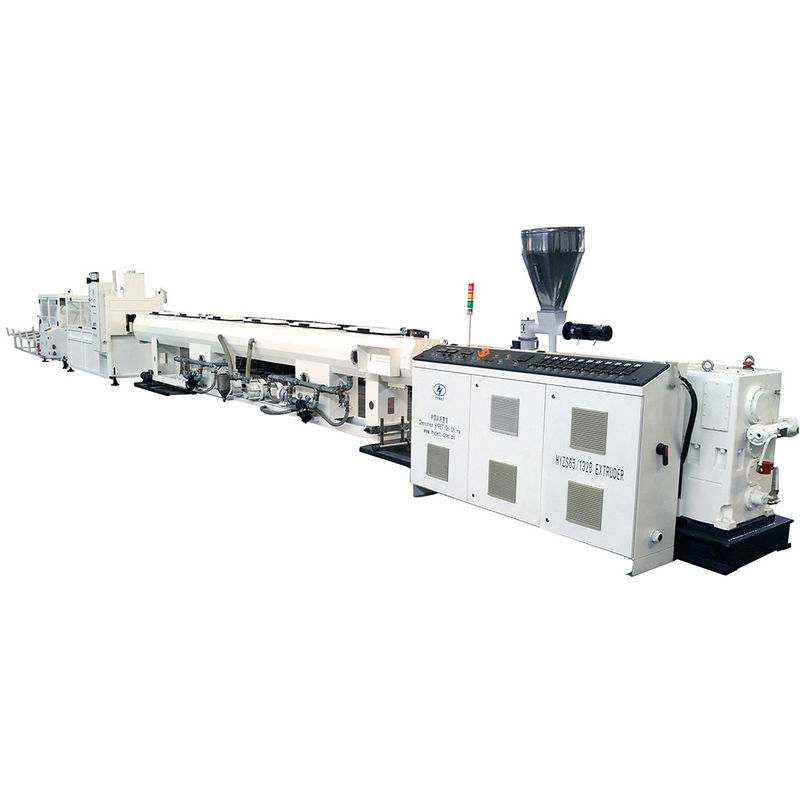

High Speed Plastic Pipe Production Line For 20mm - 160mm Pvc Pipe
Process flow:
PVC powder + additive → mixing → auto loader → twin screw extruder → mould → vacuum calibration machine → haul off machine → cutting machine → stacker or automatic belling machine
1. Conical twin screw extruder
2. Die head. Due to the diameter, it can be single, double and four die head
3. Vacuum tank: due to diameter, it can be designing of single, double vacuum chambers
4. Haul-offs: due to diameter, it can be designing of double, three, four, six, eight caterpillars
5. Cutter: due to diameter, it can be designing of saw cutter or planetary cutter
6. Stacker or automatic belling machine
HYPET unique advantages Except the same features with other supplier.
| SN | Parts | Description |
| 1 | High output | Ensure you the highest output as compared with other supplier. |
| 2 | New technology gear box | High torque gear box |
| 3 | Screw and barrel | Bi-metal material ensure you longer working life, ensuring 24 hours. |
| 4 | Energy saving heater | Heater on the barrel is energy saving type by 15% |
| 5 | Electric elements and box | In detachable, with world famous brand such ABB, Siemens, Schneider, Delta, well organized. |
| 6 | HYPET PLC control system | With operation easy, management full, energy saving and counting, and intelligent control system. |
| 7 | Pipe brighten device | To make the pipe shining and smoothing |
| 8 | Vacuum tank stainless steel 304 | Water level and temperature controlled automatically |
| 9 | Dustless cutter | In new device for cutting pipe to save material. |
Technical features of whole line
| SN | Specification | Description | Remark |
| 1 | Suitable material | PVC powder | |
| 2 | Pipe diameter range | Ø20-Ø160mm | |
| 3 | Production speed | 1.5 ~ 15 m/min | |
| 4 | Max. output | 230kg/h | |
| 5 | Test and accept | Based on HYPET standard formula. | |
| 6 | Center height | 1,000mm | |
| 7 | Whole line size (L x W x H) | 22,000 x 1,200 x 2,450mm | |
| 8 | Operation direction | From right to left | |
| 9 | Color of equipment | HYPET white color | |
| 10 | Control of whole production | Refer to the “configuration list”. | |
| Note | Extrusion capacity will be changed according the processing material and working conditions | ||
Circumstances condition
| SN | Condition | Specification | Description |
| 1 |
Natural circumstance condition |
Working place | Indoor use |
| Power source | No dangerous area | ||
| Humidity | 55%~85% no condensation | ||
| Temperature | 0~40 ℃ | ||
| 2 |
Electricity source |
Installation capacity | 100 kW |
| Actual power consumption | 30 kW | ||
| Power supply | 3P+N+PE | ||
| Voltage/Frequency | 380V/50Hz, others can be optional | ||
| 3 | Cooling water | Temperature | ≤15 ℃ |
| Water pressure | ≥0.3MPa | ||
| Flow | ~15 m3/h | ||
| 4 | Air condition | Compressor air pressure | ≥0.6MPa |
| Flow | ~0.9 m3/min |
Terms & conditions
1. Training and services
1) Instruction of field installation
2) Equipment field debugging and trial run if required by the buyer according to the rule.
3) Training on field operation and maintenance for customer's personnel.
4) Provide technical consultation service on long-term basis.
2. Installation and debugging
When the machine arrives at site, the customer should install it on the appropriate position according to the specifications provided by the supplier; and then the supplier should send its engineers to the site if requirement approved,in order to instruct the customer about trial run and debugging. The customer should provide necessary conditions for trial run and provide materials for trial run, and should decide the processing conditions in trial run with consideration of the supplier's opinions.
1) The price covers the pre-commissioning of the machinery before shipment at Seller's site. The Seller is obliged to test the performance of machinery.
2) The Buyer is obliged to provide suitable space, tools and manpower for the commissioning of the order.
3. Pricing
1) The above mentioned quotation is valid within 30 days counted from the issue date of quotation.
2) The price and machinery configuration should be updated and confirmed by the Seller in the case that the quotation has been beyond the validity period.
3) The above mentioned quotation is based on Ex works. Sea transportation and wooden case packing is excluded.
4) The price does not cover the cost of testing material. The testing material will be supplied by the Buyer. Or the Seller will purchase the material as requested by the Buyer at Buyer's cost.
5) The price does not include the cost of commissioning at Buyer's site.
The Seller reserves the right to modify the specification and design of the machine in order to enhance the product quality.
4. Time of delivery
1) When the contract becomes valid, the machine should be delivered within 50 days since receipt of the advance payment. And the equipment will be in normal operation after debugging within two weeks after arrival.
2) During production, provided that the Buyer requests to modify the specification of the order, the Buyer shall notify the Seller of this modification in written form. Upon receipt of the notice, the Seller will quote to the Buyer the cost of this modification and notify the Buyer of any possible delay due to this modification.
5. Guarantee clause
1) Guarantee is 1 year (excluding human factor and wearing parts).
2) Under proper working conditions, 12 months from the date of completion of commissioning at the buyer's site, and should be at the latest within 14 months from the issuing date of Bill of Lading.
