Product Details:
|
| Key Word: | Hot Water Pipe Extrusion Machine / PPR Pipe Extrusion Machine | Application: | 16mm - 63mm PPR PP Pipe |
|---|---|---|---|
| Voltage: | 380V 50HZ 3Phase(Customized) | Dimension(l*w*h): | Depend |
| Motor: | Germany SIEMENS Motor,SIEMENS PPR Pipe Production Line / PPR Pipe Making Machine | Warranty: | 12 Months After Installation In Local Place |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Video Technical Support,Online Support | ||
| High Light: | 16mm PPR Pipe Extrusion Line,PPR Pipe Extrusion Line 110kg/H,63mm pprc pipe machine |
||

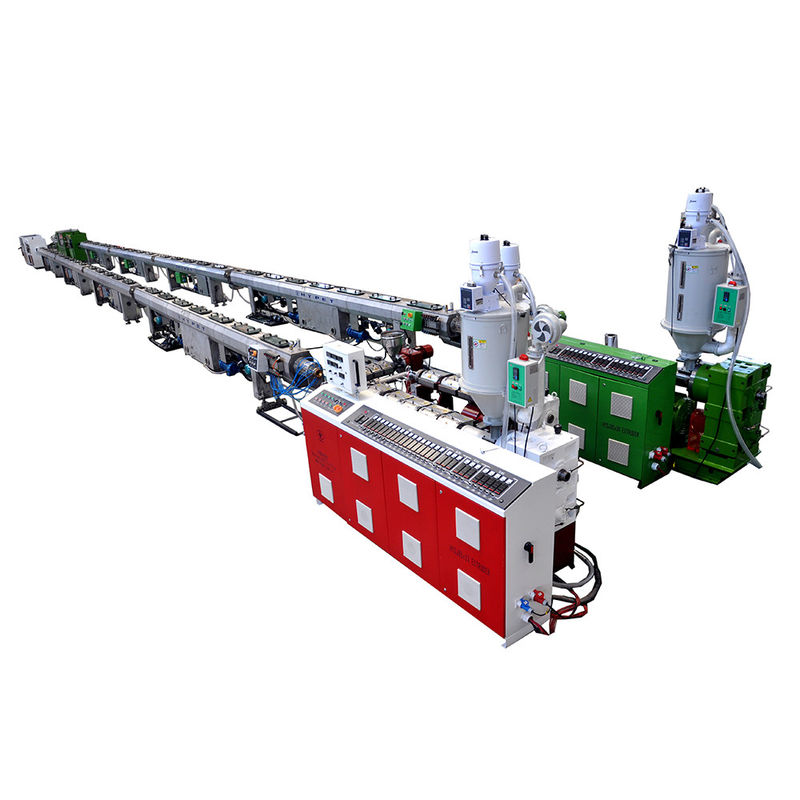

Hot Water Pipe Extrusion Machine / PPR Pipe Extrusion Machine 16mm-63mm 110kg/H
Hot Water Pipe Extrusion Machine / PPR Pipe Extrusion Machine Production line composition
Hot Water Pipe Extrusion Machine / PPR Pipe Extrusion Machine HYPET unique advantages Except the same features with other supplier.
| SN | Items | specification |
| 1 | High output | Ensure you the highest output as compared with others |
| 2 | New technology gear box | High torque gear box |
| 3 | Screw and barrel | Bi-metal material ensure you longer working life, ensuring 24 months |
| 4 | Electric elements and box | In detachable, with world famous brand such as ABB, Siemens, Schneider, Delta, well organized. |
| 5 | HYPET PLC control system | With operation easy, management full, energy saving and counting, and intelligent control system |
| 6 | Pipe brighten device | To make the pipe shining and smoothing |
Hot Water Pipe Extrusion Machine / PPR Pipe Extrusion Machine Configuration list
Note: This table as attached file, which is for selection of the configuration on the whole line
| SN | Items | Choosing configuration |
| 1 | Production control system | Digital control system |
| 2 | Cooling system of the main control electric cabinet | Fan cooling cabinet |
| 3 | Main motor | AC motor with famous inverter |
| 4 | Pressure sensor | HYPET individual temperature and pressure control in two parts |
| 5 | Material of screw & barrel type | Nitro Alloy with bi-metal in two layers |
| 6 | Die head | High speed die head in German Tech |
| 7 | Pipe calibrator sleeve | Copper calibrator sleeve |
| 8 | Cutter | Chipless in new technology |
Hot Water Pipe Extrusion Machine / PPR Pipe Extrusion Machine Condition of use
1. Hot Water Pipe Extrusion Machine / PPR Pipe Extrusion Machine Technical features of whole line
| SN | Specification | Description |
| 1 | Suitable material | PPR pellets |
| 2 | Pipe diameter range | 20~63mm |
| 3 | Production speed | 1.3~13 m/min |
| 4 | Max. output | 110kg/h |
| 5 | Test and accept | Based on HYPET standard formula. |
| 10 | Control of whole production | Refer to the “configuration list”. |
| Note | Extrusion capacity will be changed according the processing material and working conditions | |
2. Hot Water Pipe Extrusion Machine / PPR Pipe Extrusion Machine Circumstances condition
| Condition | Specification | Description |
|
Natural circumstance condition |
Working place | Indoor use |
| Power source | No dangerous area | |
| Humidity | 55%~85% no condensation | |
| Temperature | 0~40 ℃ | |
|
Electricity source |
Installation capacity | 100 kW |
| Actual power consumption | 40 kW | |
| Power supply | 3P+N+PE | |
| Voltage/Frequency | 380V/50Hz, other can be option | |
| Cooling water | Temperature | ≤15 ℃ |
| Water pressure | ≥0.3MPa | |
| Flow | ~15 m3/h | |
| Air condition | Compressor air pressure | ≥0.6MPa |
| Flow | ~0.9 m3/min |
Hot Water Pipe Extrusion Machine / PPR Pipe Extrusion Machine Output chart with detailed parameters
Pipe Dimension (for reference)
| No. | OD(mm) | Wall thickness (mm) | ||
| S-3.2 | S-4 | S-5 | ||
| 1 | 20 | 2.8 | 2.3 | 2.0 |
| 2 | 25 | 3.5 | 2.8 | 2.3 |
| 3 | 32 | 4.4 | 3.6 | 2.9 |
| 4 | 40 | 5.5 | 4.5 | 3.7 |
| 5 | 50 | 6.9 | 5.6 | 4.6 |
| 6 | 63 | 8.6 | 7.1 | 5.8 |
Hot Water Pipe Extrusion Machine / PPR Pipe Extrusion Machine Pipe production output ( estimated )
| Output chart -6 Bar | |||||
| No. | OD(mm) | Wall-Thickness(mm) | Weight/meter | line speed | Output |
| 1 | 20 | 2.3 | 0.12 | 12meter/min | 85kg/h |
| 2 | 25 | 2.8 | 0.18 | 10meter/min | 108kg/h |
| 3 | 32 | 3.6 | 0.30 | 6meter/min | 107kg/h |
| 4 | 40 | 4.5 | 0.47 | 4meter/min | 110kg/h |
| 5 | 50 | 5.6 | 0.73 | 2.5meter/min | 108kg/h |
| 6 | 63 | 7.1 | 1.16 | 1.5meter/min | 104kg/h |
Hot Water Pipe Extrusion Machine / PPR Pipe Extrusion Machine
Hot Water Pipe Extrusion Machine / PPR Pipe Extrusion Machine Terms & conditions
1. Hot Water Pipe Extrusion Machine / PPR Pipe Extrusion Machine Training and services
1) Instruction of field installation.
2) Equipment field debugging and trial run if required by the buyer according to the rule.
3) Training on field operation and maintenance for customer's personnel.
4) Provide technical consultation service on long-term basis.
2. Hot Water Pipe Extrusion Machine / PPR Pipe Extrusion Machine Installation and debugging
When the machine arrives at site, the customer should install it on the appropriate position according to the specifications provided by the supplier; and then the supplier should send its engineers to the site if requirement approved,in order to instruct the customer about trial run and debugging. The customer should provide necessary conditions for trial run and provide materials for trial run, and should decide the processing conditions in trial run with consideration of the supplier's opinions.
1) The price covers the pre-commissioning of the machinery before shipment at Seller's site. The Seller is obliged to test the performance of machinery.
2) The Buyer is obliged to provide suitable space, tools and manpower for the commissioning of the order.
3) This Price does not included commission and installation in buyer’s factory.
