Product Details:
|
| Key Word: | Cable Duct PVC Profile Extrusion Machine | Power: | 380V 50HZ 3Phase |
|---|---|---|---|
| Application: | Profile | Product Material: | PVC,WPC |
| Warranty: | 12 Months After BL | Inverter: | ABB |
| Motor: | Siemens | ||
| High Light: | 160kg/H Profile Extrusion Line,78kW Profile Extrusion Line,160kg/H plastic profile extrusion line |
||

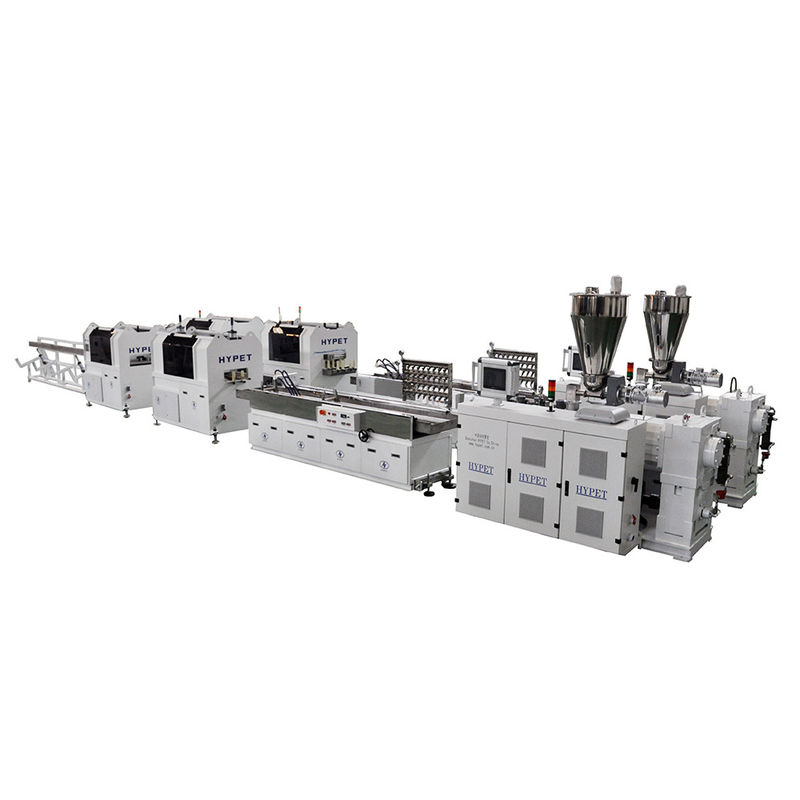

Cable Duct PVC Profile Extrusion Machine / PVC Trunk Making Machine
Cable Duct PVC Profile Extrusion Machine Production line composition
Cable Duct PVC Profile Extrusion Machine Auxiliary machines for optional
Cable Duct PVC Profile Extrusion Machine HYPET Unique Advantages
New generation gear box to put bearings near to the screws not in the far back;
HYPET Extruder + die device to make the profile more hard & bright;
Electric cabinet can be separated; Electrical cabinet and mechanical detachable, as Cincinnati structure;
HYPET made own PLC control program to meet intelligent requirement;
Cable Duct PVC Profile Extrusion Machine Condition of use
1. Cable Duct PVC Profile Extrusion Machine Technical features of whole line
| SN | Specification | Description | Remark |
| 1 | Suitable material | PVC mixed powder | |
| 2 | Max product size | 150*150mm | |
| 3 | Production speed | 6 m/min | |
| 4 | Max. output | 120~160 kg/h | The output will have a corresponding change depending on the material being processed, product specifications, and operating conditions |
| 5 | Test and accept | Based on HYPET standard formula. | |
| 6 | Center height | 1,000mm | |
| 7 | Whole line size (L x W x H) | 24,000 x 1,800 x 2,200mm | |
| 8 | Operation direction | From right to left | |
| 9 | Color of equipment | HYPET white color | |
| 10 | Control of whole production | Refer to the “configuration list”. | |
| Note | Extrusion capacity will be changed according the processing material and working conditions | ||
2. Cable Duct PVC Profile Extrusion Machine Circumstances condition
| SN | Condition | Specification | Description |
| 1 |
Natural circumstance condition |
Working place | Indoor use |
| Power source | No dangerous area | ||
| Humidity | 55%~85% no condensation | ||
| Temperature | ≤20℃ ℃ | ||
| 2 |
Electricity source |
Installation capacity | 78 kW |
| Power supply | 3P+N+PE | ||
| Voltage/Frequency | 380V/50Hz other can be option | ||
| 3 | Cooling water | Temperature | ≤15 ℃ |
| Water pressure | ≥0.3MPa | ||
| Flow | ~15 m3/h | ||
| 4 | Air condition | Compressor air pressure | ≥0.6MPa |
| Flow | ~0.9 m3/min |
Cable Duct PVC Profile Extrusion Machine Terms & conditions
1. Training and services
1) Instruction of field installation.
2) Equipment field debugging and trial run if required by the buyer according to the rule.
3) Training on field operation and maintenance for customer's personnel.
4) Provide technical consultation service on long-term basis.
2. Installation and debugging
When the machine arrives at site, the customer should install it on the appropriate position according to the specifications provided by the supplier; and then the supplier should send its engineers to the site if requirement approved,in order to instruct the customer about trial run and debugging. The customer should provide necessary conditions for trial run and provide materials for trial run, and should decide the processing conditions in trial run with consideration of the supplier's opinions.
1) The price covers the pre-commissioning of the machinery before shipment at Seller's site. The Seller is obliged to test the performance of machinery.
2) The Buyer is obliged to provide suitable space, tools and manpower for the commissioning of the order.
3) This Price does not included commission and installation in buyer’s factory.
3. Guarantee clause
1) Guarantee is 1 year (excluding human factor and wearing parts).
2) Under proper working conditions, 12 months from the date of completion of commissioning at the buyer's site, and should be at the latest within 14 months from the issuing date of Bill of Lading.
