Plastic Pipe Extrusion Line / Pvc Pipe Extrusion Line

Plastic Pipe Extrusion Line / Pvc Pipe Extrusion Line

OD40mm Small Pvc Pipe Making Machine

Small Pvc Pipe Making Machine 500kg/H

Tube Extrusion Line 500kg/H

Place of Origin:

China

Brand Name:

SHENZHEN HYPET

Certification:

CE, ISO9001

Model Number:

HYPVC-63 Plastic Pipe Extrusion Line / Pvc Pipe Extrusion Line

Contact Us
Request A Quote
Product Details
Key Word:
Plastic Pipe Extrusion Line / Pvc Pipe Extrusion Line
Voltage:
380V 50HZ 3Phase(Customized)
Automatic Grade:
Automatic
Control:
PLC
Application:
Pipe
Inverter:
ABB
Contactor:
Siemens,Schnerder
Warranty:
18 Months
Highlight:

OD40mm Small Pvc Pipe Making Machine

,

Small Pvc Pipe Making Machine 500kg/H

,

Tube Extrusion Line 500kg/H

Payment & Shipping Terms
Minimum Order Quantity
Plastic Pipe Extrusion Line / Pvc Pipe Extrusion Line 1 set
Price
USD40000/set - USD55000/set
Packaging Details
Plastic Pipe Extrusion Line / Pvc Pipe Extrusion Line Standard Export Packaging
Delivery Time
Plastic Pipe Extrusion Line / Pvc Pipe Extrusion Line40-60 work days
Payment Terms
L/C, T/T
Supply Ability
Plastic Pipe Extrusion Line / Pvc Pipe Extrusion Line 10 sets per month
Product Description

Plastic Pipe Extrusion Line / Pvc Pipe Extrusion Line 20mm - 63mm

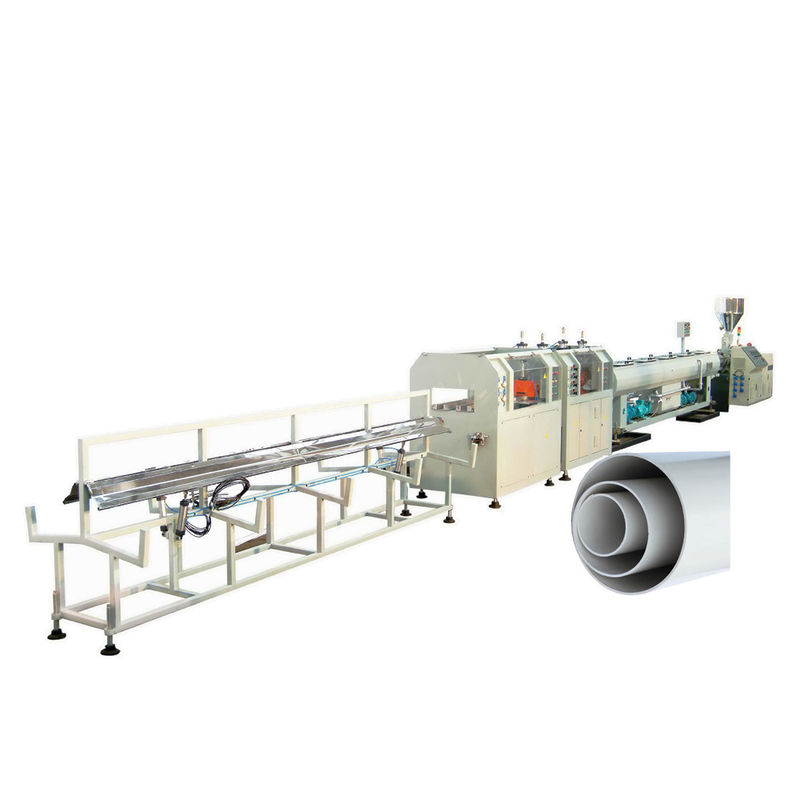

Plastic Pipe Extrusion Line / Pvc Pipe Extrusion Line Production line consists

  • Conic twin screw extruder HYZS65/132 with loader
  • Die head
  • Vacuum tank
  • Printer
  • Haul off unit
  • Cutter
  • Stacker



Plastic Pipe Extrusion Line / Pvc Pipe Extrusion Line HYPET advantages of 20-63mm PVC double pipe extrusion line

  • Extruder ---with Hymax gear box and high output in good quaolity
  • Die head ---pipe in three pressure, strong and bright
  • Electrical cabinet ---PLC controller auto type in good soft ware .
  • Energy saving --- 10-20% energy saving
  • Cutter--- Dustless type in new technology



Plastic Pipe Extrusion Line / Pvc Pipe Extrusion Line Condition of use

1. Plastic Pipe Extrusion Line / Pvc Pipe Extrusion Line Technical features of whole line

SN Specification Description Remark
1 Suitable material PVC powder
2 Pipe diameter range Four pipe Ø20-Ø63mm. (1/2”-1 1/4’)
3 Production speed 1.2~12 m/min
4 Max. output 500kg/h
5 Test and accept Based on HYPET standard formula.
6 Center height 1,000mm
7 Whole line size (L x W x H) 18,000 x 1,200 x 2,200mm
8 Operation direction From right to left
9 Color of equipment HYPET white color
10 Control of whole production Refer to the “configuration list”.
Note Extrusion capacity will be changed according the processing material and working conditions



2. Plastic Pipe Extrusion Line / Pvc Pipe Extrusion Line Circumstances condition

SN Condition Specification Description
1

Natural

circumstance

condition

Working place Indoor use
Power source No dangerous area
Humidity 55%~85% no condensation
Temperature 0~40 ℃
2

Electricity

source

Installation capacity 150 kW
Actual power consumption 50 kW
Power supply 3P+N+PE
Voltage/Frequency 380V/50Hz other can be option
3 Cooling water Temperature ≤15 ℃
Water pressure ≥0.3MPa
Flow ~15 m3/h
4 Air condition Compressor air pressure ≥0.6MPa
Flow ~0.9 m3/min



Plastic Pipe Extrusion Line / Pvc Pipe Extrusion Line

Plastic Pipe Extrusion Line / Pvc Pipe Extrusion Line 0



Plastic Pipe Extrusion Line / Pvc Pipe Extrusion Line Terms & conditions



1. Plastic Pipe Extrusion Line / Pvc Pipe Extrusion Line Time of delivery

 When the contract becomes valid, the machine should be delivered within 50 days since receipt of the advance payment. And the equipment will be in normal operation after debugging within two weeks after arrival.



2. Plastic Pipe Extrusion Line / Pvc Pipe Extrusion Line Debugging charge

The buyer pays for the plane ticket of round-trip abroad and food and accommodation of buyer’s country during debugging. And the wage of technicians should be paid by the customer (100USD/day).



3. Plastic Pipe Extrusion Line / Pvc Pipe Extrusion Line Guarantee clause

1) Guarantee is 1 year (excluding human factor and wearing parts).

2) Under proper working conditions, 12 months from the date of completion of commissioning at the buyer's site, and should be at the latest within 14 months from the issuing date of Bill of Lading.
