Product Details:
|
| Key Word: | Pipe Extrusion Plant | Voltage: | 380V Or Customized |
|---|---|---|---|
| Automatic Grade: | Automatic | Plastic Processed: | PVC Composite Powder |
| Application: | Pipe Making | Extruder: | ZS65/132 |
| Warranty: | 12 Months | Inverter: | ABB |
| High Light: | OD75mm plastic Pipe Making Machines,140kg/HPipe Extrusion Plant,OD160mm Plastic Pipe Making Machines |
||

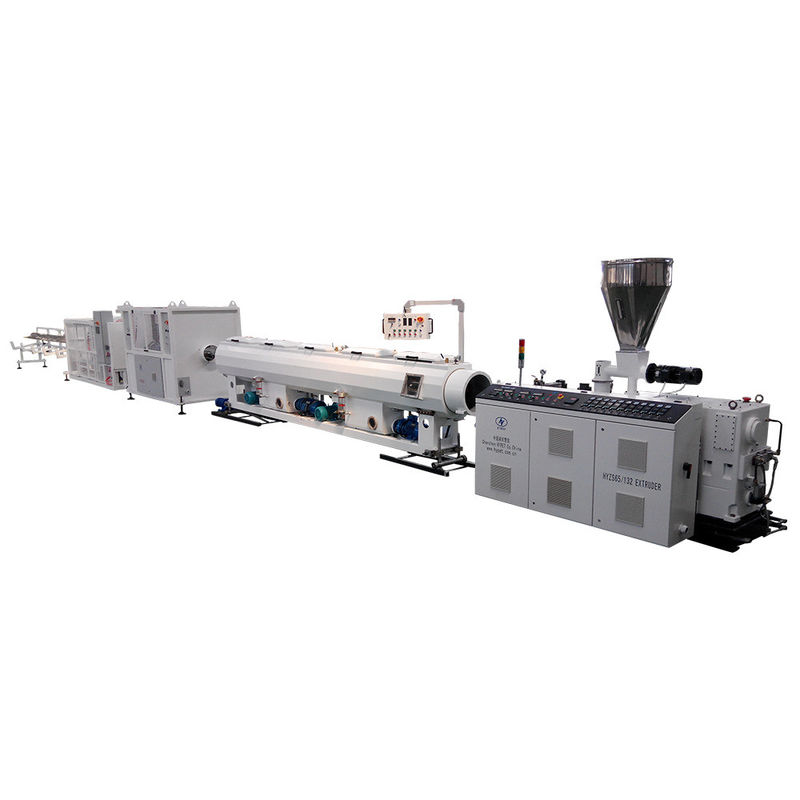

Pipe Extrusion Plant For Making PVC Pipe In Different Sizes 75- 160mm
Pipe Extrusion Plant Whole production line composition:
Pipe Extrusion Plant Auxiliary machine for option:
Pipe Extrusion Plant HYPET unique advantages Except the same features with other supplier.
| SN | Parts | Description |
| 1 | New technology gear box | High torque gear box |
| 2 | Screw and barrel | Bi-metal material ensure you longer working life, ensuring 24 hours. |
| 3 | Energy saving heater | Heater on the barrel is energy saving type by 15% |
| 4 | HYPET PLC control system | With operation easy, management full, energy saving and counting, and intelligent control system. |
| 5 | Pipe brighten device | To make the pipe shining and smoothing |
Pipe Extrusion Plant Configuration list
Note: This table as attached file, which is for selection of the configuration on the whole line
| SN | Items | Choosing configuration |
| 1 | Production control system | PLC control system |
| 2 | Cooling system of the main control electric cabinet | Fan cooling electric cabinet |
| 3 | Main motor | AC motor with famous inverter |
| 4 | Core thermoregulation control | Internal closed loop heat balancing system. |
| 5 | Material of screw & barrel type | Nitro Alloy with bi-metal in two parts |
| 6 | Quantitative feeding system’s mixing function | Twin screw with mixing device option |
| 7 | Pipe calibrator sleeve | Copper calibrator sleeve |
| 8 | Cutter | Dustless type in new technology |
Pipe Extrusion Plant Condition of use
1. Pipe Extrusion Plant Technical features of whole line
| SN | Specification | Description | Remark |
| 1 | Suitable material | PVC powder | |
| 2 | Pipe diameter range | Ø75-Ø160mm | |
| 3 | Production speed | 1.5 ~ 8 m/min | |
| 4 | Max. output | 140kg/h | |
| 5 | Center height | 1,000mm | |
| 6 | Operation direction | From right to left | |
| 7 | Color of equipment | HYPET white color | |
| 8 | Control of whole production | Refer to the “configuration list”. | |
| Note | Extrusion capacity will be changed according the processing material and working conditions | ||
Pipe Extrusion Plant Photo:
Pipe Extrusion Plant Terms & conditions
1. Pipe Extrusion Plant Time of delivery
1) When the contract becomes valid, the machine should be delivered within 50 days since receipt of the advance payment. And the equipment will be in normal operation after debugging within two weeks after arrival.
2) During production, provided that the Buyer requests to modify the specification of the order, the Buyer shall notify the Seller of this modification in written form. Upon receipt of the notice, the Seller will quote to the Buyer the cost of this modification and notify the Buyer of any possible delay due to this modification.
2. Pipe Extrusion Plant Debugging charge
The buyer pays for the plane ticket of round-trip abroad and food and accommodation of buyer’s country during debugging. And the wage of technicians should be paid by the customer (80USD/day).
3. Pipe Extrusion Plant Guarantee clause
1) Guarantee is 1 year (excluding human factor and wearing parts).
2) Under proper working conditions, 12 months from the date of completion of commissioning at the buyer's site, and should be at the latest within 14 months from the issuing date of Bill of Lading.
