Product Details:
|
| Key Word: | Plastic Pipe Extruding Machine / PVC Pipe Extrusion Equipment | Extruder: | 65/132 Conic Twin Screw Type |
|---|---|---|---|
| Plastic Processed: | PVC Composite Powder | Application: | Pipe Production |
| Inverter: | ABB Brand | Contactor: | Siemens |
| High Light: | OD110mm plastic pipe extruding machine,Pipe Extrusion Equipment 350kg/H,OD110mm Pipe Extrusion Equipment |
||

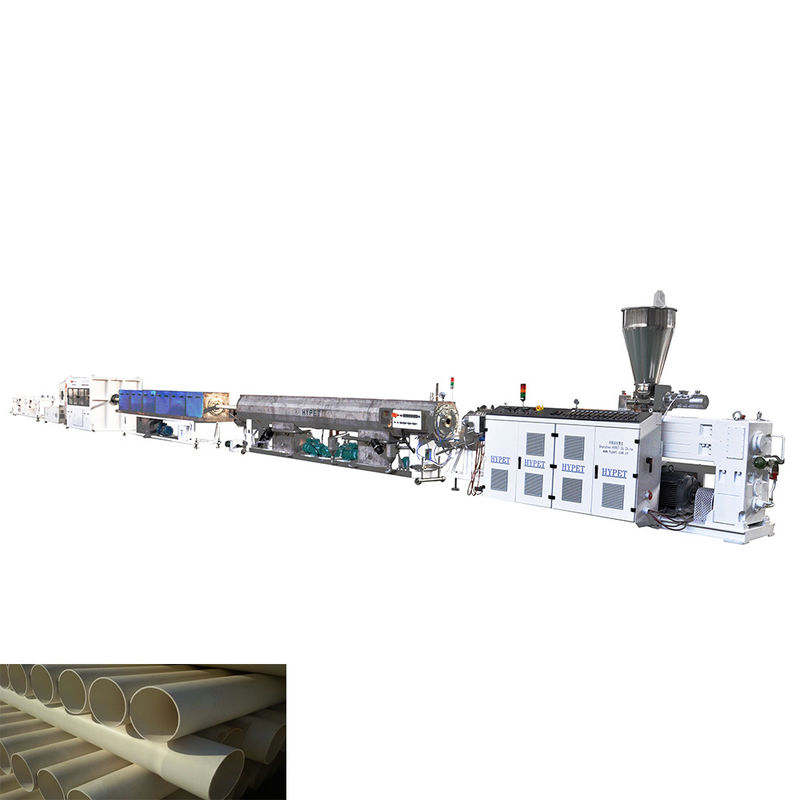

Plastic Pipe Extruding Machine / PVC Pipe Extrusion Equipment For 110 - 250mm
Plastic Pipe Extruding Machine / PVC Pipe Extrusion Equipment Whole production line composition:
Plastic Pipe Extruding Machine / PVC Pipe Extrusion Equipment Configuration list
Note: This table as attached file, which is for selection of the configuration on the whole line
| SN | Items | Choosing configuration |
| 1 | Production control system | PLC control system |
| 2 | Cooling system of the main control electric cabinet | Fan cooling electric cabinet |
| 3 | Main motor | AC motor with famous inverter |
| 4 | Pressure sensor | HYPET individual temperature and pressure control in two parts |
| 5 | Core thermoregulation control | Internal closed loop heat balancing system. |
| 6 | Material of screw & barrel type | Nitro Alloy with bi-metal in two parts |
| 7 | Quantitative feeding system’s mixing function | Twin screw with mixing device option |
| 8 | Pipe calibrator sleeve | Copper calibrator sleeve |
| 9 | Cutter | Dustless type in new technology |
Plastic Pipe Extruding Machine / PVC Pipe Extrusion Equipment Condition of use
1. Plastic Pipe Extruding Machine / PVC Pipe Extrusion Equipment Technical features of whole line
| SN | Specification | Description | Remark |
| 1 | Suitable material | PVC powder | |
| 2 | Pipe diameter range | Ø110-Ø250mm | |
| 3 | Production speed | 0.5 ~ 5 m/min | |
| 4 | Max. output | 350kg/h | |
| 5 | Test and accept | Based on HYPET standard formula. | |
| 6 | Center height | 1,000mm | |
| 7 | Operation direction | From right to left | |
| 8 | Control of whole production | Refer to the “configuration list”. | |
| Note | Extrusion capacity will be changed according the processing material and working conditions | ||
2. Plastic Pipe Extruding Machine / PVC Pipe Extrusion Equipment Circumstances condition
| SN | Condition | Specification | Description |
| 1 | Natural circumstance condition | Working place | Indoor use |
| Power source | No dangerous area | ||
| Humidity | 55%~85% no condensation | ||
| Temperature | 0~40 ℃ | ||
| 2 | Electricity source | Installation capacity | 100 kW |
| Actual power consumption | 37 kW | ||
| Power supply | 3P+N+PE | ||
| Voltage/Frequency | 380V/50Hz, others can be optional | ||
| 3 | Cooling water | Temperature | ≤15 ℃ |
| Water pressure | ≥0.3MPa | ||
| Flow | ~15 m3/h | ||
| 4 | Air condition | Compressor air pressure | ≥0.6MPa |
| Flow | ~0.9 m3/min |
Plastic Pipe Extruding Machine / PVC Pipe Extrusion Equipment
Plastic Pipe Extruding Machine / PVC Pipe Extrusion Equipment Terms & conditions
1. Plastic Pipe Extruding Machine / PVC Pipe Extrusion Equipment Installation and debugging
When the machine arrives at site, the customer should install it on the appropriate position according to the specifications provided by the supplier; and then the supplier should send its engineers to the site if requirement approved,in order to instruct the customer about trial run and debugging. The customer should provide necessary conditions for trial run and provide materials for trial run, and should decide the processing conditions in trial run with consideration of the supplier's opinions.
1) The price covers the pre-commissioning of the machinery before shipment at Seller's site. The Seller is obliged to test the performance of machinery.
2) The Buyer is obliged to provide suitable space, tools and manpower for the commissioning of the order.
2. Plastic Pipe Extruding Machine / PVC Pipe Extrusion Equipment Time of delivery
1) When the contract becomes valid, the machine should be delivered within 50 days since receipt of the advance payment. And the equipment will be in normal operation after debugging within two weeks after arrival.
2) During production, provided that the Buyer requests to modify the specification of the order, the Buyer shall notify the Seller of this modification in written form. Upon receipt of the notice, the Seller will quote to the Buyer the cost of this modification and notify the Buyer of any possible delay due to this modification.
3. Plastic Pipe Extruding Machine / PVC Pipe Extrusion Equipment Guarantee clause
Guarantee is 1 year (excluding human factor and wearing parts).
