Product Details:
|
| Item: | PVC Pipe Production Line 110 - 250mm | Voltage: | 380V 50HZ 3Phase(Customized) |
|---|---|---|---|
| Extruder: | 80/156ZS | Plastic Processed: | PVC |
| Pipe Size: | 110-250 | Warranty: | 12 Months |
| High Light: | Dia250mm PVC Pipe Extrusion Line,500kg/H PVC Pipe Extrusion Line,500kg/H pvc pipe extrusion machine |
||

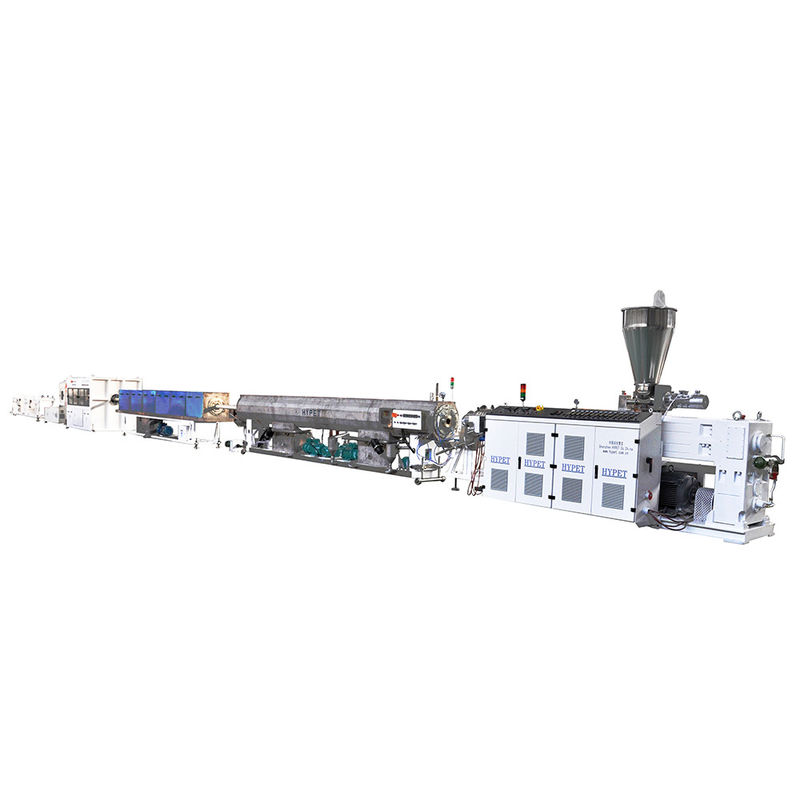

PVC Pipe Production Line With 80/156 Extruder Output 500kg/H 110 - 250mm
PVC Pipe Production Line Whole production line composition:
PVC Pipe Production Line Condition of use
1. PVC Pipe Production Line Technical features of whole line
| SN | Specification | PVC Pipe Production Line Description |
| 1 | Suitable material | PVC powder |
| 2 | Pipe diameter range | Ø110-Ø250mm |
| 3 | Production speed | 0.8 ~ 8 m/min |
| 4 | Max. output | 500kg/h |
| 5 | Center height | 1,000mm |
| 6 | Whole line size (L x W x H) | 27,000 x 1,200 x 2,450mm |
| 7 | Operation direction | From right to left |
| 8 | Color of equipment | HYPET white color |
| 9 | Control of whole production | Refer to the “configuration list”. |
| Note | Extrusion capacity will be changed according the processing material and working conditions | |
2. PVC Pipe Production Line Circumstances condition
| SN | Condition | Specification | Description |
| 1 |
Natural circumstance condition |
Working place | Indoor use |
| Humidity | 55%~85% no condensation | ||
| Temperature | 0~40 ℃ | ||
| 2 |
Electricity source |
Installation capacity | 200 kW |
| Actual power consumption | 80 kW | ||
| Power supply | 3P+N+PE | ||
| Voltage/Frequency | 380V/50Hz, others can be optional | ||
| 3 | Cooling water | Temperature | ≤15 ℃ |
| Water pressure | ≥0.3MPa | ||
| 4 | Air condition | Compressor air pressure | ≥0.6MPa |
| Flow | ~0.9 m3/min |
PVC Pipe Production Line
PVC Pipe Production Line Terms & conditions
1. PVC Pipe Production Line Training and services
1) Instruction of field installation
2) Equipment field debugging and trial run if required by the buyer according to the rule.
2. PVC Pipe Production Line Guarantee clause
1) Guarantee is 1 year (excluding human factor and wearing parts).
2) Under proper working conditions, 12 months from the date of completion of commissioning at the buyer's site, and should be at the latest within 14 months from the issuing date of Bill of Lading.
