Product Details:
|
| Key Word: | Upvc Pipe Making Machine 200-400mm | Automatic Grade: | Automatic |
|---|---|---|---|
| Condition: | New | Plastic Processed: | PVC |
| Application: | Pipe | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Video Technical Support,Online Support |
| Warranty: | 15 Months | Inverter: | ABB,Fuji |
| Contactor: | Siemens,Schnerder | ||
| High Light: | OD400mm CPVC Pipe Making Machine,OD400mm upvc pipe making machine,700kg/h Cpvc Pipe Making Machine |
||

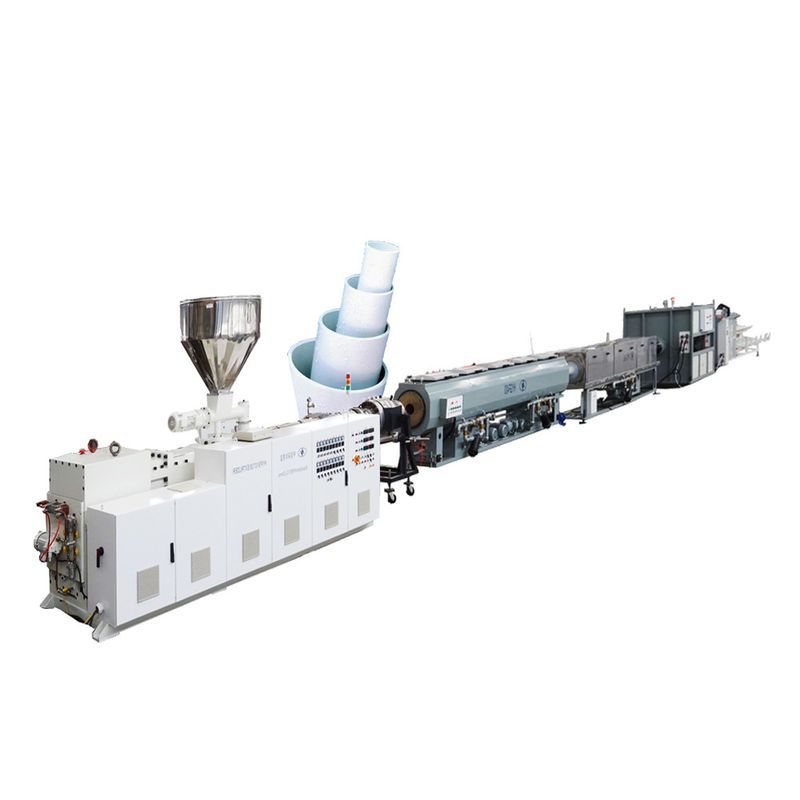

Upvc Pipe Making Machine With Parallel Twin Screw Extruder for pipe size 200-400mm
Upvc Pipe Making Machine Whole production line composition:
Upvc Pipe Making Machine Auxiliary machine for option:
Upvc Pipe Making Machine Configuration list
Note: This table as attached file, which is for selection of the configuration on the whole line
| SN | Items | Choosing configuration | Remark |
| 1 | Production control system | PLC control system | Digital control system |
| 2 | Cooling system of the main control electric cabinet | Fan cooling electric cabinet | |
| 3 | Main motor | AC motor with famous inverter | |
| 4 | Pressure sensor | HYPET individual temperature and pressure control in two parts | |
| 5 | Core thermoregulation control | Internal closed loop heat balancing system. | |
| 6 | Material of screw & barrel type | Nitro Alloy with bi-metal in two parts | |
| 7 | Quantitative feeding system’s mixing function | Twin screw with mixing device option | |
| 8 | Pipe calibrator sleeve | Copper calibrator sleeve | |
| 9 | Cutter | Dustless type in new technology |
Upvc Pipe Making Machine Technical features of whole line
| SN | Specification | Description | Remark |
| 1 | Suitable material | PVC powder | |
| 2 | Pipe diameter range | Ø200-Ø400mm | |
| 3 | Production speed | 0.4 ~ 4 m/min | |
| 4 | Max. output | 600-700kg/h | |
| 5 | Test and accept | Based on HYPET standard formula. | |
| 6 | Center height | 1,000mm | |
| 7 | Whole line size (L x W x H) | 28,000 x 1,200 x 2,450mm | |
| 8 | Operation direction | From right to left | |
| 9 | Color of equipment | HYPET white color | |
| 10 | Control of whole production | Refer to the “configuration list”. | |
| Note | Extrusion capacity will be changed according the processing material and working conditions | ||
Upvc Pipe Making Machine
Upvc Pipe Making Machine Terms & conditions
1. Upvc Pipe Making Machine Installation and debugging
When the machine arrives at site, the customer should install it on the appropriate position according to the specifications provided by the supplier; and then the supplier should send its engineers to the site if requirement approved,in order to instruct the customer about trial run and debugging. The customer should provide necessary conditions for trial run and provide materials for trial run, and should decide the processing conditions in trial run with consideration of the supplier's opinions.
1) The price covers the pre-commissioning of the machinery before shipment at Seller's site. The Seller is obliged to test the performance of machinery.
2) The Buyer is obliged to provide suitable space, tools and manpower for the commissioning of the order.
3) This Price does not included commission and installation in buyer’s factory.
2. Upvc Pipe Making Machine Terms of payment
1) T/T and L/C (irrevocable, at sight) both are acceptable.
2) 30% of the total contract value should be paid in advance, balance 70% of the total value is to be paid before shipping at the Seller’s factory.
