Product Details:
|
| Key Word: | PVC Pipe Extrusion Machine 250mm - 450mm | Automatic Grade: | Automatic |
|---|---|---|---|
| Plastic Processed: | PVC Composite Powder | Application: | Pipe Production |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Video Technical Support,Online Support | Inverter: | ABB |
| High Light: | Dia 450mm Pvc Pipe Extrusion Line,Dia 250mm Pvc Pipe Extrusion Line,Dia 250mm pvc pipe production line |
||

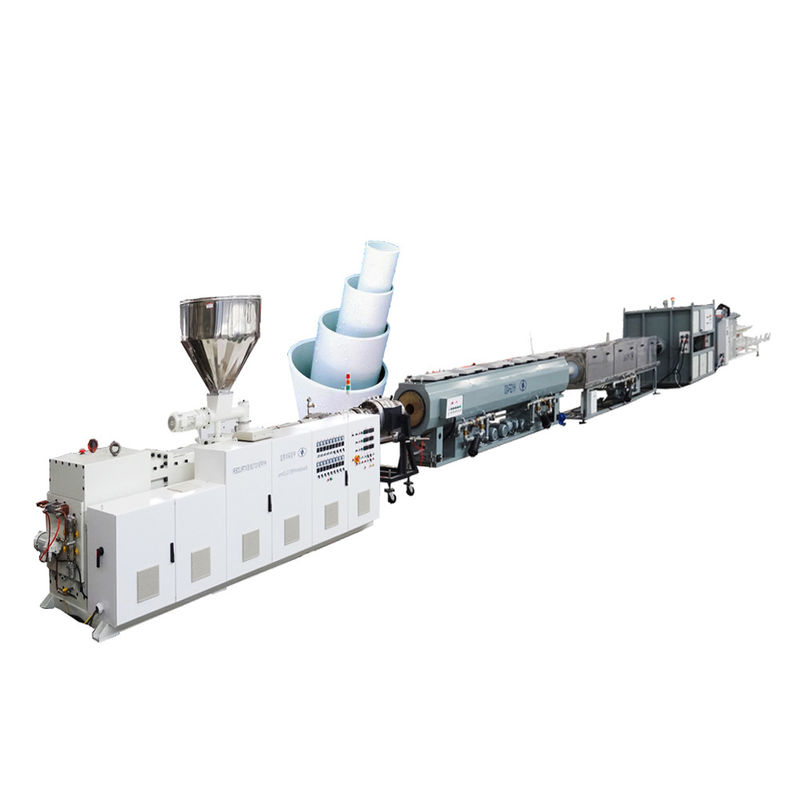

PVC Pipe Extrusion Machine With HYZS80/173 Conic Twin Screw Extruder 250mm - 450mm
PVC Pipe Extrusion Machine Whole production line composition:
PVC Pipe Extrusion Machine Auxiliary machine for option:
PVC Pipe Extrusion Machine HYPET unique advantages Except the same features with other supplier.
| SN | Parts | PVC Pipe Extrusion Machine Description |
| 1 | High output | Ensure you the highest output as compared with other supplier. |
| 2 | New technology gear box | High torque gear box |
| 3 | Screw and barrel | Bi-metal material ensure you longer working life, ensuring 24 hours. |
| 4 | Energy saving heater | Heater on the barrel is energy saving type by 15% |
| 5 | Electric elements and box | In detachable, with world famous brand such ABB, Siemens, Schneider, Delta, well organized. |
| 6 | HYPET PLC control system | With operation easy, management full, energy saving and counting, and intelligent control system. |
| 7 | Pipe brighten device | To make the pipe shining and smoothing |
| 8 | Vacuum tank stainless steel 304 | Water level and temperature controlled automatically |
| 9 | Dustless cutter | In new device for cutting pipe to save material. |
PVC Pipe Extrusion Machine Configuration list
Note: This table as attached file, which is for selection of the configuration on the whole line
| SN | Items | Choosing configuration |
| 1 | Production control system | PLC control system |
| 2 | Cooling system of the main control electric cabinet | Fan cooling electric cabinet |
| 3 | Pressure sensor | HYPET individual temperature and pressure control in two parts |
| 5 | Core thermoregulation control | Internal closed loop heat balancing system. |
| 6 | Material of screw & barrel type | Nitro Alloy with bi-metal in two parts |
| 7 | Quantitative feeding system’s mixing function | Twin screw with mixing device option |
| 8 | Pipe calibrator sleeve | Copper calibrator sleeve |
| 9 | Cutter | Dustless type in new technology |
PVC Pipe Extrusion Machine Circumstances condition
| SN | Condition | Specification | Description |
| 1 |
Natural circumstance condition |
Working place | Indoor use |
| Power source | No dangerous area | ||
| Humidity | 55%~85% no condensation | ||
| Temperature | 0~40 ℃ | ||
| 2 |
Electricity source |
Installation capacity | 200 kW |
| Actual power consumption | 100 kW | ||
| Power supply | 3P+N+PE | ||
| Voltage/Frequency | 380V/50Hz, others can be optional | ||
| 3 | Cooling water | Temperature | ≤15 ℃ |
| Water pressure | ≥0.3MPa | ||
| Flow | ~15 m3/h | ||
| 4 | Air condition | Compressor air pressure | ≥0.6MPa |
| Flow | ~0.9 m3/min |
PVC Pipe Extrusion Machine
PVC Pipe Extrusion Machine Guarantee clause
1) Guarantee is 1 year (excluding human factor and wearing parts).
2) Under proper working conditions, 12 months from the date of completion of commissioning at the buyer's site, and should be at the latest within 14 months from the issuing date of Bill of Lading.
