Product Details:
|
| Key Word: | Rigid PVC Pipe Making Machine / Upvc Pipe Extrusion Machine 315-630 | Voltage: | 380V 50HZ 3Phase(Customized) |
|---|---|---|---|
| Automatic Grade: | Automatic | Condition: | New |
| Plastic Processed: | PVC Pipe | Warranty: | 1.5 Year |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Online Support | ||
| High Light: | 630mm Rigid PVC Pipe Making Machine,UPVC Pipe Extrusion Machine,630mm Pipe Extrusion Machine |
||
Rigid PVC Pipe Making Machine / Upvc Pipe Extrusion Machine 630mm With ZS95 Extruder

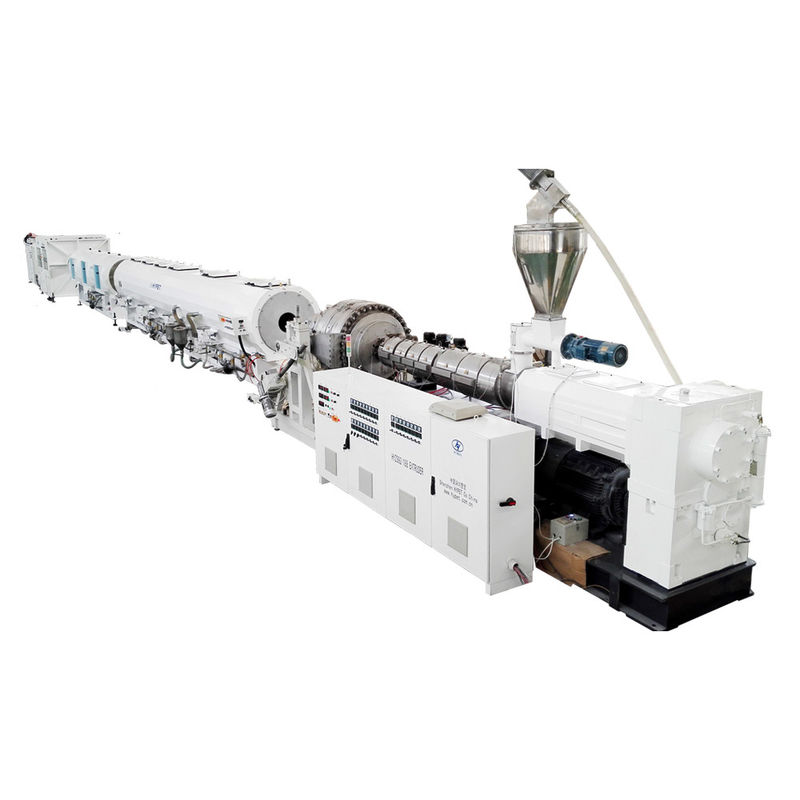

Rigid PVC Pipe Making Machine / Upvc Pipe Extrusion Machine Whole production line composition:
Auto loader - Extruder HYZS95/198 - Die head - Vacuum tank - Spray cooling tank - Printer - Haul off unit - Cutter - Stacker
Auxiliary machine for option:
Belling machine;
High speed mixer;
Crusher;
Pulverizer;
Chiller;
Air compressor.
Rigid PVC Pipe Making Machine / Upvc Pipe Extrusion Machine HYPET unique advantages Except the same features with other supplier.
| SN | Parts | Rigid PVC Pipe Making Machine / Upvc Pipe Extrusion Machine Description |
| 1 | High output | Ensure you the highest output as compared with other supplier. |
| 2 |
Integrated vertical type gearbox |
High transmission efficiency |
| 3 | Screw and barrel | Bi-metal material ensure you longer working life, ensuring 24 hours. |
| 4 | Energy saving heater | Heater on the barrel is energy saving type by 15% |
| 5 | Electric elements and box | In detachable, with world famous brand such ABB, Siemens, Schneider, Delta, well organized. |
| 6 |
Siemens PLC Control System |
Intelligent & centralized control Automatic preheating; Diagnose function; Remote monitoring; Intelligent alarm system; Formula management. |
| 7 | Pipe brighten device | To make the pipe shining and smoothing |

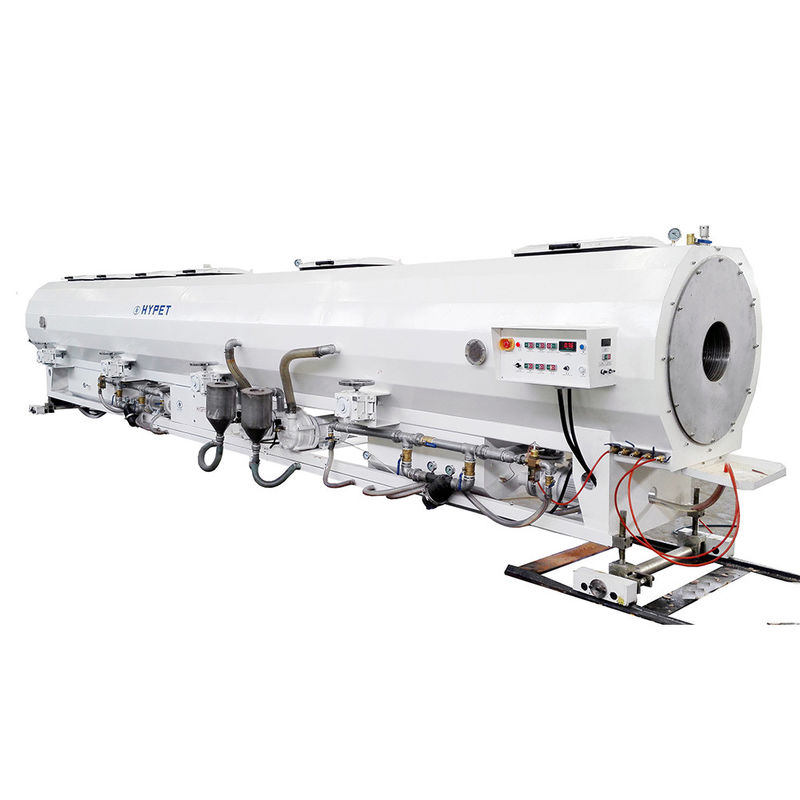

| 8 | Vacuum tank stainless steel 304 | Water level and temperature controlled automatically |
| 9 | Dustless cutter | In new device for cutting pipe to save material. |
Rigid PVC Pipe Making Machine / Upvc Pipe Extrusion Machine Configuration list
Note: This table as attached file, which is for selection of the configuration on the whole line
| SN | Items | Choosing configuration | Remark |
| 1 | Production control system | PLC control system | Digital control system |
| 2 | Cooling system of the main control electric cabinet | Fan cooling electric cabinet | |
| 3 | Main motor | AC motor with famous inverter | |
| 4 | Pressure sensor | HYPET individual temperature and pressure control in two parts | |
| 5 | Core thermoregulation control | Internal closed loop heat balancing system. | |
| 6 | Material of screw & barrel type | Nitro Alloy with bi-metal in two parts | |
| 7 |
Twin-screw Feeder |
Prevent from material bridge | |
| 8 | Pipe calibrator sleeve | Copper calibrator sleeve | |
| 9 | Cutter | Dustless type in new technology |
Rigid PVC Pipe Making Machine / Upvc Pipe Extrusion Machine Condition of use
1. Technical features of whole line
| SN | Specification | Description | Remark |
| 1 | Suitable material | PVC powder | |
| 2 | Pipe diameter range | Ø315-Ø630mm | |
| 3 | Production speed | 0.15 ~ 1.5 m/min | |
| 4 | Max. output | 1000kg/h | |
| 5 | Test and accept | Based on HYPET standard formula. | |
| 6 | Center height | 1,000mm | |
| 7 | Whole line size (L x W x H) | 27,000 x 1,200 x 2,450mm | |
| 8 | Operation direction | From right to left | |
| 9 | Color of equipment | HYPET white color | |
| 10 | Control of whole production | Refer to the “configuration list”. | |
| Note | Extrusion capacity will be changed according the processing material and working conditions | ||
2. Rigid PVC Pipe Making Machine / Upvc Pipe Extrusion MachineCircumstances condition
| SN | Condition | Specification | Description |
| 1 |
Natural circumstance condition |
Working place | Indoor use |
| Power source | No dangerous area | ||
| Humidity | 55%~85% no condensation | ||
| Temperature | 0~40 ℃ | ||
| 2 |
Electricity source |
Installation capacity | 300kW |
| Actual power consumption | 200kW | ||
| Power supply | 3P+N+PE | ||
| Voltage/Frequency | 380V/50Hz, others can be optional | ||
| 3 | Cooling water | Temperature | ≤15 ℃ |
| Water pressure | ≥0.3MPa | ||
| Flow | ~15 m3/h | ||
| 4 | Air condition | Compressor air pressure | ≥0.6MPa |
| Flow | ~0.9 m3/min |
Rigid PVC Pipe Making Machine / Upvc Pipe Extrusion Machine
Rigid PVC Pipe Making Machine / Upvc Pipe Extrusion Machine Related production line
|
Model
|
Screw Diameter(mm)
|
Pipe Range(mm)
|
Capacity(kg/h)
|
Main motor power
|
Total Power
|
Line Length(m)
|
|
U-PVC63
|
51/105
|
16-63
|
80-120
|
18.5
|
50
|
22
|
|
U-PVC160
|
65/132
|
75-160
|
200-250
|
37
|
100
|
22
|
|
U-PVC250
|
65/132
|
110-250
|
200-250
|
37
|
120
|
30
|
|
U-PVC315
|
80/156
|
160-315
|
300-400
|
55
|
200
|
30
|
|
U-PVC450
|
80/156
|
200-450
|
300-400
|
55
|
220
|
36
|
|
U-PVC630
|
92/188
|
315-630
|
400-800
|
90
|
350
|
42
|
Rigid PVC Pipe Making Machine / Upvc Pipe Extrusion Machine Terms & conditions
1. Rigid PVC Pipe Making Machine / Upvc Pipe Extrusion Machine Training and services
1) Instruction of field installation
2) Equipment field debugging and trial run if required by the buyer according to the rule.
3) Training on field operation and maintenance for customer's personnel.
4) Provide technical consultation service on long-term basis.
2. Rigid PVC Pipe Making Machine / Upvc Pipe Extrusion MachineInstallation and debugging
1) The price covers the pre-commissioning of the machinery before shipment at Seller's site. The Seller is obliged to test the performance of machinery.
2) The Buyer is obliged to provide suitable space, tools and manpower for the commissioning of the order.
3) This Price does not included commission and installation in buyer’s factory.
3. Rigid PVC Pipe Making Machine / Upvc Pipe Extrusion MachinePricing
1) The above mentioned quotation is valid within 30 days counted from the issue date of quotation.
2) The price and machinery configuration should be updated and confirmed by the Seller in the case that the quotation has been beyond the validity period.
3) The above mentioned quotation is based on Ex works. Sea transportation and wooden case packing is excluded.
4) The price does not cover the cost of testing material. The testing material will be supplied by the Buyer. Or the Seller will purchase the material as requested by the Buyer at Buyer's cost.
5) The price does not include the cost of commissioning at Buyer's site.
6) The Seller reserves the right to modify the specification and design of the machine in order to enhance the product quality.
4. Rigid PVC Pipe Making Machine / Upvc Pipe Extrusion MachineTerms of payment
1) T/T and L/C (irrevocable, at sight) both are acceptable.
2) 30% of the total contract value should be paid in advance, balance 70% of the total value is to be paid before shipping at the Seller’s factory.
5. Rigid PVC Pipe Making Machine / Upvc Pipe Extrusion MachineTime of delivery
1) When the contract becomes valid, the machine should be delivered within 60 days since receipt of the advance payment. And the equipment will be in normal operation after debugging within two weeks after arrival.
2) During production, provided that the Buyer requests to modify the specification of the order, the Buyer shall notify the Seller of this modification in written form. Upon receipt of the notice, the Seller will quote to the Buyer the cost of this modification and notify the Buyer of any possible delay due to this modification.
6. Rigid PVC Pipe Making Machine / Upvc Pipe Extrusion MachineGuarantee clause
1) Guarantee is 1 year (excluding human factor and wearing parts).
2) Under proper working conditions, 12 months from the date of completion of commissioning at the buyer's site, and should be at the latest within 14 months from the issuing date of Bill of Lading.
