Name: Big Output Double Screw Extruder Machine For Plastic Processing 160kw PS130/28 Output 1100kg/H
Brand: Shenzhen HYPET Co., Ltd.
SKU: Big Output Double Screw Extruder Machine HYPS130/28
Price: 79,250.00 USD
Availability: InStock

Home > products > Plastic Extruder Machine >

Big Output Double Screw Extruder Machine For Plastic Processing 160kw PS130/28 Output 1100kg/H

1100kg/H Double Screw Extruder Machine

Double Screw Extruder Machine 160kw

1100kg/H plastic profile extrusion machine

Place of Origin:

China

Brand Name:

SHENZHEN HYPET

Certification:

CE, ISO

Model Number:

Big Output Double Screw Extruder Machine HYPS130/28

Request A Quote

Product Details

Key Words:

Big Output Double Screw Extruder Machine HYPS110/28

LD:

28:1

PLC:

Siemesn

Motor:

Siemens China

Gear Box:

Vertical Style

Output:

1100kg/h

Cooling:

Fans

Main Motor:

160kw

Highlight:

1100kg/H Double Screw Extruder Machine

Double Screw Extruder Machine 160kw

1100kg/H plastic profile extrusion machine

Payment & Shipping Terms

Minimum Order Quantity

Big Output Double Screw Extruder Machine 1 set

Price

USD75000/set - USD83500/set

Packaging Details

Big Output Double Screw Extruder Machine LCL woden case, FCL with film and rope fixing

Delivery Time

Big Output Double Screw Extruder Machine 30 - 50 work days

Payment Terms

L/C, T/T, D/P, Western Union

Supply Ability

Big Output Double Screw Extruder Machine 150sets /year

high output speed high efficent Single Screw Equipment Production Line Extruders SJ45/30 22kw 70kg/h

Get Best Price

Video

Calcium Carbonate Masterbatch PE LDPE PP HDPE Single screw Plastic Extruder Machine SJ150/30 160kw with output 450kg/h

Get Best Price

Video

New Model SJ120/30 90kw extrusding Tpu Color Masterbatch pellets profile sealer soft PVC selaer strip Single screw

Get Best Price

Video

PE PS PP ABS TPU EVA PVC Various chemical material processing machine special single screw extruder SJ90/30 75kw 220kg/h

Get Best Price

+8615002772815

ryan@hypet.com.cn

+86-755-25851030

Contact Now

Product Description

Big Output Double Screw Extruder Machine For Plastic Processing 160kw PS130/28 Output 1100kg/H

Big Output Double Screw Extruder Machine HYPET advantages of parallel twin screw extruder

Barrel and screw Nitro Alloy with bi-metal type for longer working life.
The harden and ground gear box is made with German technology.
Twin output shaft Helical Gear Box. Gears are hardened and ground. Both output shafts are integral with high capacity thrust bearings to absorb axial thrust generated during the extrusion process
Gear box housing is made of high quality Ductile iron QT-500.
Vacuum degassing system along with dust collector having bypass system & Vacuum pump.
Extruder mounted on rigid structural steel frame.
Quantitative feeding system with twin screw structure to avoid stagnant material.
Plug & Socket for Die head heating zones, Connecting head & Melt temperature indicator.
Drive control panel, equipped with panel water cooler, placed besides heating control panel with Independent Isolator for essential power supply.
Other eclectic and pneumatic components are made in world famous brand such as from Japan, Siemens from Germany etc.

Big Output Double Screw Extruder Machine Condition of use
1. Big Output Double Screw Extruder Machine Technical features of whole line

SN	Specification	Description	Remark
1	Suitable material	PVC powder
2	Max. output	1000~1100 kg/h for PVC pipe
3	Test and accept	Based on HYPET standard formula.
4	Center height	1,100mm
5	Dimension	6,200 x 1,200 x 2,450mm
6	Operation direction	From right to left
7	Color of equipment	HYPET white color
8	Control of whole production	Refer to the “configuration list”.
Note	Extrusion capacity will be changed according the processing material and working conditions

2. Big Output Double Screw Extruder Machine Circumstances condition

Condition	Specification	Description
Natural circumstance condition	Working place	Indoor use
	Power source	No dangerous area
	Humidity	55-85% no condensation
	Temperature	0~40 ℃
Cooling water	Temperature	≤18 ℃
	Water pressure	≥0.3MPa
	Flow	~5 m³/h
Air condition	Compressor air pressure	≥0.6MPa
Air condition	Flow	~0.9 m³/min

Big Output Double Screw Extruder Machine Main specification:

SN	Parts name	Specification	Description
1	Extruder	Extruder model	HYPS-130/28 Parallel twin screw
		Output	1000~1100kg/h
		Center height	1,100mm
		Weight	6,200kg
2	Screw	Diameter	Ø130mm
		Material	38CrMoAlA + special alloy
		Finish	Nitrogen-filled (0.50~0.70mm depth) and polish
		Rotate speed	45 r/min
		Core of the screw	Auto control for temperature
3	Barrel	Material	38CrMoAlA with bi-metal type
		Inside finish	Nitrogen-filled (0.50~0.70mm depth) and rubbing
		Heating control area	7 areas
		Heating way	Copper cooling fins with ceramic heater
		Heating power	50 kW
		Cooling system	Low-noisy barrel cooling fan
		Cooling power	0.7 kW x 7 sets
4	Gear box	Housing material	Ductile iron QT-500
		Gear material	20CrMnTi
		Gear surface	Hardened and ground in high precision
		Axis material	40Cr
5	Dosing feeder	Supplying material motor	2.2 kW
		Speed range	1-50 RPM
		Inverter	ABB
6	Vacuum degas with selector	Vacuum degree	-0.004Mpa
6	Vacuum degas with selector	Motor power	2.2 kW
7	Driving motor	AC motor power	90 kW
7	Driving motor	AC inverter controller	ABB
8	Electrical Control system	Detachable control panel	PLC control system
		Extra temperature zone for die head	20 zones
		Components brand	Siemens, RKC, ABB, etc.
		Note: digital control system can be optional.

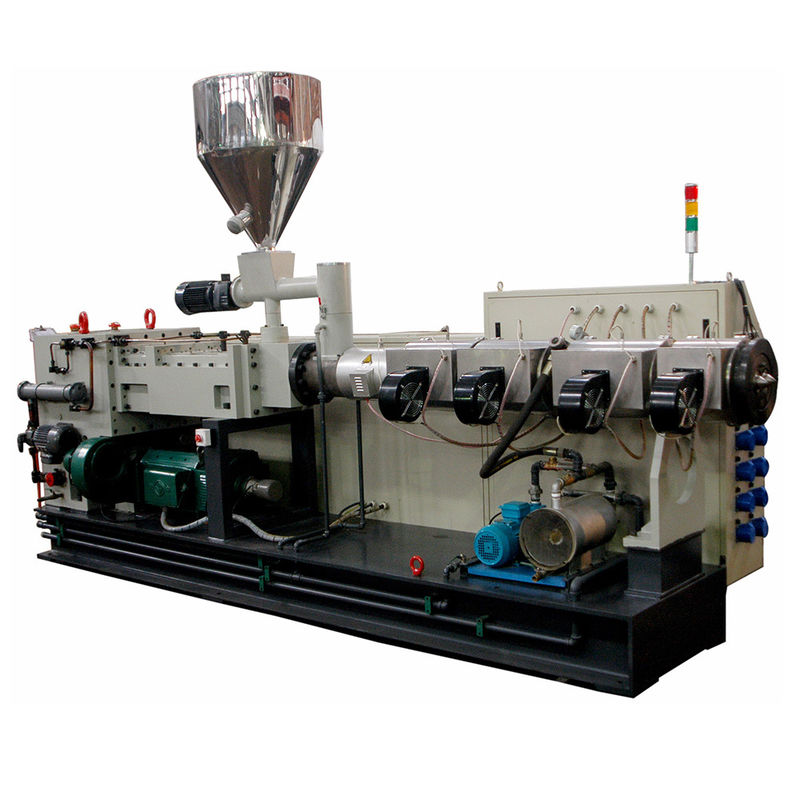

Big Output Double Screw Extruder Machine Picture:
