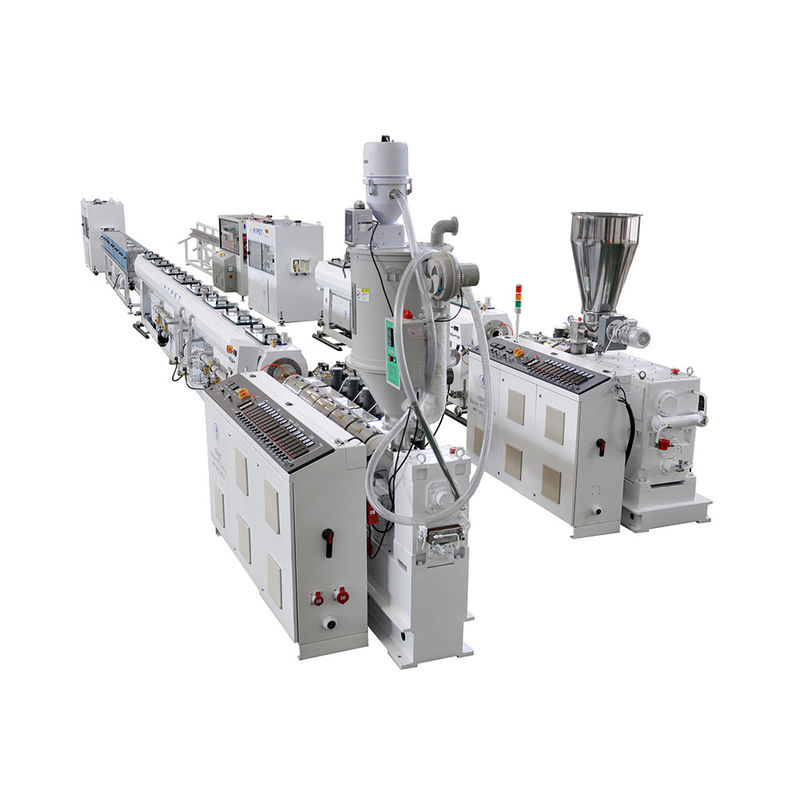

High Speed PPR Pipe Extrusion Machine / Hot And Cold Water Production Machine
High Speed PPR Pipe Extrusion Machine / Hot And Cold Water Production Machine Production line composition
- Vacuum auto loader & Hopper
- Single screw extruder HYSJ60/33
- HYSJ25/25 certification line extruder
- Die head
- Vacuum tank
- Spraying tank
- Pringter
- Haul off unit
- Cutter
- Stacker
High Speed PPR Pipe Extrusion Machine / Hot And Cold Water Production Machine HYPET unique advantages Except the same features with other supplier.
- The high-efficiency single-screw extruder with HYPET features, high output and energy saving
- Output and energy consumption, cost and output are better
- The traction is a servo control system, with a wide range of speed and long-term stability
- Efficient and stable cutting system
High Speed PPR Pipe Extrusion Machine / Hot And Cold Water Production Machine Condition of use
1. High Speed PPR Pipe Extrusion Machine / Hot And Cold Water Production Machine Technical features of whole line
| SN |
Specification |
Description |
Remark |
| 1 |
Suitable material |
PPR pellets |
|
| 2 |
Pipe diameter range |
20~63mm |
|
| 3 |
Production speed |
1.3~13 m/min |
|
| 4 |
Max. output |
210kg/h |
|
| 5 |
Test and accept |
Based on HYPET standard formula. |
|
| 6 |
Center height |
1,050±50mm |
|
| 7 |
Whole line size (L x W x H) |
38,000x1,400x 2,300 mm |
|
| 8 |
Operation direction |
From right to left |
|
| 9 |
Color of equipment |
HYPET white color |
|
| 10 |
Control of whole production |
Refer to the “configuration list”. |
|
| Note |
Extrusion capacity will be changed according the processing material and working conditions |
2. High Speed PPR Pipe Extrusion Machine / Hot And Cold Water Production Machine Circumstances condition
| SN |
Condition |
Specification |
Description |
| 1 |
Natural circumstance
condition
|
Working place |
Indoor use |
| Power source |
No dangerous area |
| Humidity |
55%~85% no condensation |
| Temperature |
0~40 ℃ |
| 2 |
Electricity source
|
Installation capacity |
150 kW |
| Actual power consumption |
100 kW |
| Power supply |
3P+N+PE |
| Voltage/Frequency |
380V/50Hz, other can be option |
| 3 |
Cooling water |
Temperature |
≤15 ℃ |
| Water pressure |
≥0.3MPa |
| Flow |
~15 m3/h |
| 4 |
Air condition |
Compressor air pressure |
≥0.6MPa |
| Flow |
~0.9 m3/min |
High Speed PPR Pipe Extrusion Machine / Hot And Cold Water Production Machine Pipe Dimension (for reference)
| No. |
OD(mm) |
Wall thickness (mm) |
| S-3.2 |
S-4 |
S-5 |
| 1 |
20 |
2.8 |
2.3 |
2.0 |
| 2 |
25 |
3.5 |
2.8 |
2.3 |
| 3 |
32 |
4.4 |
3.6 |
2.9 |
| 4 |
40 |
5.5 |
4.5 |
3.7 |
| 5 |
50 |
6.9 |
5.6 |
4.6 |
| 6 |
63 |
8.6 |
7.1 |
5.8 |
High Speed PPR Pipe Extrusion Machine / Hot And Cold Water Production Machine
High Speed PPR Pipe Extrusion Machine / Hot And Cold Water Production Machine Terms & conditions
1. High Speed PPR Pipe Extrusion Machine / Hot And Cold Water Production Machine Installation and debugging
When the machine arrives at site, the customer should install it on the appropriate position according to the specifications provided by the supplier; and then the supplier should send its engineers to the site if requirement approved,in order to instruct the customer about trial run and debugging. The customer should provide necessary conditions for trial run and provide materials for trial run, and should decide the processing conditions in trial run with consideration of the supplier's opinions.
1) The price covers the pre-commissioning of the machinery before shipment at Seller's site. The Seller is obliged to test the performance of machinery.
2) The Buyer is obliged to provide suitable space, tools and manpower for the commissioning of the order.
2. High Speed PPR Pipe Extrusion Machine / Hot And Cold Water Production Machine Terms of payment
1) T/T and L/C (irrevocable, at sight) both are acceptable.
2) 35% of the total contract value should be paid in advance, balance 65% of the total value is to be paid before shipping at the Seller’s factory.
3. High Speed PPR Pipe Extrusion Machine / Hot And Cold Water Production Machine Debugging charge
The buyer pays for the plane ticket of round-trip abroad and food and accommodation of buyer’s country during debugging. And the wage of technicians should be paid by the customer (100USD/day).
