Product Details:
|
| Items: | Electric Pvc Pipe Making Machine | Total Power: | 100kw |
|---|---|---|---|
| Production Line Length: | Around 30m | Barral Type: | HYPET Two Parts |
| Extruder: | 65/132 | Output: | 330kg/h |
| Supply Power: | 380V, 3phases | Main Motor: | 30kw |
| High Light: | Four Stations PVC Pipe production Line,PVC Pipe production Line 330kg/h Z,330kg/h pvc pipe extrusion machine |
||

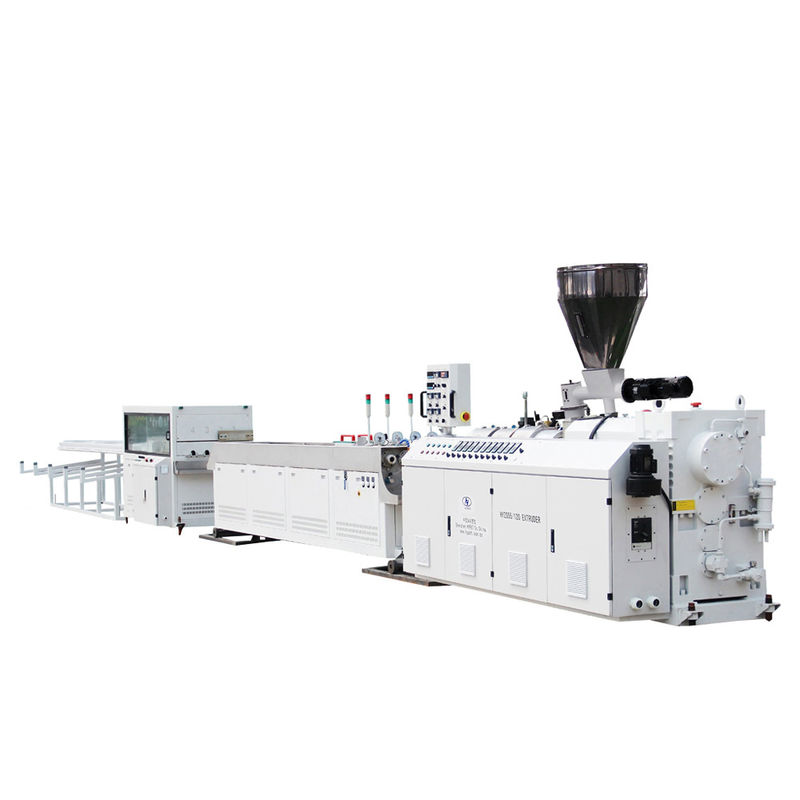

Electric Pvc Pipe Making Machine / PVC Pipe Production Line Four Stations 16-32mm
Electric Pvc Pipe Making Machine Special features:
Electric Pvc Pipe Making Machine Consists of the production line:
| SN | Electric Pvc Pipe Making Machine Parts name | Quantity |
| 1 | Conic twin screw extruder HYZS-65/132 | 1 set |
| 2 | Auto-loader for extruder in spring type. | 1 set |
| 3 | Die head for Four pipe: 16, 20, 25, 32mm, in 3 pressure grade | 1 set |
| 4 | Auto control vacuum tank in 6 m in four station | 1 set |

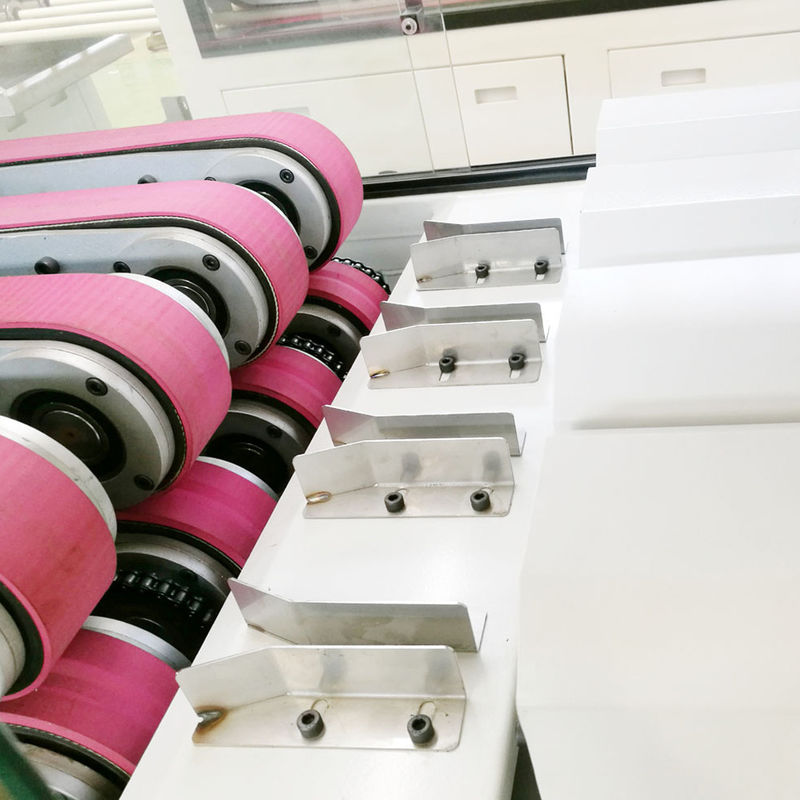

| 5 | Haul off unit in four station, is 2 claw with 4 rows type | 1 set |
| 6 | Dustless cutter in four station | 1 set |
| 7 | Stacker | 1 set |
Electric Pvc Pipe Making Machine Circumstances condition
| SN | Condition | Specification | Description |
| 1 |
Natural circumstance condition |
Working place | Indoor use |
| Power source | No dangerous area | ||
| Humidity | 55%~85% no condensation | ||
| Temperature | 0~40 ℃ | ||
| 2 |
Electricity source |
Installation capacity | 100 kW |
| Actual power consumption | 28 kW | ||
| Power supply | 3P+N+PE | ||
| Voltage/Frequency | 380V/50Hz other can be option | ||
| 3 | Cooling water | Temperature | ≤15 ℃ |
| Water pressure | ≥0.3MPa | ||
| Flow | ~15 m3/h | ||
| 4 | Air condition | Compressor air pressure | ≥0.6MPa |
| Flow | ~0.9 m3/min |
Electric Pvc Pipe Making Machine Other terms
1. Electric Pvc Pipe Making Machine Training and services
1) Instruction of field installation
2) Equipment field debugging and trial run if required by the buyer according to the rule.
3) Training on field operation and maintenance for customer's personnel.
2. Electric Pvc Pipe Making Machine Installation and debugging
When the machine arrives at site, the customer should install it on the appropriate position according to the specifications provided by the supplier; and then the supplier should send its engineers to the site if requirement approved,in order to instruct the customer about trial run and debugging. The customer should provide necessary conditions for trial run and provide materials for trial run, and should decide the processing conditions in trial run with consideration of the supplier's opinions.
3. Electric Pvc Pipe Making Machine Guarantee clause
1) Guarantee is 1 year (excluding human factor and wearing parts).
2) Under proper working conditions, 12 months from the date of completion of commissioning at the buyer's site, and should be at the latest within 14 months from the issuing date of Bill of Lading.
