Product Details:
|
| Items: | PVC Pipe Extrusion Machine | Total Power: | 70kw |
|---|---|---|---|
| Die: | 20-50 / 63-110 | Barral Type: | HYPET Two Parts |
| Extruder: | 51/110 | Output: | 140kg/h |
| Supply Power: | 380V, 3phases | Main Motor: | 22kw |
| High Light: | 20mm PVC Pipe Extrusion Line,110mm PVC Pipe Extrusion Line,140kg/H Conic Twin Screw Extruder |
||
PVC Pipe Extrusion Machine 20-110 with Twin Conic Extruder ZS51/110
PVC Pipe Extrusion Machine Special features:

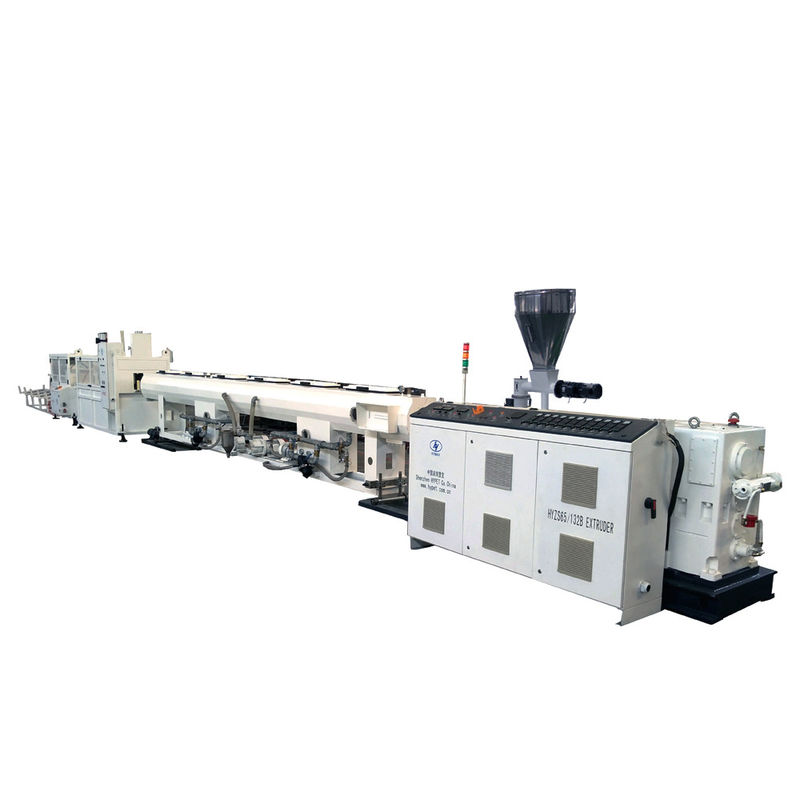

PVC Pipe Extrusion Machine Consists of the full line:
| SN | Parts name | Quantity |

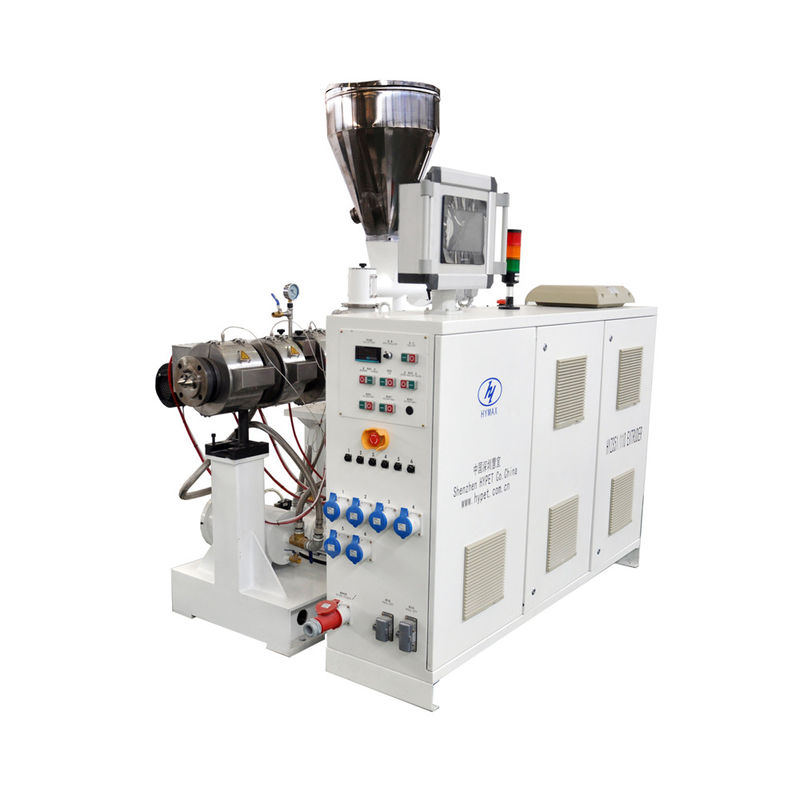

| 1 | HYZS51/110 conic twin screw extruder (High output ) | 1 set |
| 2 | Auto loader in spring type for the extruder | 1 set |
| 3 | Die head 1 from 20-50mm in 3 pressure grade | 1 set |
| 4 | Die head 2 from 63-110mm in 3 pressure grade | 1 set |
| 5 | Vacuum tank in 6m | 1 set |
| 6 | Haul off with 2 claw type | 1 set |
| 7 | Dustless cutter | 1 set |
| 8 | Stacker | 1 set |
PVC Pipe Extrusion Machine Circumstances condition
| SN | Condition | Specification | Description |
| 1 | Natural circumstance condition | Working place | Indoor use |
| Power source | No dangerous area | ||
| Humidity | 55%~85% no condensation | ||
| Temperature | 0~40 ℃ | ||
| 2 | Electricity source | Installation capacity | 70 kW |
| Actual power consumption | 28 kW | ||
| Power supply | 3P+N+PE | ||
| Voltage/Frequency | 380V/50Hz other can be option | ||
| 3 | Cooling water | Temperature | ≤15 ℃ |
| Water pressure | ≥0.3MPa | ||
| Flow | ~15 m3/h | ||
| 4 | Air condition | Compressor air pressure | ≥0.6MPa |
| Flow | ~0.9 m3/min |
PVC Pipe Extrusion Machine Technical features of whole line
| SN | Specification | Description | Remark |
| 1 | Suitable material | PVC powder | |
| 2 | Pipe diameter range | Ø20-Ø110mm. (3/4”~4”) | |
| 3 | Production speed | 1.5 ~ 15 m/min | |
| 4 | Max. output | 140kg/h | |
| 5 | Test and accept | Based on HYPET standard formula. | |
| 6 | Center height | 1,000mm | |
| 7 | Whole line size (L x W x H) | 21,000 x 1,200 x 2,450mm | |
| 8 | Operation direction | From right to left | |
| 9 | Color of equipment | HYPET white color | |
| 10 | Control of whole production | Refer to the “configuration list”. | |
| Note | Extrusion capacity will be changed according the processing material and working conditions | ||
Note: HYPET remains the right to improve the technology of the line, if there’s any modification of the specification, customer will be not informed.
PVC Pipe Extrusion Machine Other terms
1.PVC Pipe Extrusion Machine Installation and debugging
When the machine arrives at site, the customer should install it on the appropriate position according to the specifications provided by the supplier; and then the supplier should send its engineers to the site if requirement approved,in order to instruct the customer about trial run and debugging. The customer should provide necessary conditions for trial run and provide materials for trial run, and should decide the processing conditions in trial run with consideration of the supplier's opinions.
2. PVC Pipe Extrusion Machine Guarantee clause
1) Guarantee is 1 year (excluding human factor and wearing parts).
2) Under proper working conditions, 12 months from the date of completion of commissioning at the buyer's site, and should be at the latest within 14 months from the issuing date of Bill of Lading.
